Microprocessor Supervisory Circuits with Manual Reset Input,SGM811RXKA4TR-Replace-ADM811RARTZREEL7.
SGM811-RXKA4
SGM811-RXKA4.pdf
SGM811-RXKA4.pdfFEATURES
? Superior Upgrade for MAX811/MAX812
and
ADM811/ADM812
? Ultra-Low Power Consumption < 1μA (TYP)
? Fully Specified over Temperature
? Precision Voltage Monitor: 3V and 3.3V Options
? Reset Assertion Down to 1V VCC
? 200ms (TYP) Reset Pulse Width
Logic Low nRESET Output (SGM811B)
Logic High RESET Output (SGM812B)
? Manual Reset Input
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-143 Package

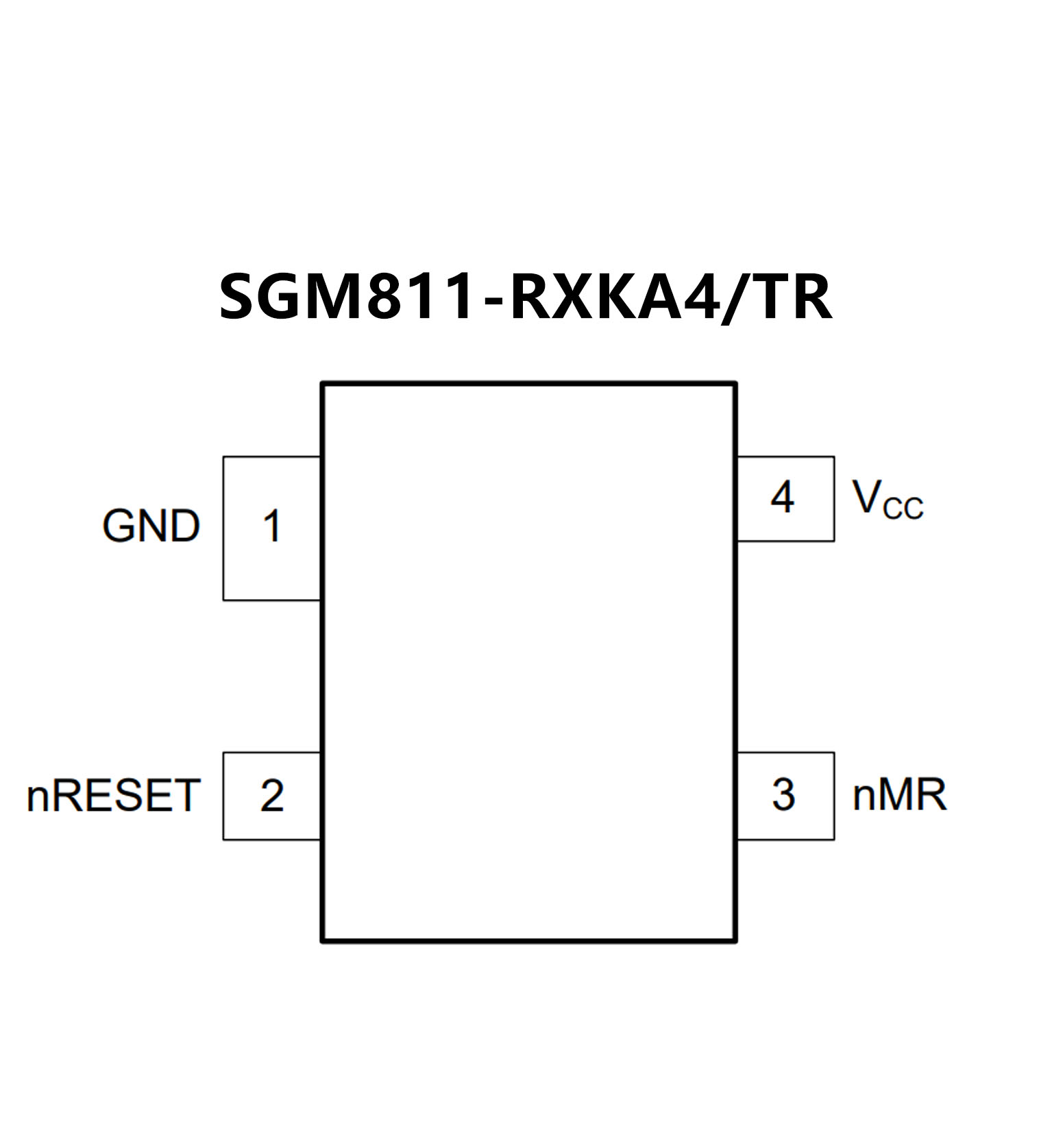

PIN CONFIGUTION
優勢替代
FEATURES
? Superior upgrade for MAX811/MAX812
? Specified over temperature
? Low power consumption: 5 μA typical
? Precision voltage monitor: 2.5 V, 3 V, 3.3 V, 5 V options
? Reset assertion down to 1 VCC
? Power-on reset: 140 ms minimum
? Logic low RESET output (ADM811)
? Logic high RESET output (ADM812)
? Built-in manual reset

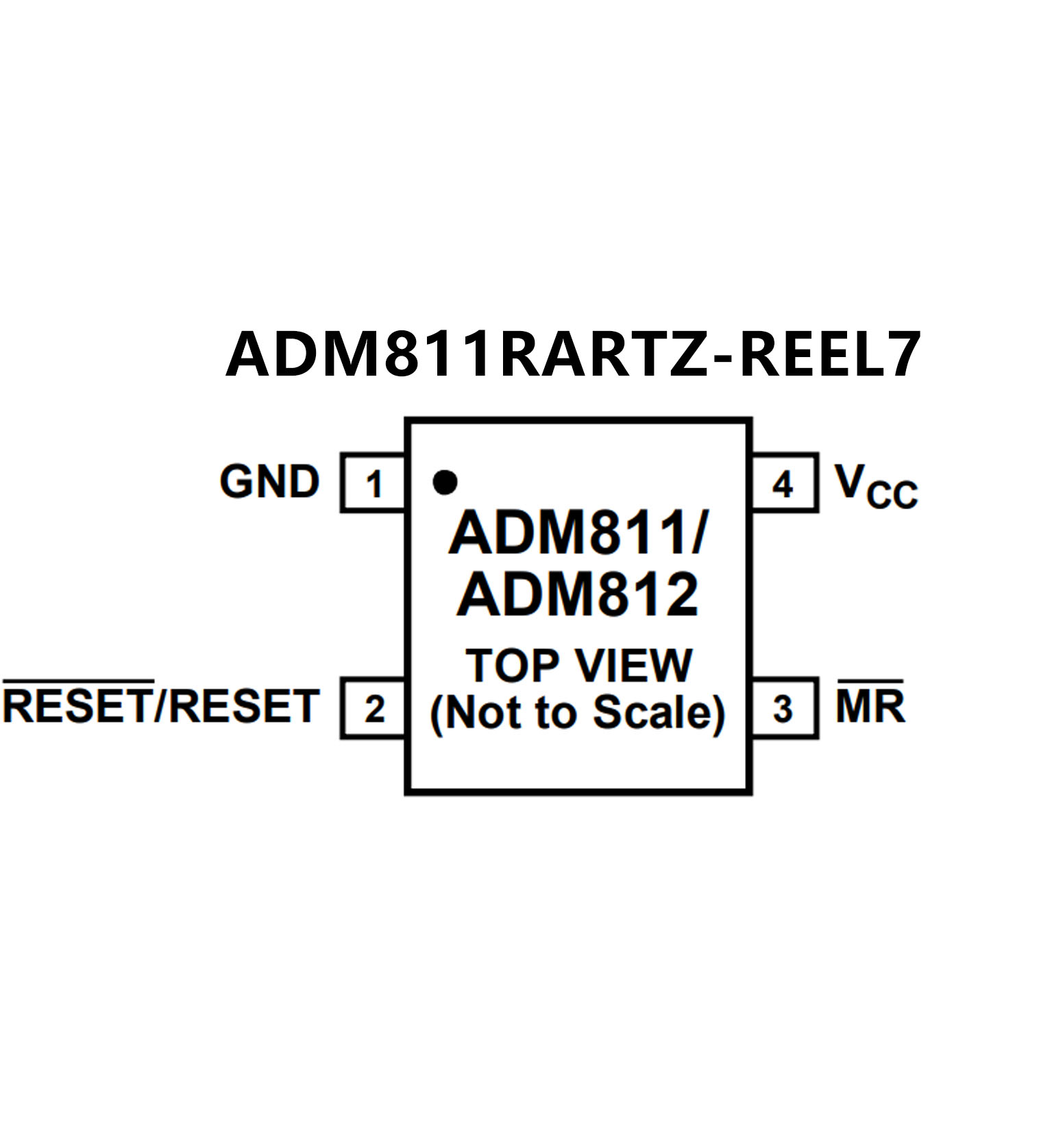

PIN CONFIGUTION
