Microprocessor Supervisory Circuits with Manual Reset Input, SGM811-RXKA4/TR P2P UM805RE.
SGM811-RXKA4/TR
SGM811-RXKA4/TR.pdf
SGM811-RXKA4/TR.pdfFEATURES
? Superior Upgrade for MAX811/MAX812
and ADM811/ADM812
? Full Specified over Temperature
? Low Power Consumption: 13μA (TYP)
? Precision Voltage Monitor: 1.8V,
2.5V, 3V, 3.3V and 5V Options
? Reset Assertion Down to 1V VCC
? 150ms (MIN) Power-On Reset
Logic Low nRESET Output (SGM811)
Logic High RESET Output (SGM812)
? Manual Reset Input
? Available in Green SOT-143 and SOT-23-5 Packages

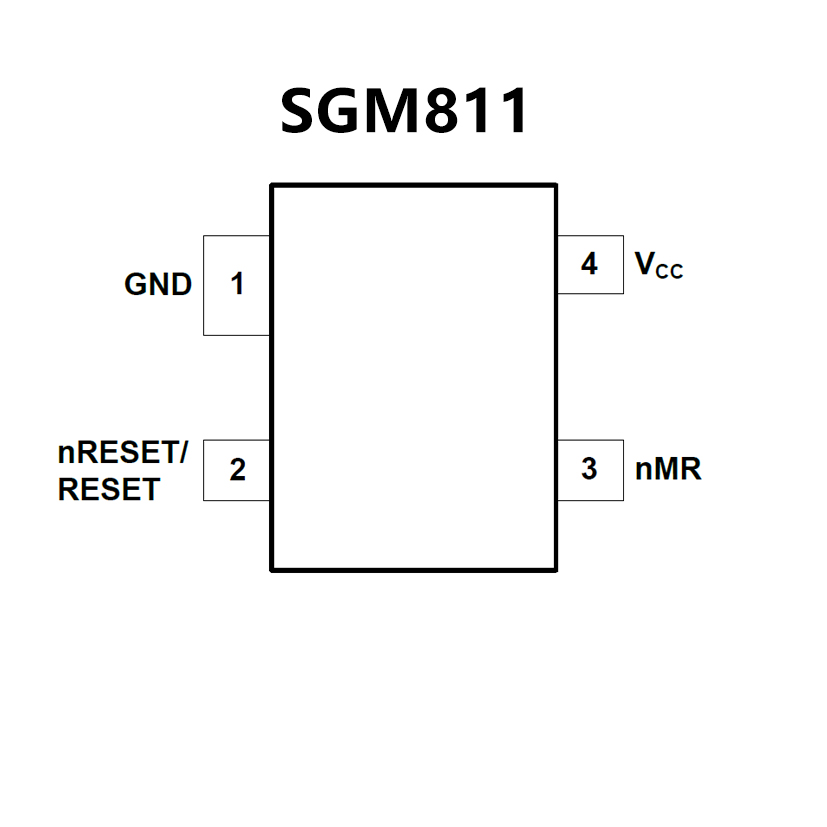

PIN CONFIGUTION
優勢替代
FEATURES
? Computers
? Controllers
? Portable/Battery-Powered Equipments
? Intelligent Instruments
? Critical μP and μC Power Monitoring

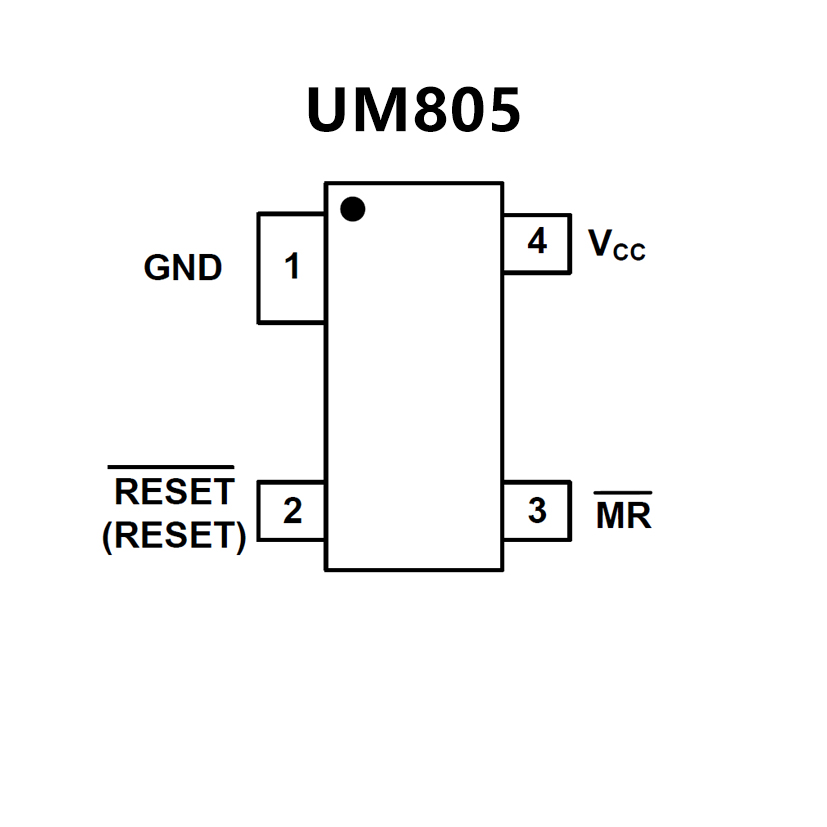

PIN CONFIGUTION
