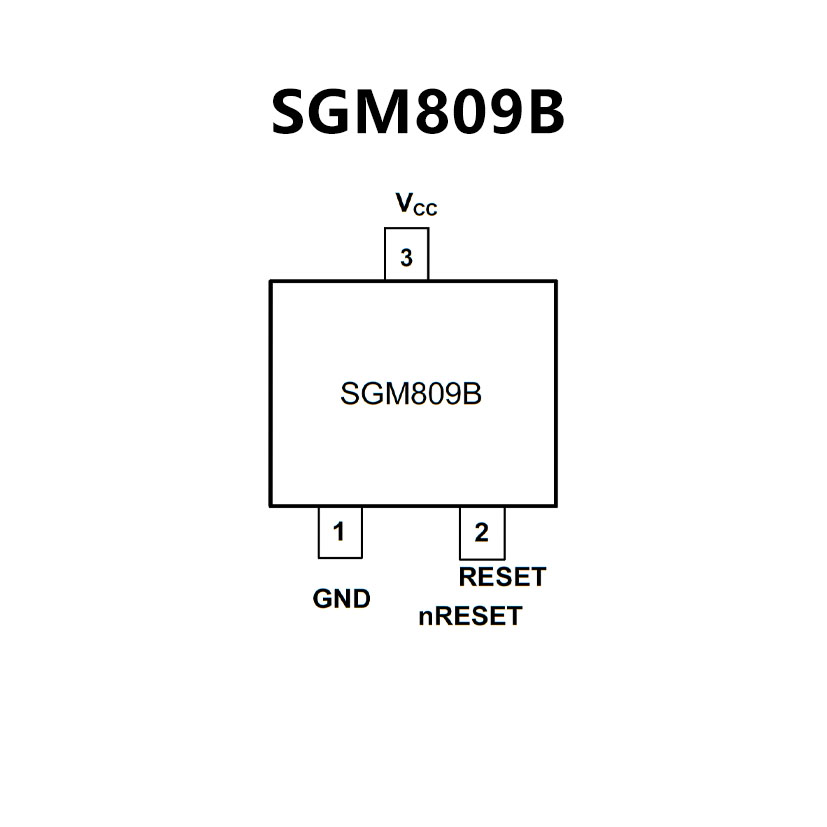

SGM809B-2.93.pdf? Precision Voltage Monitor: 3V, 3.3V, 5V Options
? Superior Upgrade for MAX803/MAX809/MAX810
and ADM803/ADM809/ADM810
? Fully Specified over Temperature
? VCC Transient Immunity
? Low Power Consumption: 240nA (TYP)
? Reset Assertion Down to 1V VCC
? 330ms Power-On Reset (TYP)
Open-Drain nRESET Output (SGM803B)
Push-Pull nRESET Output (SGM809B)
Push-Pull RESET Output (SGM810B)
? -40℃ to +125℃ Operating Temperature Range
Small Packaging
SGM803B Available in SOT-23-3 and SOT-23
SGM809B Available in SOT-23-3 and SOT-23
SGM810B Available in SOT-23-3 and SOT-23

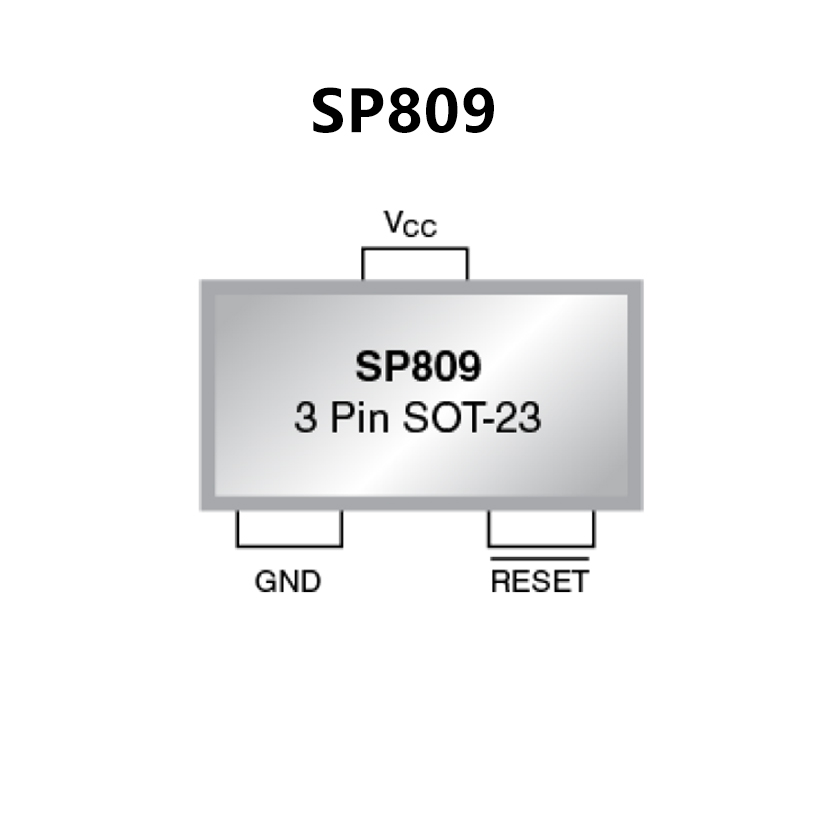

?Ultra Low Supply Current 1μA (typ)
?Guaranteed Reset valid to VCC = 0.9V
?140ms Power-On Reset Pulse Width
?Internally Fixed Threshold2.3V,
2.6V, 2.9V, 3.1V, 4.4V, 4.6V
?1.5% Voltage Threshold Tolerance
?3 Pin SOT-23 Package
