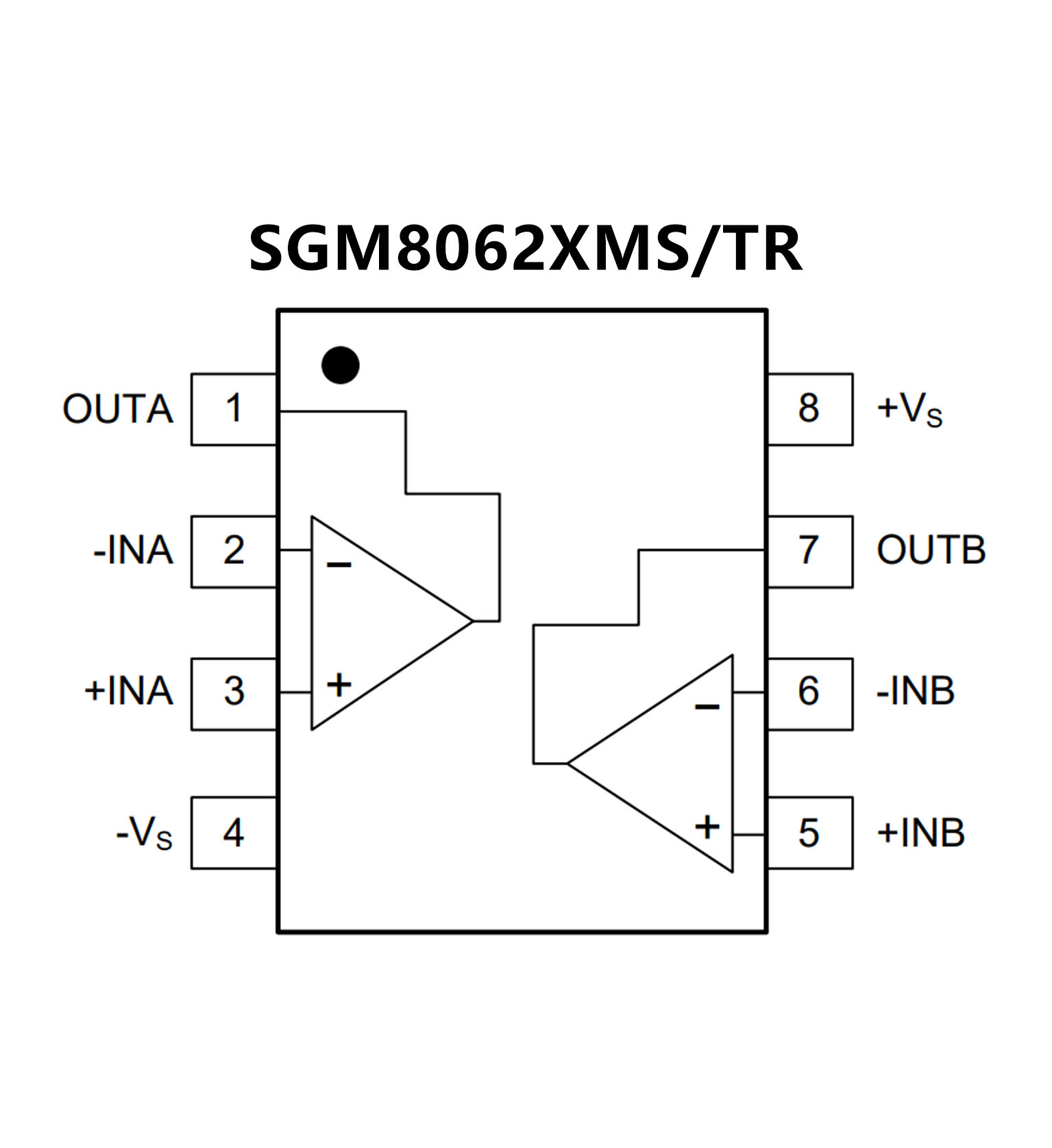

SGM8062.pdf? Low Cost
? Rail-to-Rail Output
? Input Offset Voltage: 8mV (MAX)
? High Speed:500MHz, -3dB Bandwidth (G = +1) 420V/μs,
Slew Rate16ns Settling Time to 0.1% with 2V Step
? Supply Voltage Range: 2.5V to 5.5V
? Input Voltage Range: -0.2V to 3.8V with VS = 5V
? Excellent Video Specs (RL = 150Ω, G = +2):
Gain Flatness: 0.1dB to 80MHzDiff Gain:
0.015%, Diff Phase: 0.05 Degree
? Low Supply Current:8.2mA/Amplifier
(TYP)75μA Shutdown Current for SGM8063
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:SGM8061 Available in Green
SOT-23-5 andSOIC-8 PackagesSGM8062 Available
in Green MSOP-8 andSOIC-8 PackagesSGM8063
Available in Green SOT-23-6 andSOIC-8 Packages
? Qualified for automotive applications

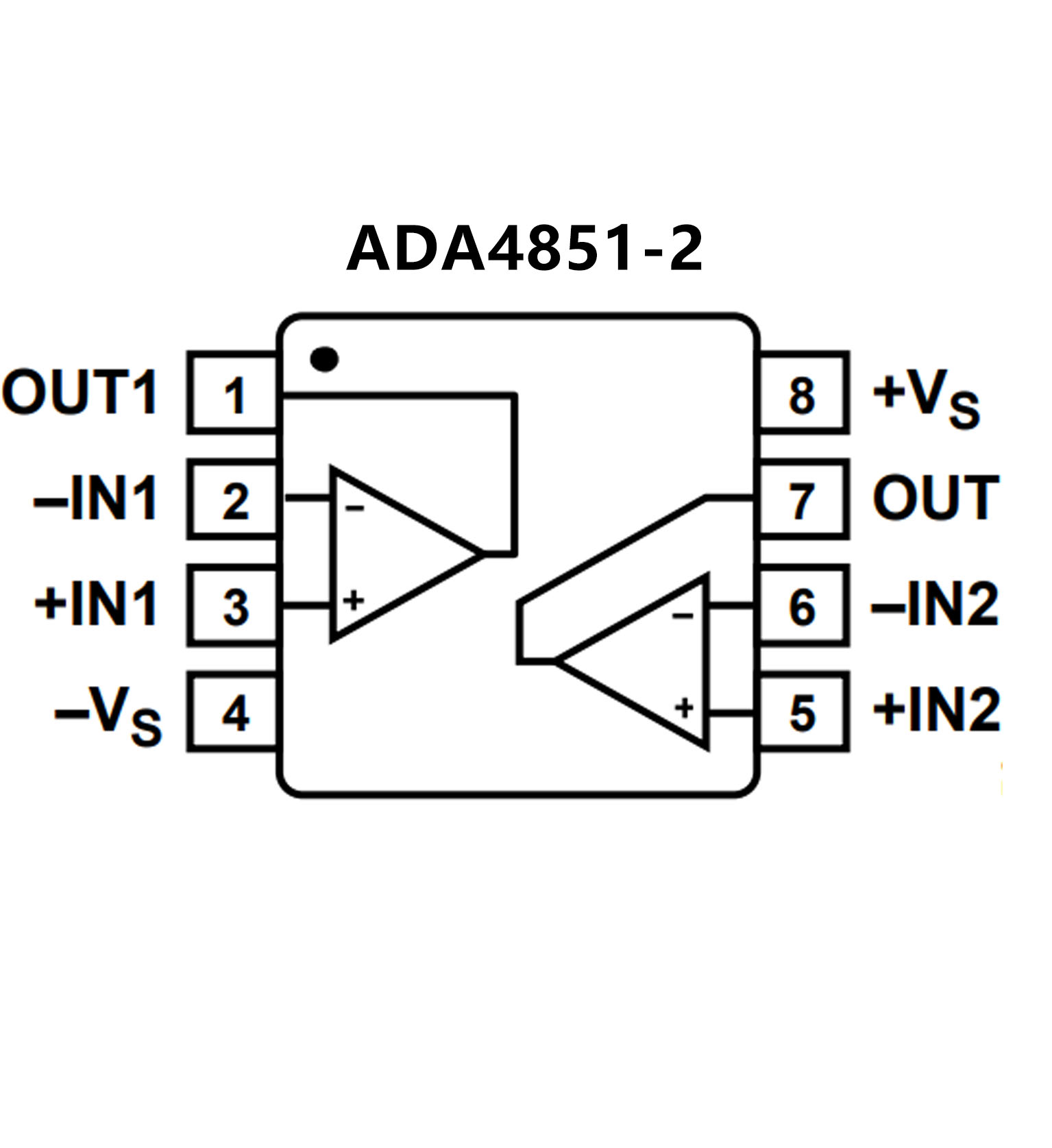

? High speed
130 MHz, ?3 dB bandwidth
375 V/μs slew rate
55 ns settling time to 0.1%
? Excellent video specifications
0.1 dB flatness: 11 MHz
Differential gain: 0.08%
Differential phase: 0.09°
? Fully specified at +3 V, +5 V, and ±5 V supplies
? Rail-to-rail output Output
? swings to within 60 mV of either rail
? Low voltage offset: 0.6 mV
? Wide supply range: 2.7 V to 12 V
? Low power: 2.5 mA per amplifier
? Power-down mode
? Available in space-saving packages
6-lead SOT-23, 8-lead MSOP, and 14-lead TSSOP
