Nano power operational Amplifier,SGM8040 1-Replace MCP6031.
SGM8040-1
SGM8040-1.pdf
SGM8040-1.pdfFEATURES
? Low Quiescent Current: 600nA (TYP)
? Rail-to-Rail Input and Output
? Gain-Bandwidth Product: 12kHz at VS = 5V (TYP)
? Wide Supply Voltage Range: 1.4V to 5.5V
? Unity Gain Stable
? Low Offset Voltage: 80μV (TYP)
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5 Package

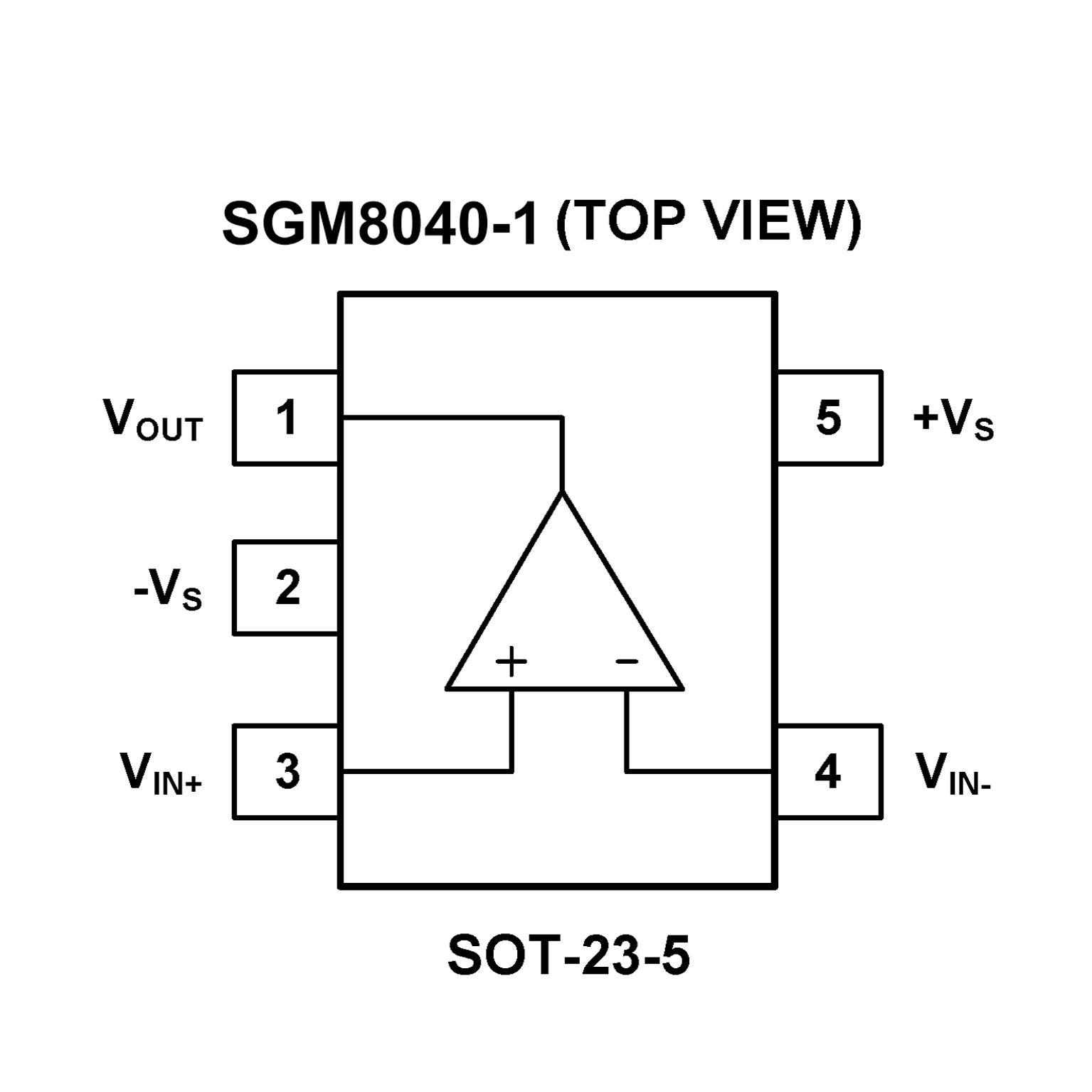

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Rail-to-Rail Input and Output
? Low Offset Voltage: ±150 μV (maximum)
? Ultra Low Quiescent Current: 0.9 μA (typical)
? Wide Power Supply Voltage: 1.8V to 5.5V
? Gain Bandwidth Product: 10 kHz (typical)
? Unity Gain Stable
? Chip Select (CS) capability: MCP6033
? Extended Temperature Range:-40°C to +125°C
? No Phase Reversal

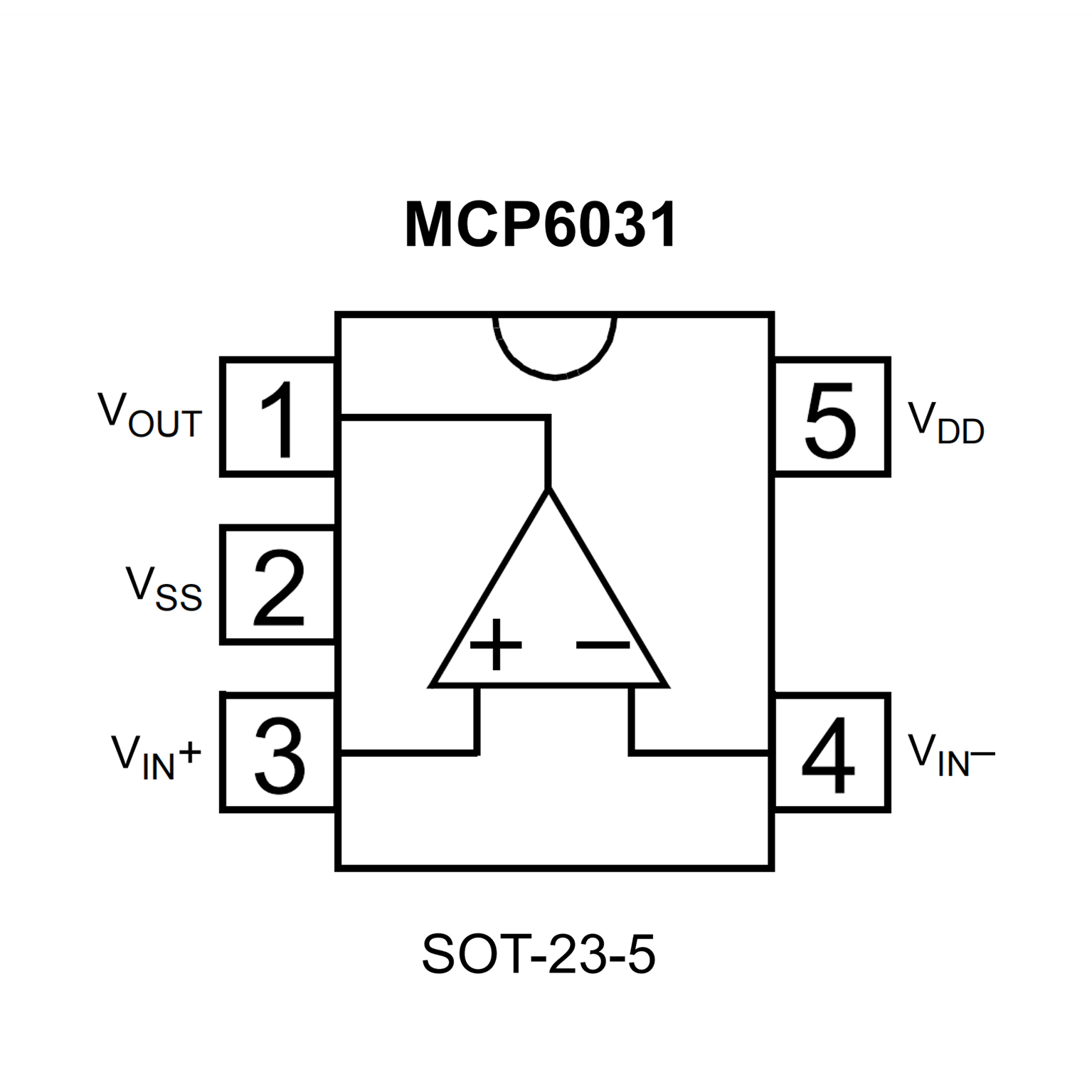

PIN CONFIGUTION
