Small Logic Two-Input OR Gate,SGM7SZ32 Replace SN74AHC1G32.
SGM7SZ32
SGM7SZ32.pdf
SGM7SZ32.pdfFEATURES
? Ultra-High Speed: tPD = 3.8ns (TYP) into 50pF
at VCC = 3.3V
? High Output Drive: ±24mA at VCC = 3V
? Broad VCC Operating Range: 1.65V to 5.5V
? Matches Performance of LCX Operated at VCC = 3.3V
? Power Down High-Impedance Inputs/Output
? Over-Voltage Tolerance Inputs Facilitate 5V to 3V
Translation
? Available in Green SOT-23-5 and SC70-5 Packages

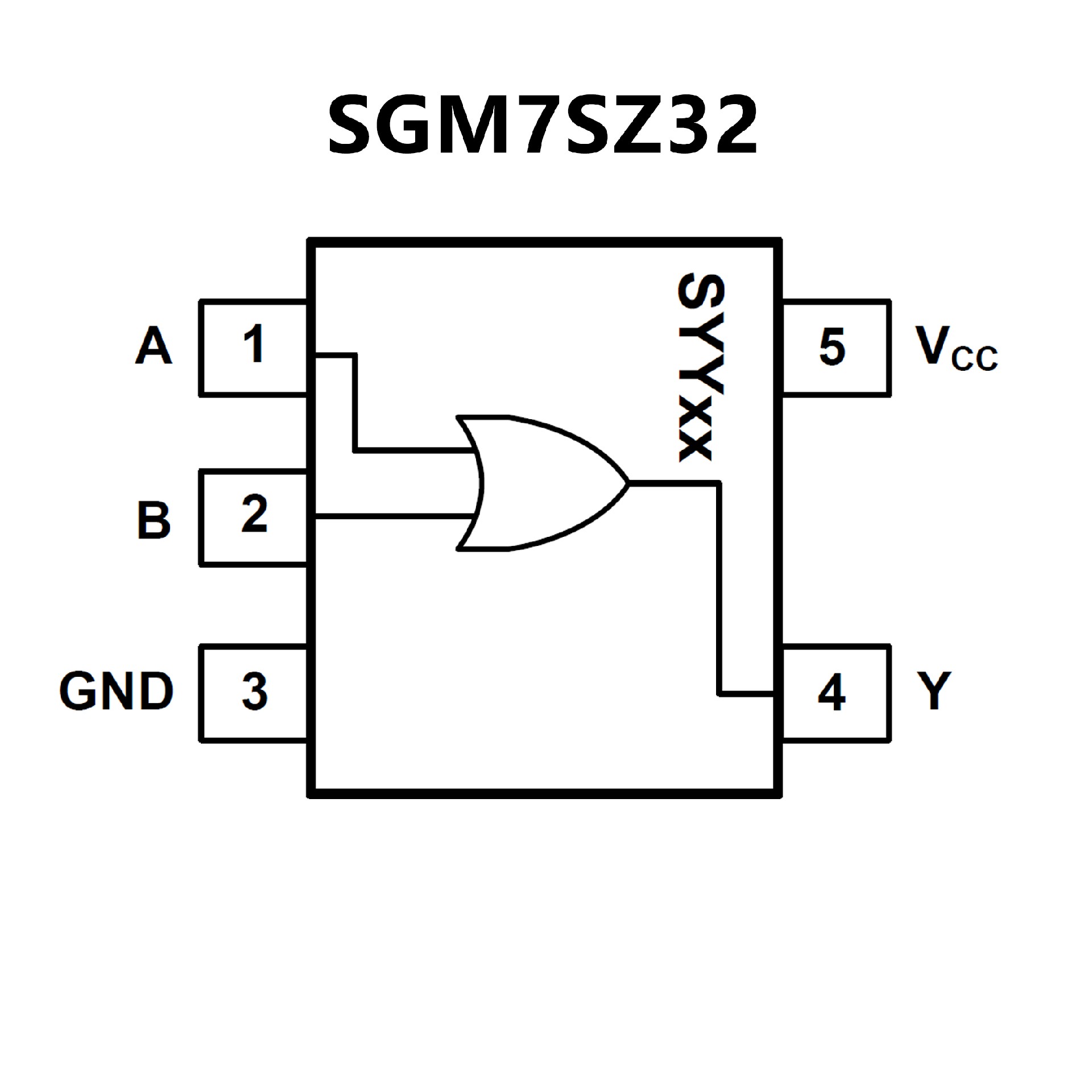

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Operating Range of 2 V to 5.5 V
? Max tpd of 6.5 ns at 5 V
? Low Power Consumption, 10-μA Max ICC
? ±8-mA Output Drive at 5 V
? Schmitt-Trigger Action at All Inputs Makes the
Circuit Tolerant for Slower Input Rise and Fall
Time
? Latch-Up Performance Exceeds 250 mA Per
JESD 17

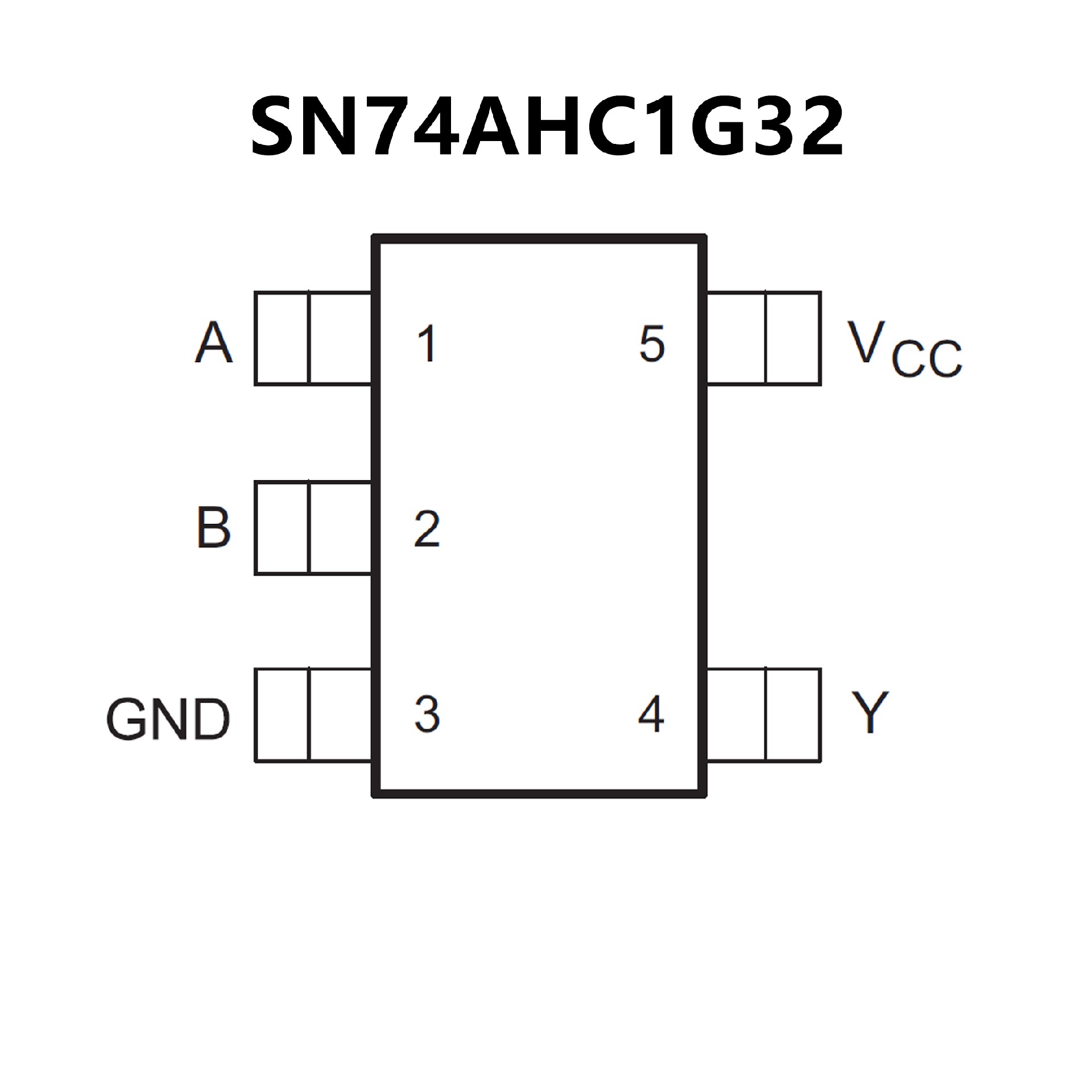

PIN CONFIGUTION
