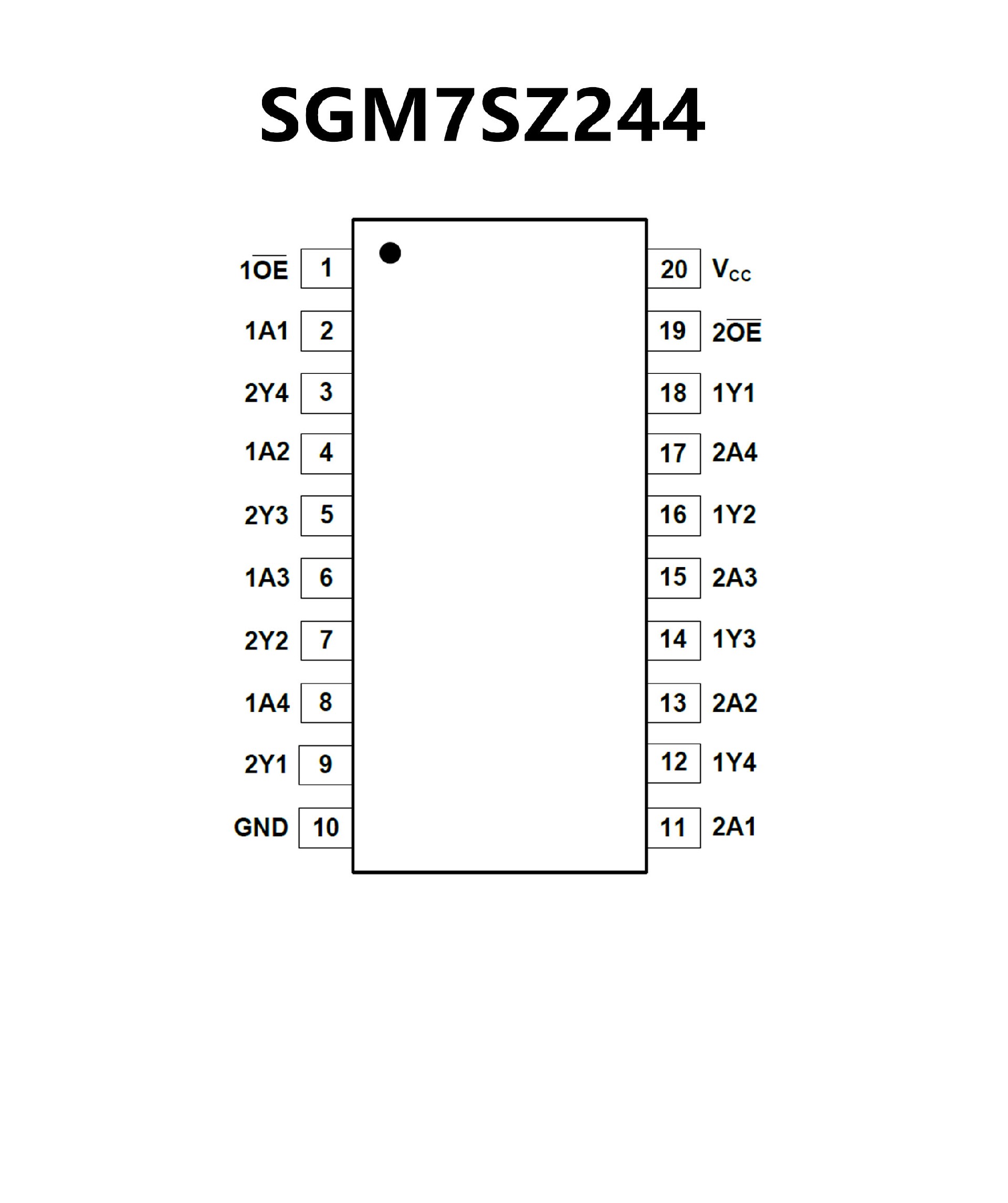

SGM7SZ244.pdf? Wide Operating Voltage Range: 1.8V to 5.0V
? High-Current Outputs Drive Up to 15 LSTTLLoads
? 3-State Outputs Drive Bus Lines or
BufferMemory Address Registers
? Low Power Consumption, ICC: 25μA (MAX)
? Typical tPD = 8.9ns at 5.0V
? ±20mA Output Drive at 5.0V
? Low Input Current: ±8μA (MAX)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-20 Package

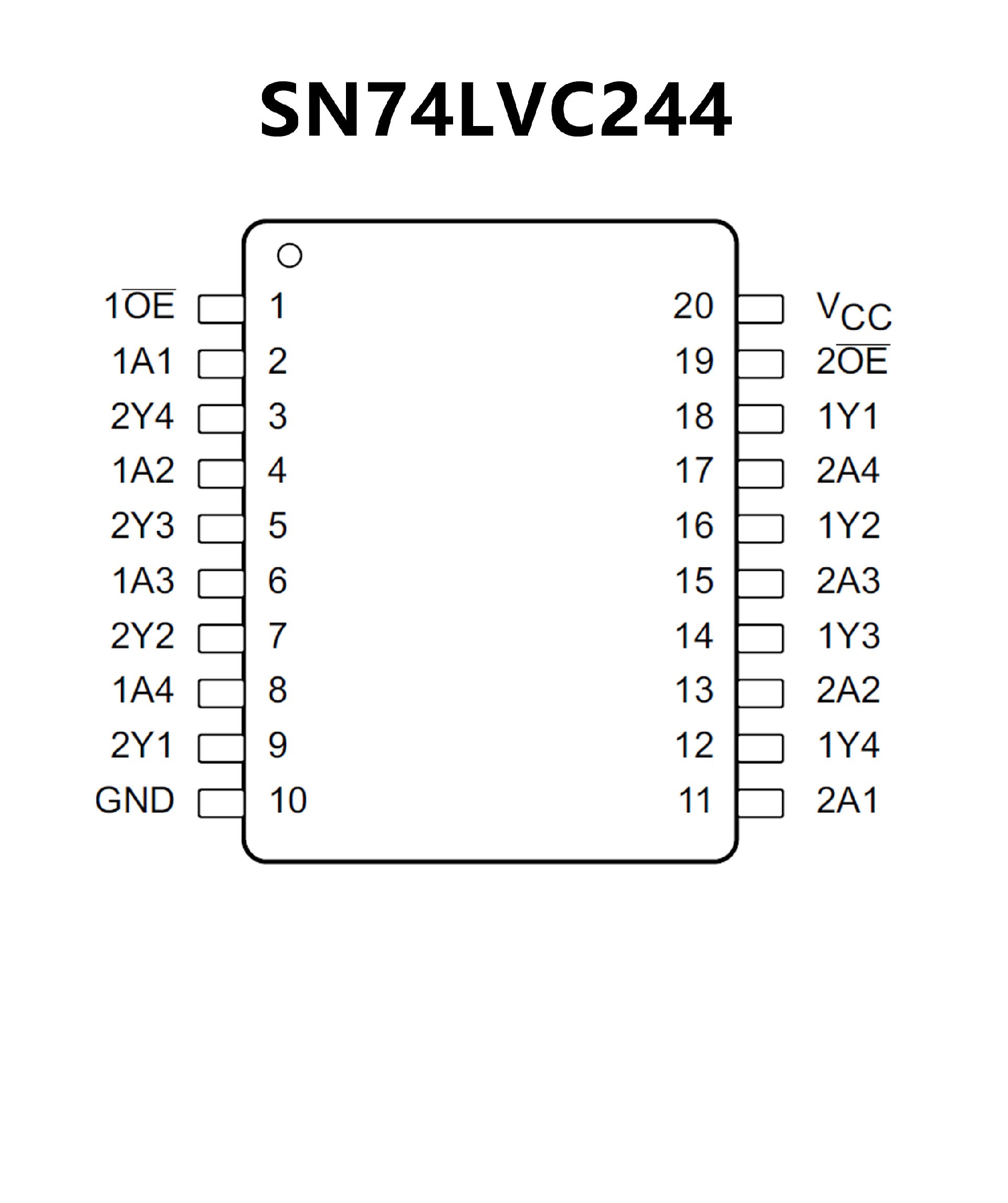

? Operates From 1.65 V to 3.6 V
? Inputs Accept Voltages to 5.5 V
? Specified From
40°C to +85°C and 40°C to +125°C
? Maximum tpd of 5.9 ns at 3.3 V
? Typical VOLP (Output Ground Bounce)
< 0.8 V at VCC = 3.3 V, TA = 25°C
? Typical VOHV (Output VOH Undershoot)
> 2 V at VCC = 3.3 V, TA = 25°C
? Supports Mixed-Mode Signal Operation on
All Ports (5-V Input or Output Voltage With3.3-V VCC)
? Ioff Supports Live Insertion, Partial-Power-DownMode,
and Back-Drive Protection
? Can Be Used as a Down Translator to Translate
Inputs From a Maximum of 5.5 V Downto the VCC Level
? Available in Ultra Small Logic QFN
Package (0.5mm Maximum Height)
? Latch-Up Performance Exceeds 250 mA PerJESD 17
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model
1000-V Charged-Device Model
