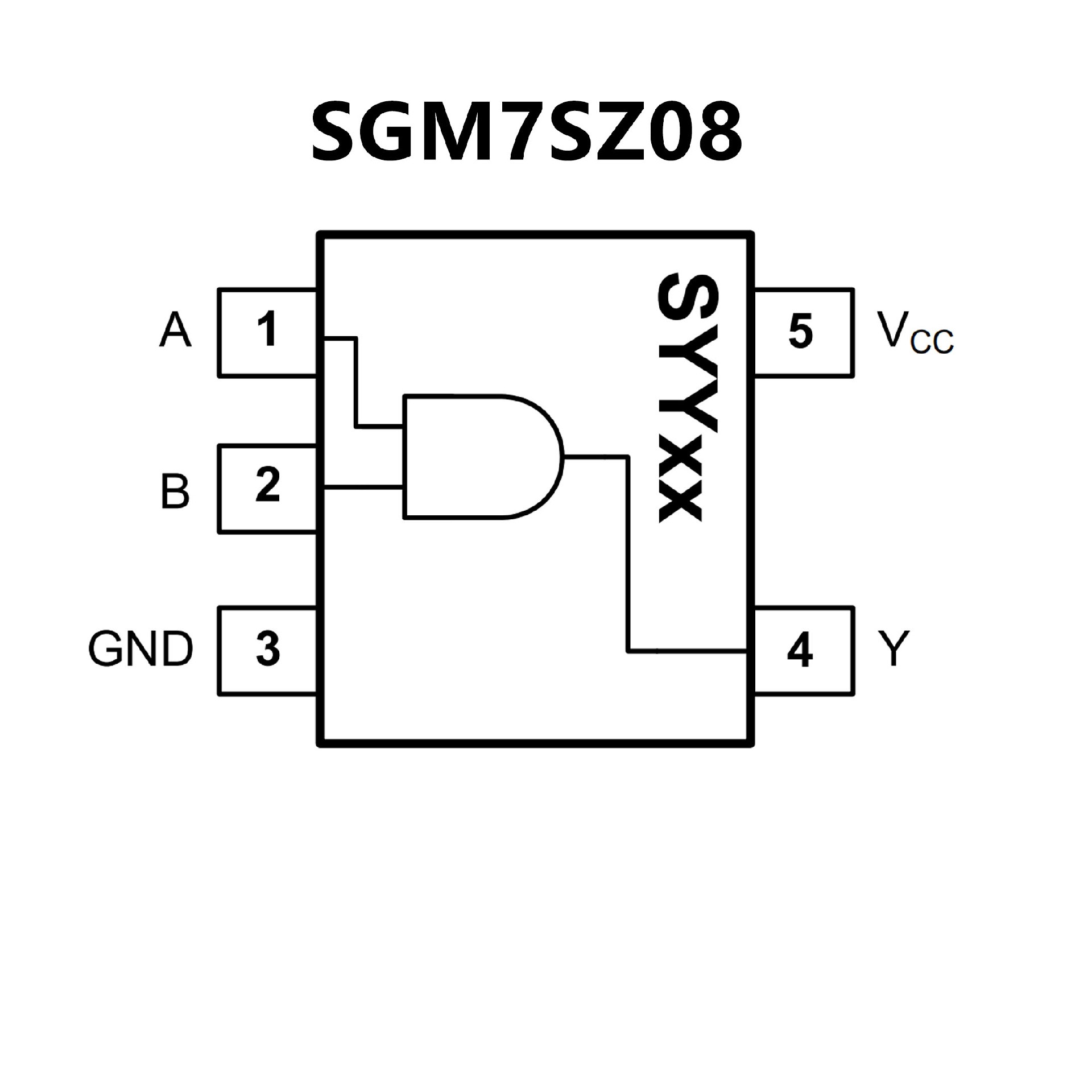

SGM7SZ08.pdf? Ultra-High Speed: tPD = 3.6ns (TYP) into 50pF
at VCC = 3.3V
? High Output Drive: ±24mA at VCC = 3V
? Broad VCC Operating Range: 1.65V to 5.5V
? Matches Performance of LCX Operated at VCC = 3.3V
? Power Down High-Impedance Inputs/Output
? Over-Voltage Tolerant Inputs Facilitate 5V to 3V Translation
? Available in Green SOT-23-5, SC70-5, XTDFN-1×1-6L and
UTDFN-1.45×1-6L Packages

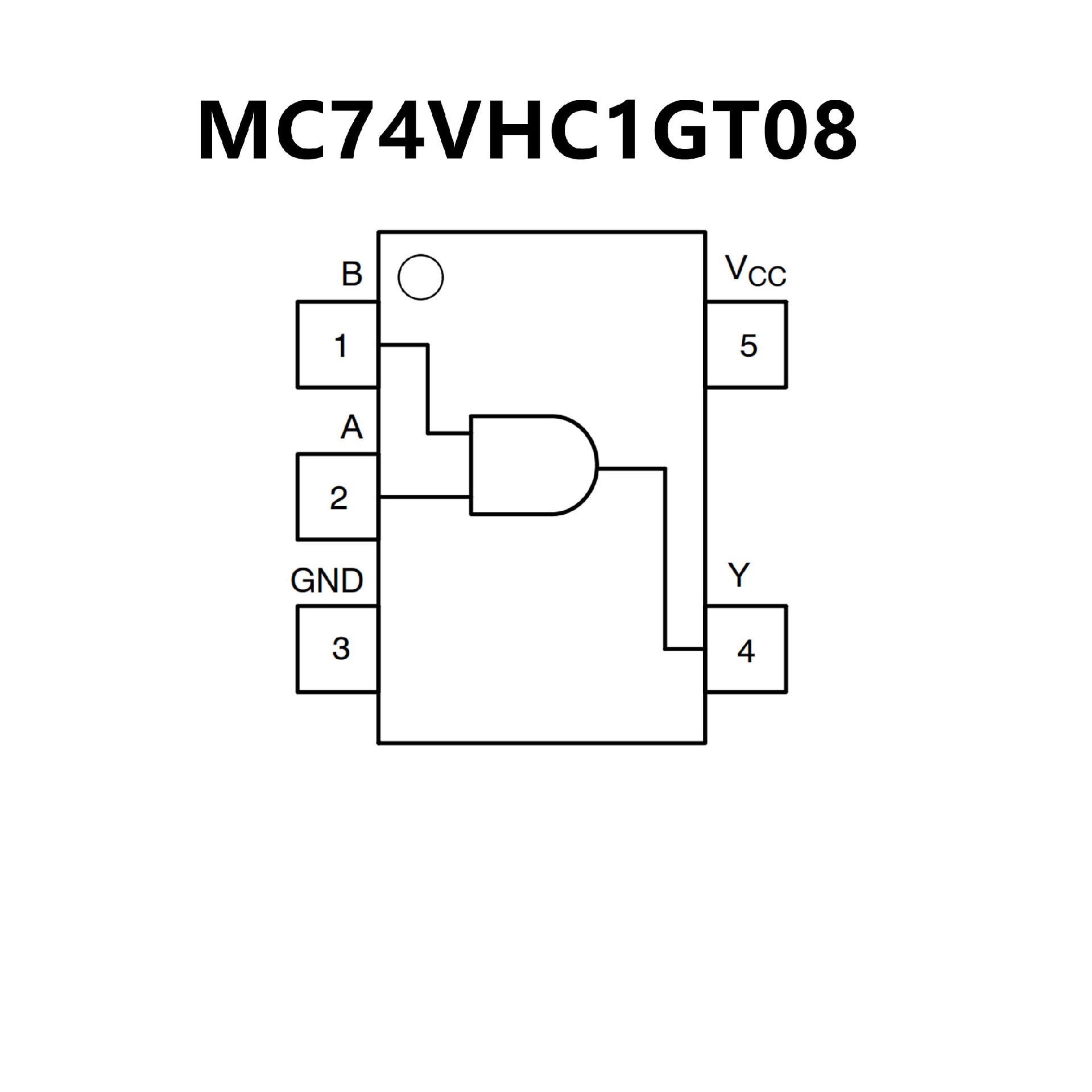

? Designed for 2.0 V to 5.5 V VCC Operation
? 3.5 ns tPD at 5 V (typ)
? Inputs/Outputs Over?Voltage Tolerant up to 5.5 V
? IOFF Supports Partial Power Down Protection
? Source/Sink 8 mA at 3.0 V
? Available in SC?88A, SC?74A, TSOP?5,
SOT?953 and UDFN6 Packages
? Chip Complexity < 100 FETs
? NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements;
AEC?Q100 Qualified and PPAP Capable
? These Devices are Pb?Free, Halogen Free/BFR
Free and are RoHS Compliant
