6GHz, 5V, 2:1(SPDT) 10 Channel MIPI Switch with 1.8V Logic Support, SGM7302 P2P TMUX646.
SGM7302
SGM7302.pdf
SGM7302.pdfFEATURES
? Supply Voltage Range: 1.5V to 5.5V
? Low RON: 5Ω (TYP)
? High Bandwidth: 6GHz
? Ultra Low Crosstalk: -40dB
? Low Power Disable Mode
? 1.2V Logic Compatible
? Bidirectional Signal Path
? Available in a Green FOCSP-2.43×2.43-36B Package

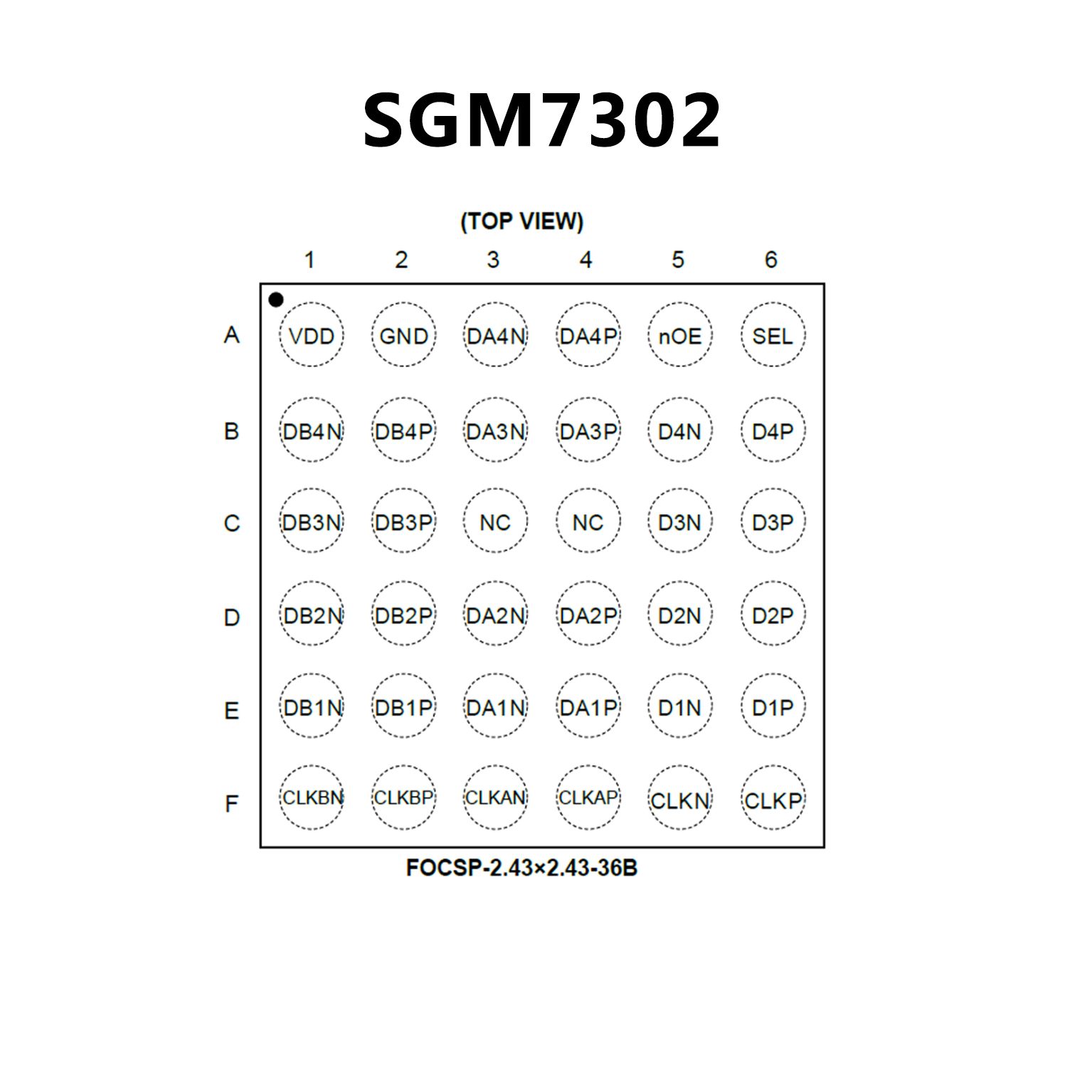

PIN CONFIGUTION
優勢替代
FEATURES
? Supply range of 1.5 V to 5.5 V
? 10-Channel 2:1 bidirectional switch
? Supports MIPI CSI/DSI, SATA,
LVDS, RGMII, DDR, ethernet interfaces
? Powered-off protection:
I/Os Hi-Z when VDD = 0 V
? Low RON: 6-Ω typical
? High bandwidth : 6 GHz
? Ultra low crosstalk: -40 dB
? Low power disable mode
? 1.2 V logic compatible
? Bidirectional signal path
? ESD protection:
6-kV human body model (HBM)
2-kV human body model (CDM)

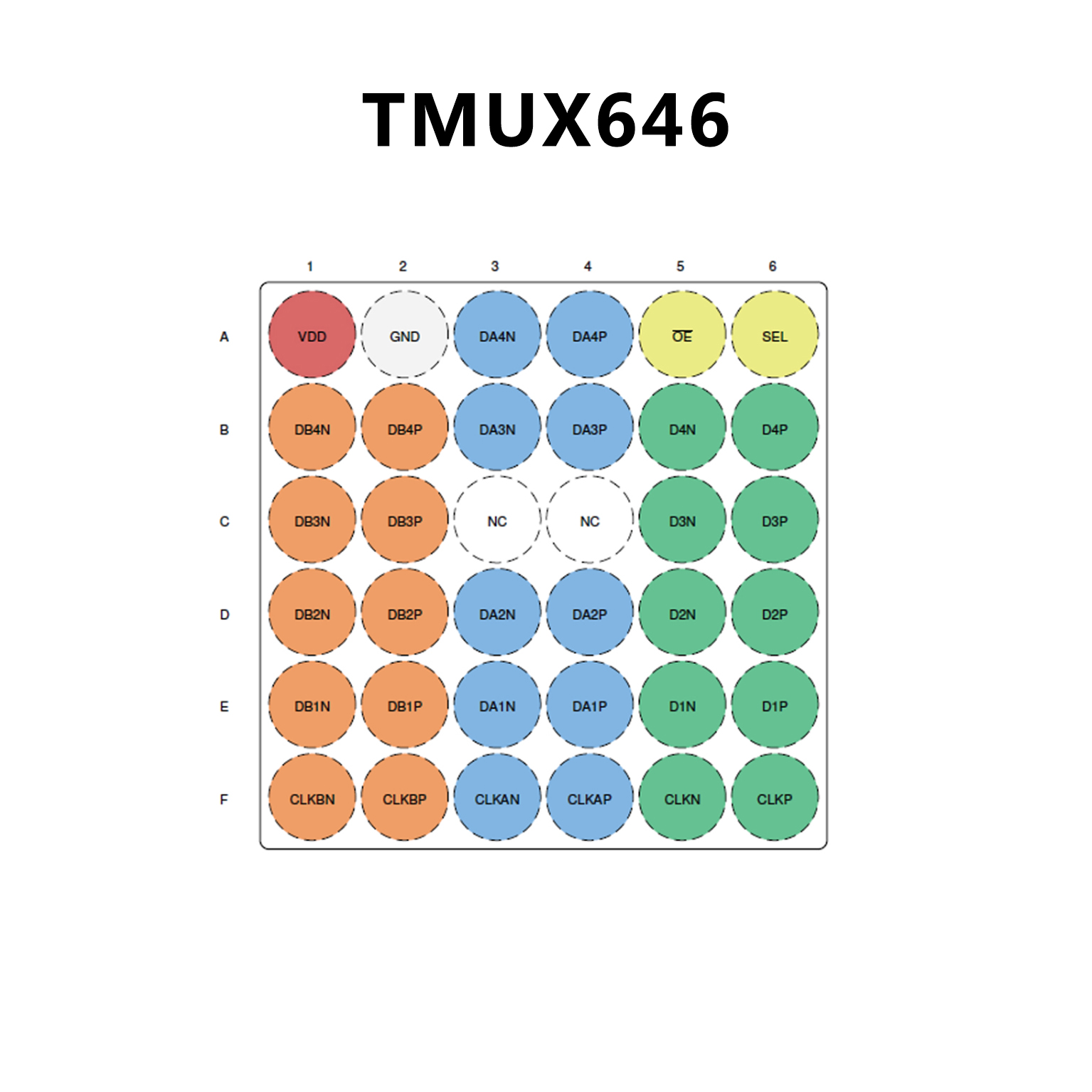

PIN CONFIGUTION
