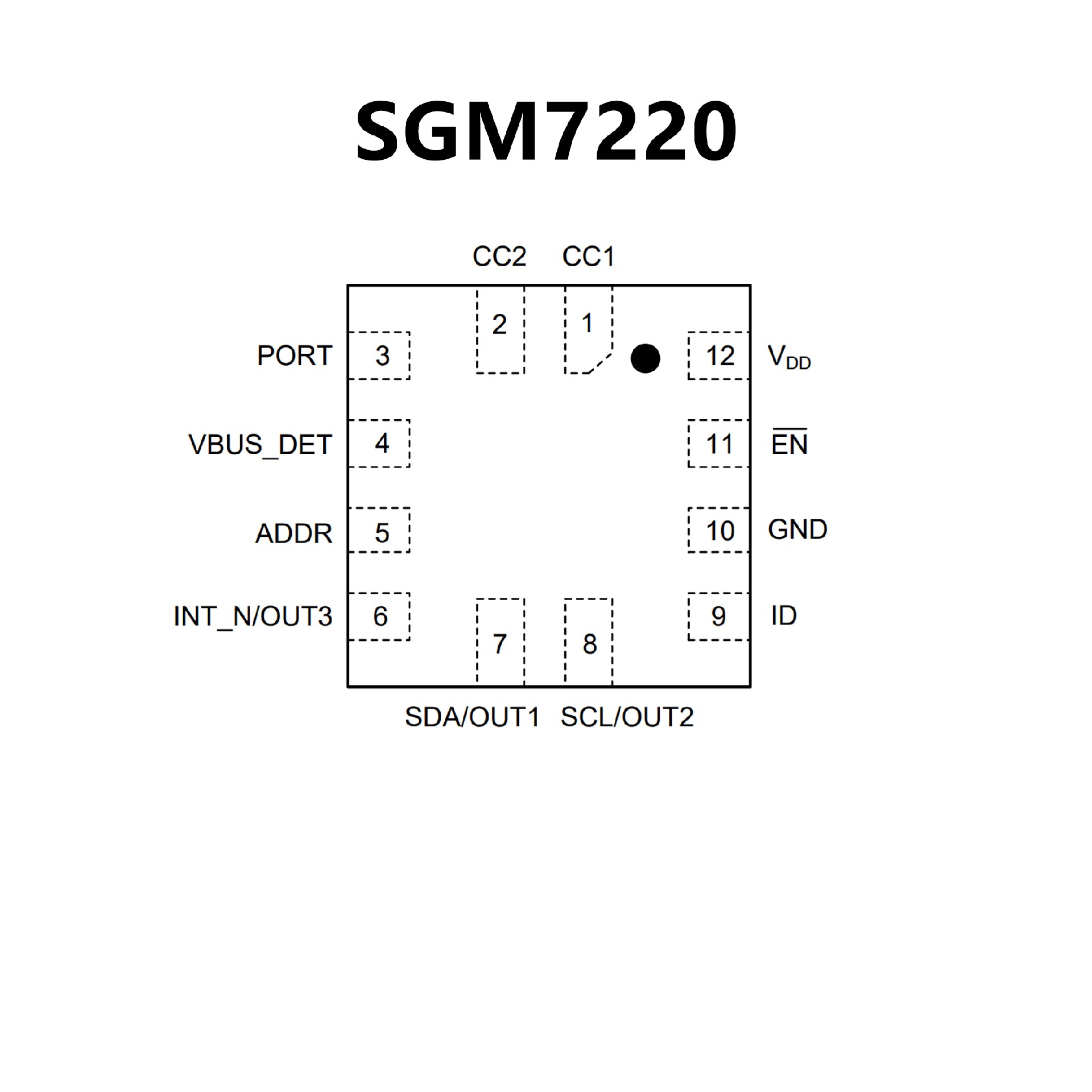

SGM7220.pdf? Supply Voltage Range: 2.7V to 5V
? Supports USB Type-C Specification 1.1
? Enable Control: Active Low (EN Pin)
? Backward Compatible with
USB Type-CSpecification 1.0
? Supports up to 3A of Current
Advertisement andDetection
? Mode Configuration
Host Only - DFP (Source)
Device Only - UFP (Sink)
Dual Role Port - DRP
Try.SNK
? Channel Configuration (CC)
Attachment of USB Port Detection
Cable Orientation Detection
Role Detection
Type-C Current Mode (Default, Medium or High)
? VBUS Detection
? I2C or GPIO Control
? Role Configuration Control through I2C
? Low Current Consumption
? -40℃ to +125℃ Operating Temperature Range
? Available in Green UTQFN-1.6×1.6-12L Package

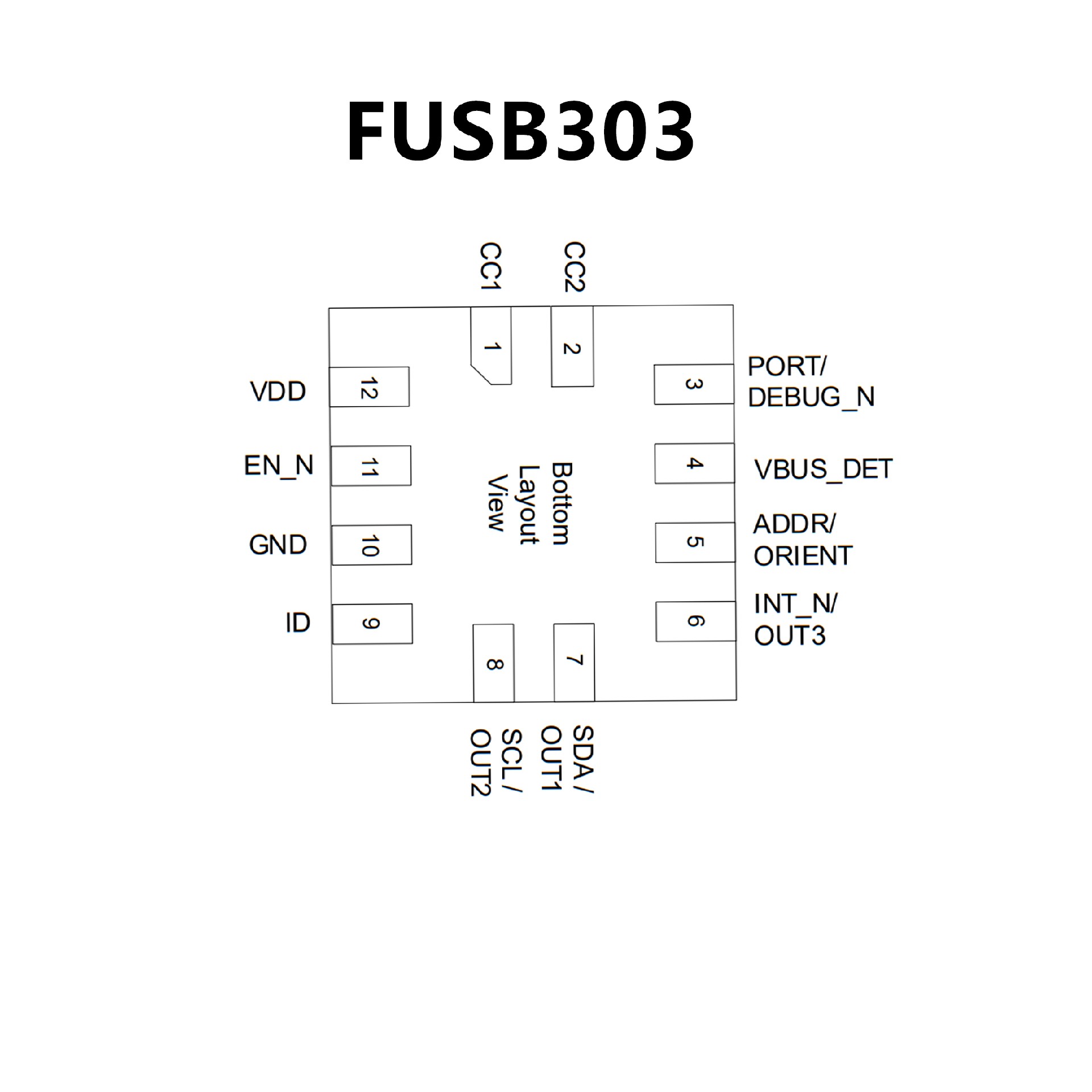

? Fully Autonomous USB?C? Port Controller
? Supports Latest Type?C? Specification Release 1.3
? Source, Sink, and DRP Port role Configuration
with OptionalAccessory Support
? Try.SRC and Try.SNK modes for Preferring
Source Role or SinkRole Respectively
? VDD Operating Range, 2.85 V ? 5.5 V
? Typical Low Power Operation: ICC < 10μA
? GPIO and I2C Configuration
? Max 28 V DC Tolerance on ID,
VBUS_DET, CC1 and CC2
? Dead Battery Support
(Sink Port role when No Power Applied)
? 4 kV HBM ESD Protection for Connector Pins
? Small Packaging, 12 Lead QFN
(1.6 mm × 1.6 mm × 0.375 mm）
