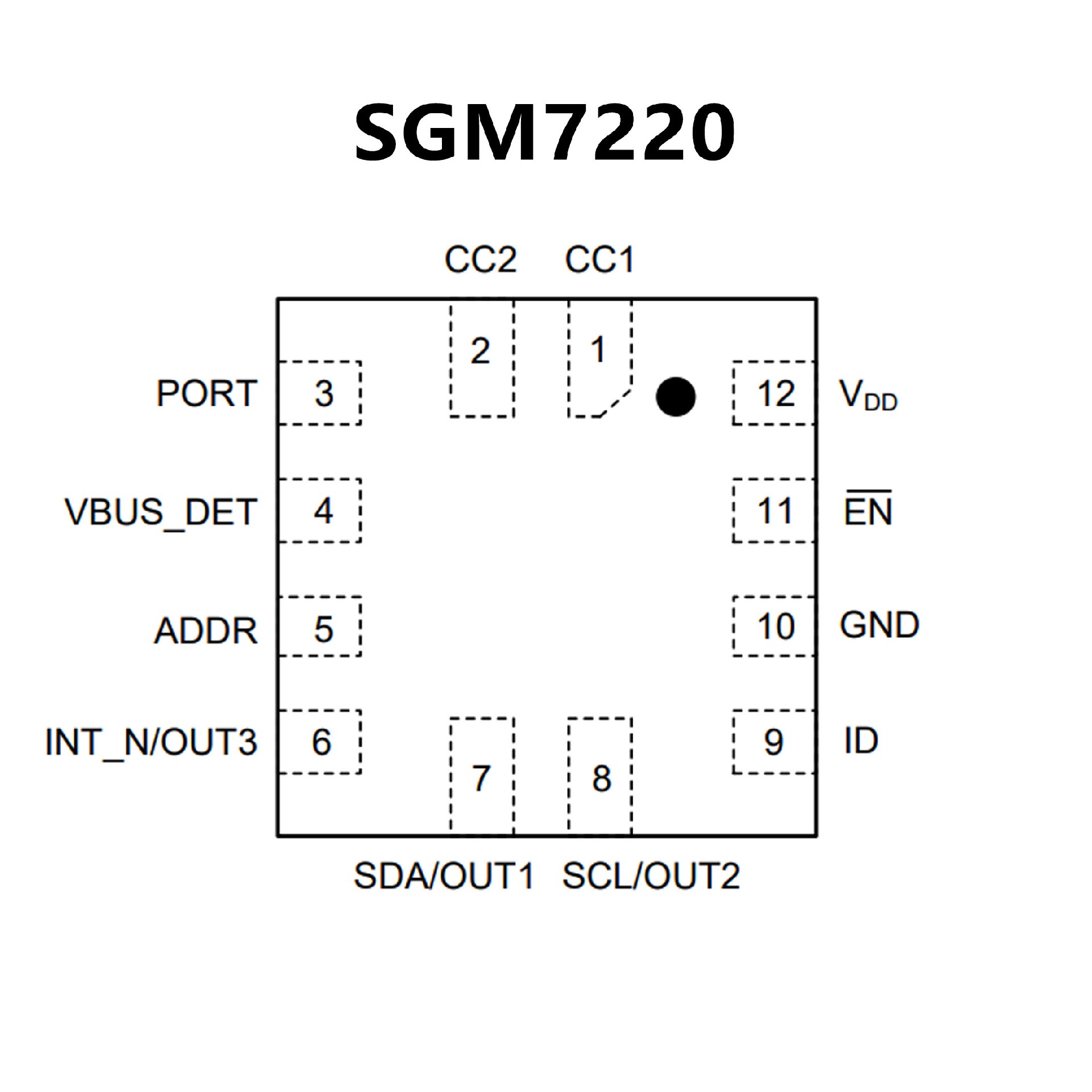

SGM7220.pdf? Supply Voltage Range: 2.7V to 5V
? Supports USB Type-C Specification 1.1
? Enable Control: Active Low (EN Pin)
? Backward Compatible with USB
Type-CSpecification 1.0
? Supports up to 3A of Current
Advertisement andDetection
? Mode Configuration
Host Only - DFP (Source)
Device Only - UFP (Sink)
Dual Role Port - DRP
Try.SNK
? Channel Configuration (CC)
Attachment of USB Port Detection
Cable Orientation Detection
Role Detection
Type-C Current Mode (Default, Medium or High)
? VBUS Detection
? I2C or GPIO Control
? Role Configuration Control through I2C
? Low Current Consumption
? -40℃ to +125℃ Operating Temperature Range
? Available in Green UTQFN-1.6×1.6-12L Package

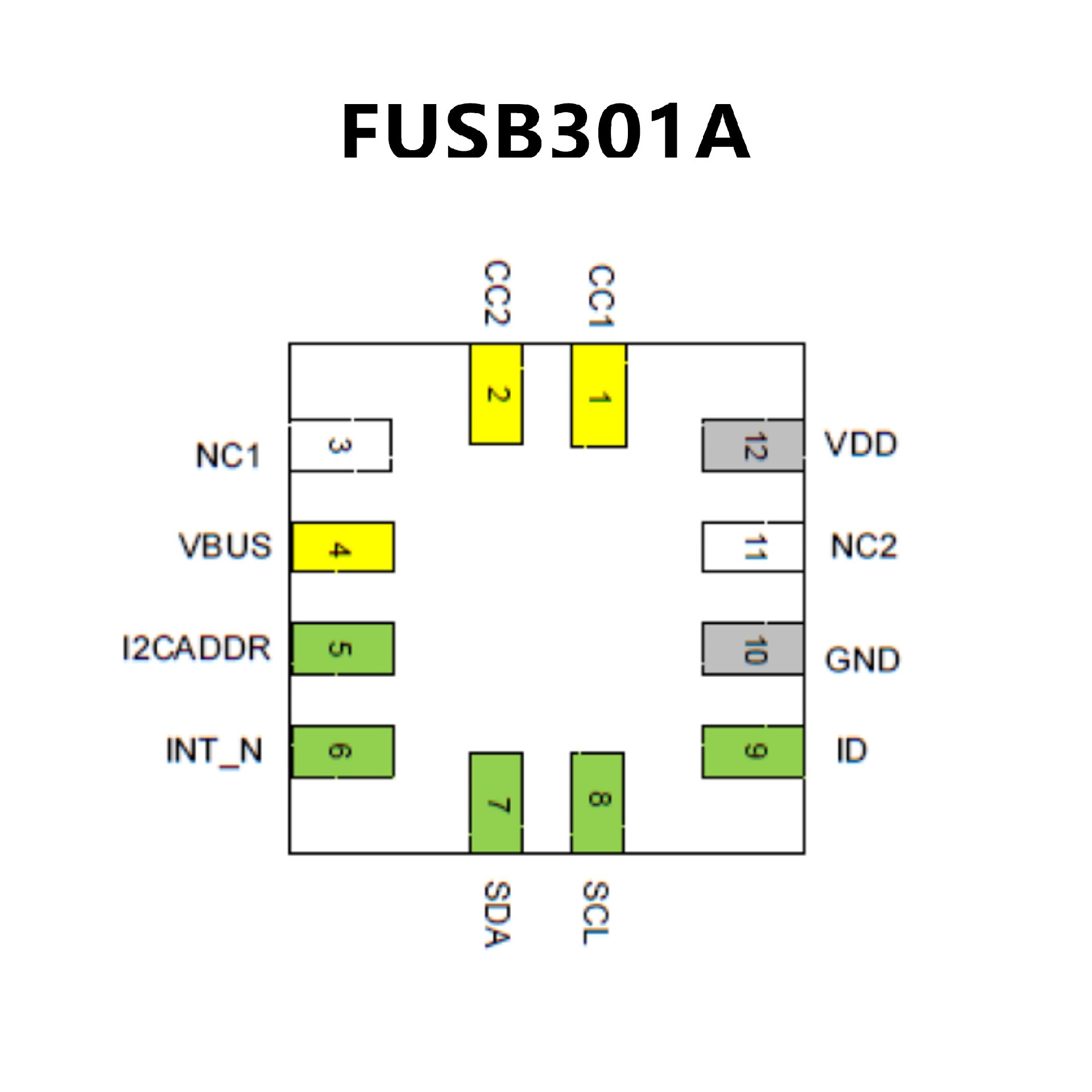

? Fully Autonomous Type?C Controller
Supports Type?C Versions 1.1
and 1.0
? VDD Operating Range, 3.0 V ? 5.5 V
? Low Disable Power: ICC = 2.0μA (Max.)
? Low Standby Power: ICC = 7.0μA (Max.)
? DRP Mode with Optional Accessory Support
? Configurable I2C Address
? Capable of Supporting Try.SNK and Try.SRC
? Dead Battery Support
(SINK Support when No Power Applied)
? 2 kV HBM ESD Protection
? Small Packaging, 12 Lead TMLP
(1.6 mm × 1.6 mm × 0.375 mm)
