SGM722.pdf? Rail-to-Rail Input and Output
? Input Offset Voltage: 4mV (MAX)
? High Gain-Bandwidth Product: 11MHz
? High Slew Rate: 8.5V/μs
? Settling Time to 0.1% with 2V Step: 0.21μs
? Overload Recovery Time: 0.6μs
? Low Noise: 8.5nV/√Hz at 10kHz
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Power:
SGM722/4: 1.1mA/Amplifier (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:

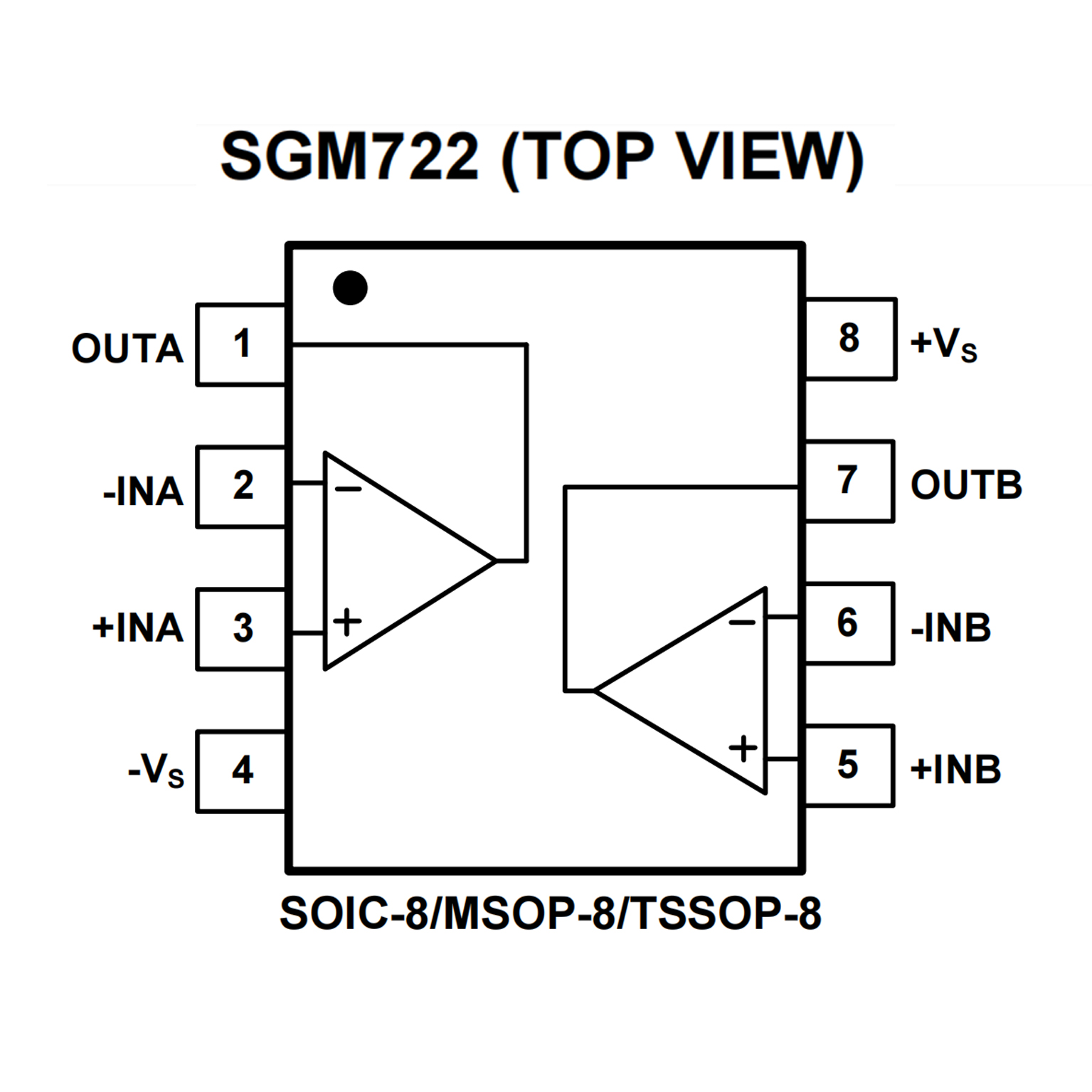

SGM722 Available in Green MSOP-8, SOIC-8 and
TSSOP-8 Packages
? Rail-to-Rail Input/Output
? Wide Bandwidth: 10 MHz (typical)
? Low Noise: 8.7 nV/?Hz at 10 kHz (typical)
? Low Offset Voltage:
Industrial Temperature: ±500 μV (max.)
Extended Temperature: ±250 μV (max.)
? Mid-Supply VREF: MCP6021 and MCP6023
? Low Supply Current: 1 mA (typical)
? Total Harmonic Distortion:
0.00053% (typical, G = 1 V/V)
? Unity Gain Stable
? Power Supply Range: 2.5V to 5.5V
? Temperature Range:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C
