Octal, 12-/14-/16-Bit, SPI Voltage Output denseDAC with 5 ppm/°C, On-Chip Reference, Replace AD5668.
SGM71612
SGM71612.pdf
SGM71612.pdfFEATURES
? Power Supply Range: 2.7V to 5.5V
? On-Chip 1.25V/2.5V, 10ppm/℃ Reference
SGM71612R81Z: 1.25V
SGM71612R82Z/SGM71612R82M/SGM71612R83M:
2.5V
? Power Down to 500nA (TYP) at 5V, 300nA (TYP) at 3V
? Monotonicity Guaranteed by Design
? Power-On Reset to Zero-Scale or Mid-Scale
SGM71612R81Z/SGM71612R82Z:
Power-On Reset to Zero
? SGM71612R82M/SGM71612R83M:
Power-On Reset to Mid-Scale
? 3 Power-Down Modes
? Hardware nLDAC and nLDAC Override Function
? nCLR Function to Programmable Code
? Rail-to-Rail Buffered Voltage-Output Operation
? Available in Green TSSOP-16, TQFN-4×4-16BL
and FOCSP-2.6×2.6-16B Packages

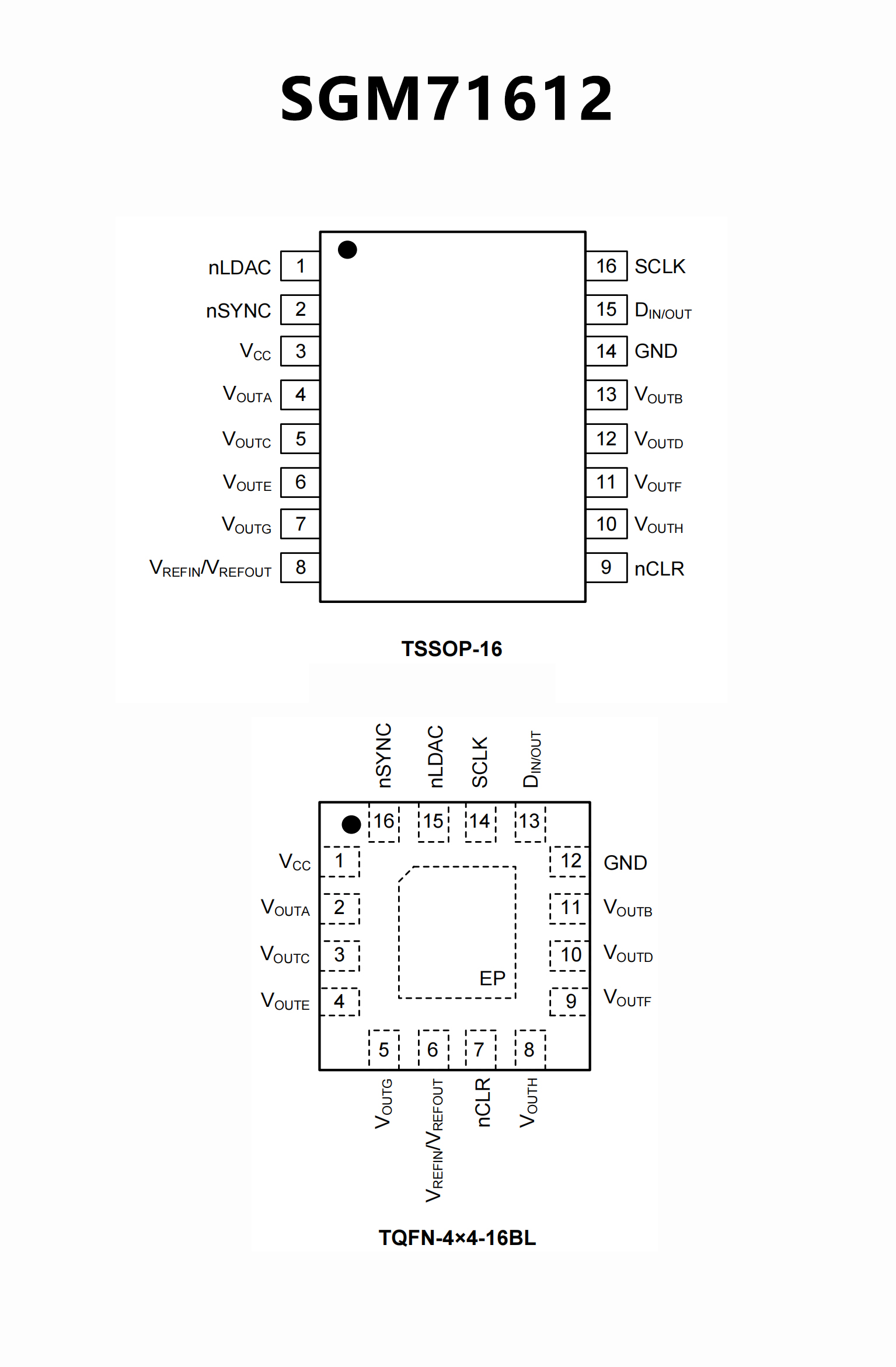

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Low power, small footprint, pin-compatible octal DACs
AD5668: 16 bits
AD5648: 14 bits
AD5628: 12 bits
? 14-lead/16-lead TSSOP, 16-lead LFCSP, and 16-ball WLCSP
? On-chip 1.25 V/2.5 V, 5 ppm/°C reference
? Power down to 400 nA at 5 V, 200 nA at 3 V
? 2.7 V to 5.5 V power supply
? Guaranteed monotonic by design
? Power-on reset to zero scale or midscale
? 3 power-down functions
? Hardware LDAC and LDAC override function
? CLR function to programmable code
? Rail-to-rail operation

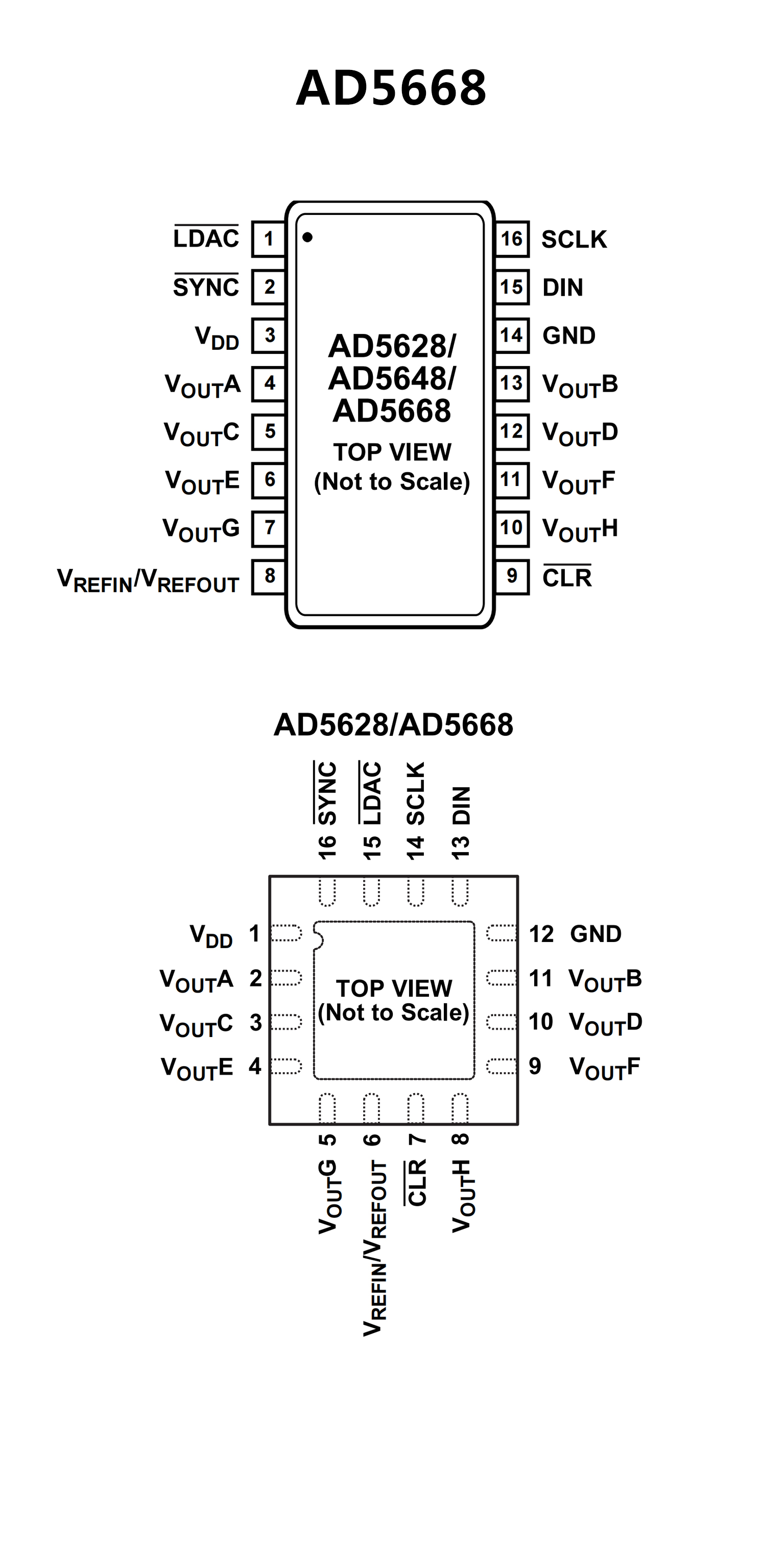

PIN CONFIGUTION
