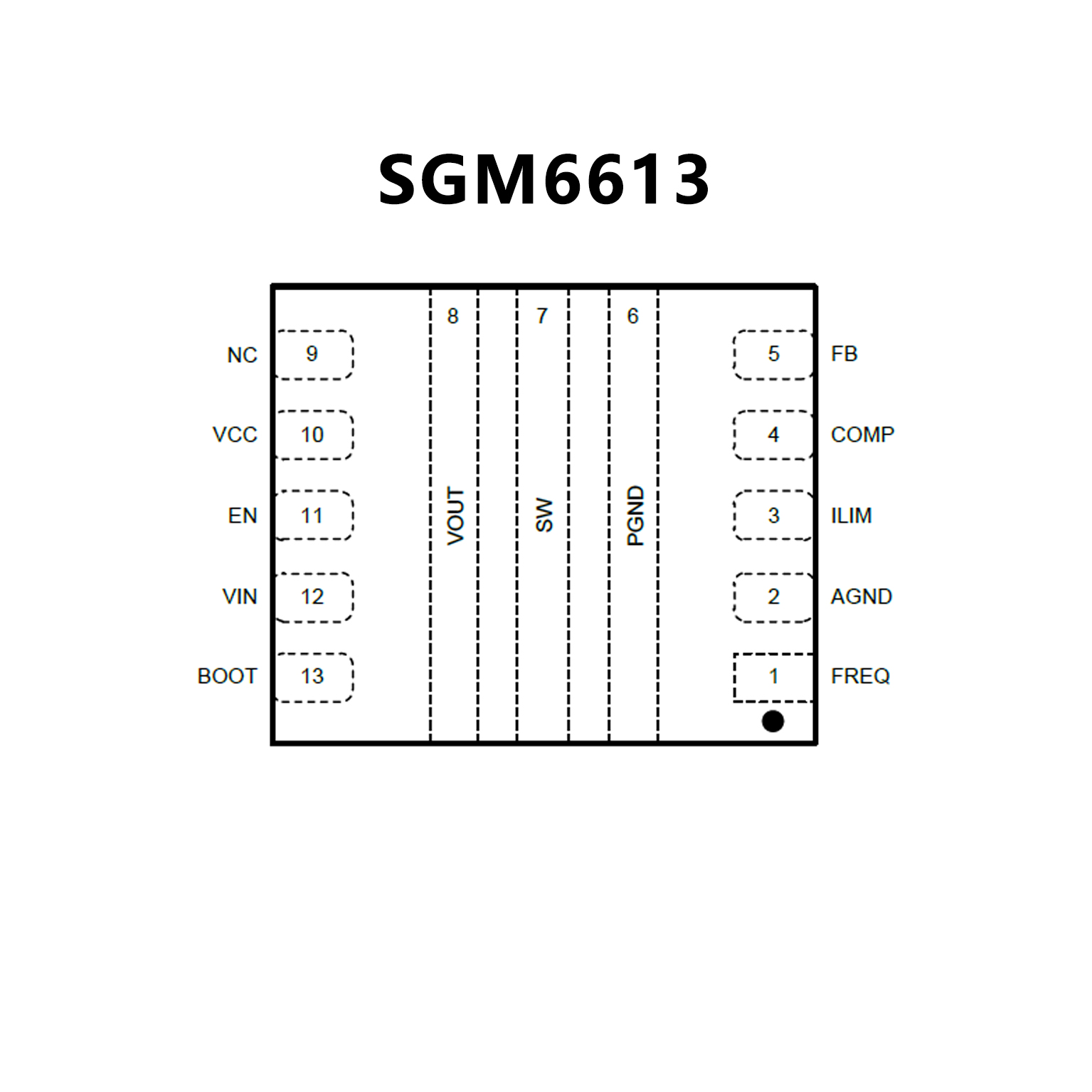

SGM6613.pdf? Wide 4.5V to 22V Input Voltage Range
? (VIN + 5V) to 28.5V Output Voltage Range
? Up to 7A Resistor-Programmable Current Limit
? Integrated 17mΩ/31mΩ Power MOSFETs
? Up to 90% Efficiency at VIN = 5V,
VOUT = 28.5V and IOUT = 500mA
? Up to 700kHz Resistor-Programmable
Switching Frequency
? Over-Voltage Protection
? Forced PWM Mode at Light Load Condition
? Available in a Green TQFN-3×3.5-13L Package

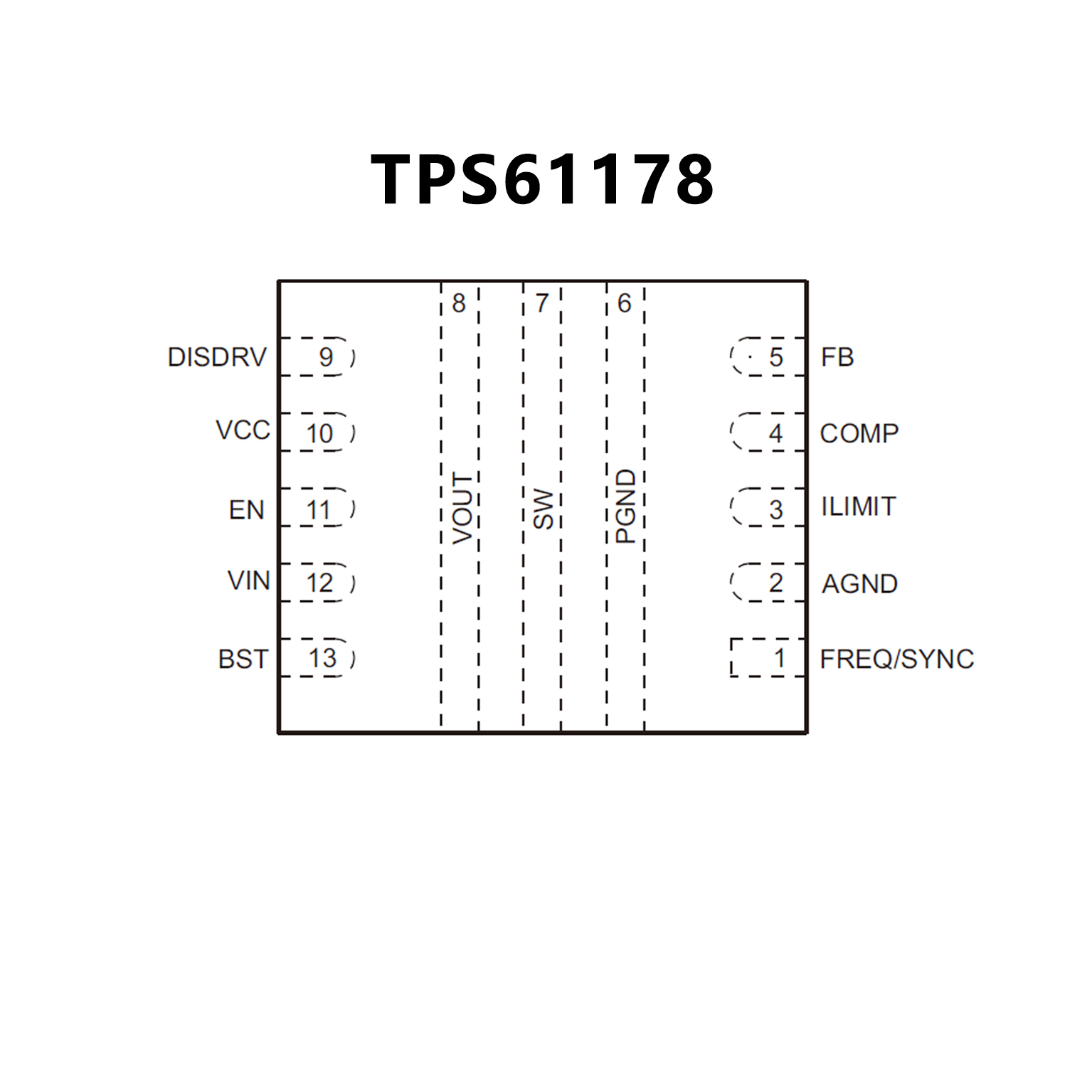

? Input Voltage Range: 2.7 V to 20 V
? Output Voltage Range: 4.5 V to 20 V
? Programmable Switch Peak Current: up to 10 A
? Two 16-m? FETs Integrated
? Efficiency up to 96%: VIN = 7.2 V, VOUT = 16 V, IOUT = 2 A
? Adjustable Switching Frequency: up to 2.2 MHz
? External Clock Synchronization: 200 kHz to 2.2 MHz
? Gate Driver for Load Disconnect
? Hiccup Short Protection
? Auto PFM Operation - TPS61178
? Forced PWM Mode - TPS611781
? 3.0-mm x 3.5-mm 13-pin VQFN Hotrod Package
? Create a Custom Design Using the
TPS61178 With the WEBENCH? Power Designer
