150kHz, 600mA, 42V Synchronous Buck Converter,SGM61411 Replace LV3842.
SGM61411
SGM61411.pdf
SGM61411.pdfFEATURES
? Wide 5V to 42V Operating Input Voltage Range
? 0.8V Internal Reference
? Shutdown Current: 0.6μA (TYP)
? Current Output up to 600mA
? 150kHz Switching Frequency
? Internal Compensation and Soft-Start
? Simple Design and Minimal
External Components
? Up to 95% Efficiency at 12V/400mA
? 0.8V to 20V Adjustable Output Voltage
? Current Limit and Short-Circuit Protection
? Output Over-Voltage Protection and
Thermal Shutdown
? Forced PWM Control Mode Operation
? Monotonic Startup with Pre-biased Output
? 98% Maximum Duty Cycle
? Available in a Green SOT-23-6 Package
? -40℃ to +125℃ Operating Temperature Range

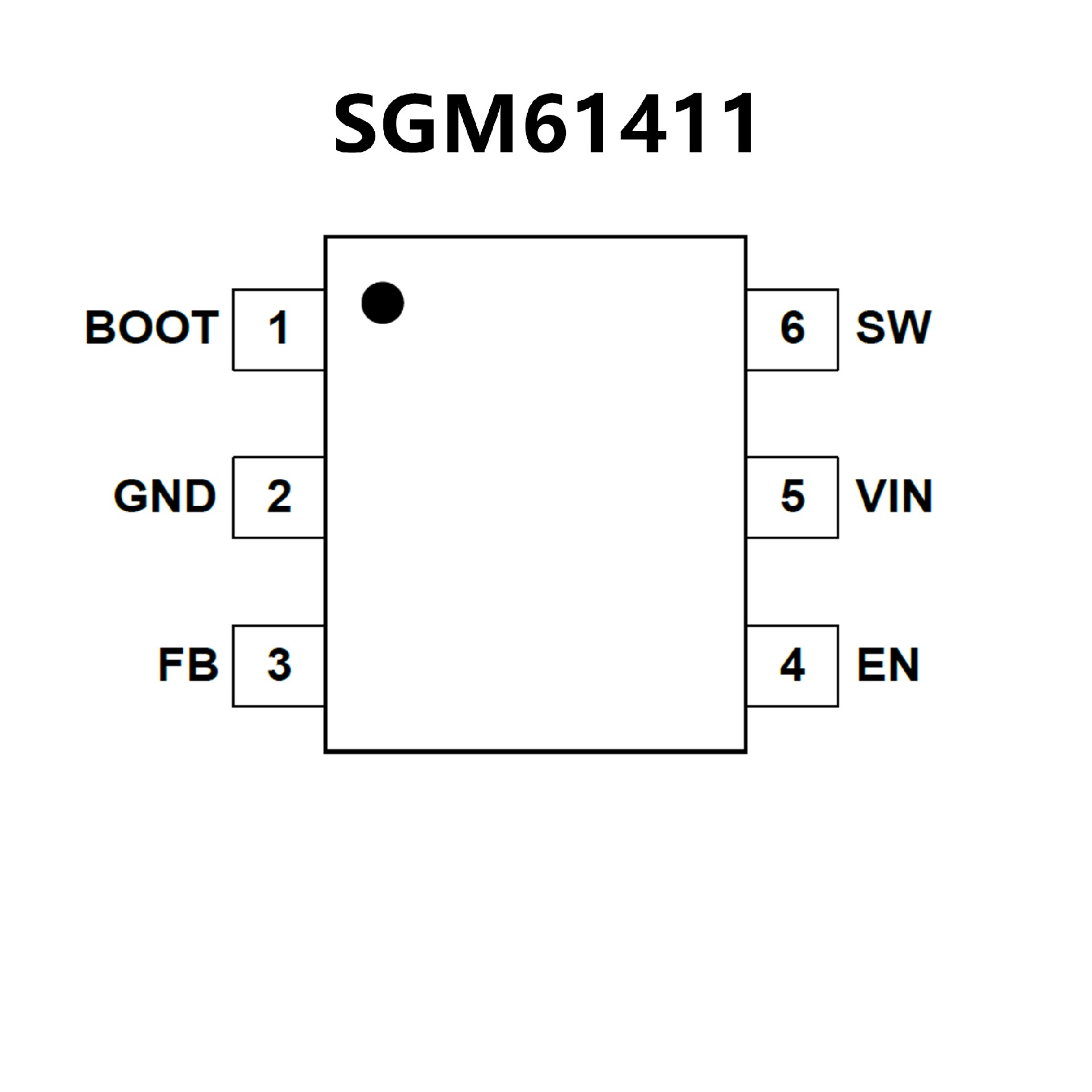

PIN CONFIGUTION
