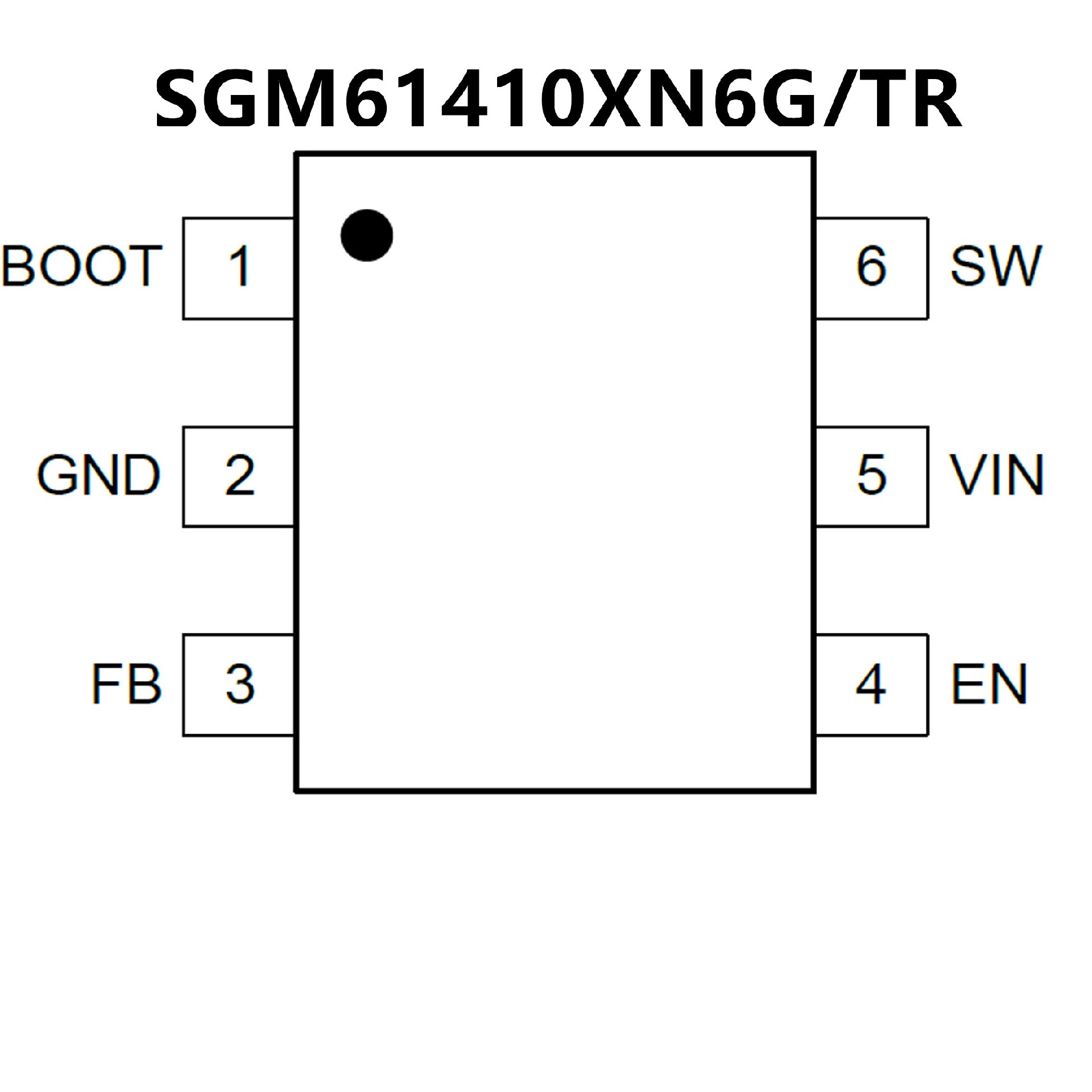

SGM61410XN6GTR.pdf? Wide 5V to 45V Operating Input Voltage Range
? Low Quiescent Current: 14μA (TYP)
? 0.8μA (TYP) Shutdown Current
? Current Output up to 600mA
? Internal Synchronous Rectifier
? 1.2MHz Switching Frequency
? Compensation Inside and Internal Soft-Start
? Up to 95% Efficiency at 12V/400mA
? 0.8V to 20V Adjustable Output Voltage
? Current Limit and Short-Circuit Protection
? Output Over-Voltage Protection and Thermal Shutdown
? Available in Green SOT-23-6 Package
? -40℃ to +125℃ Operating Temperature Range

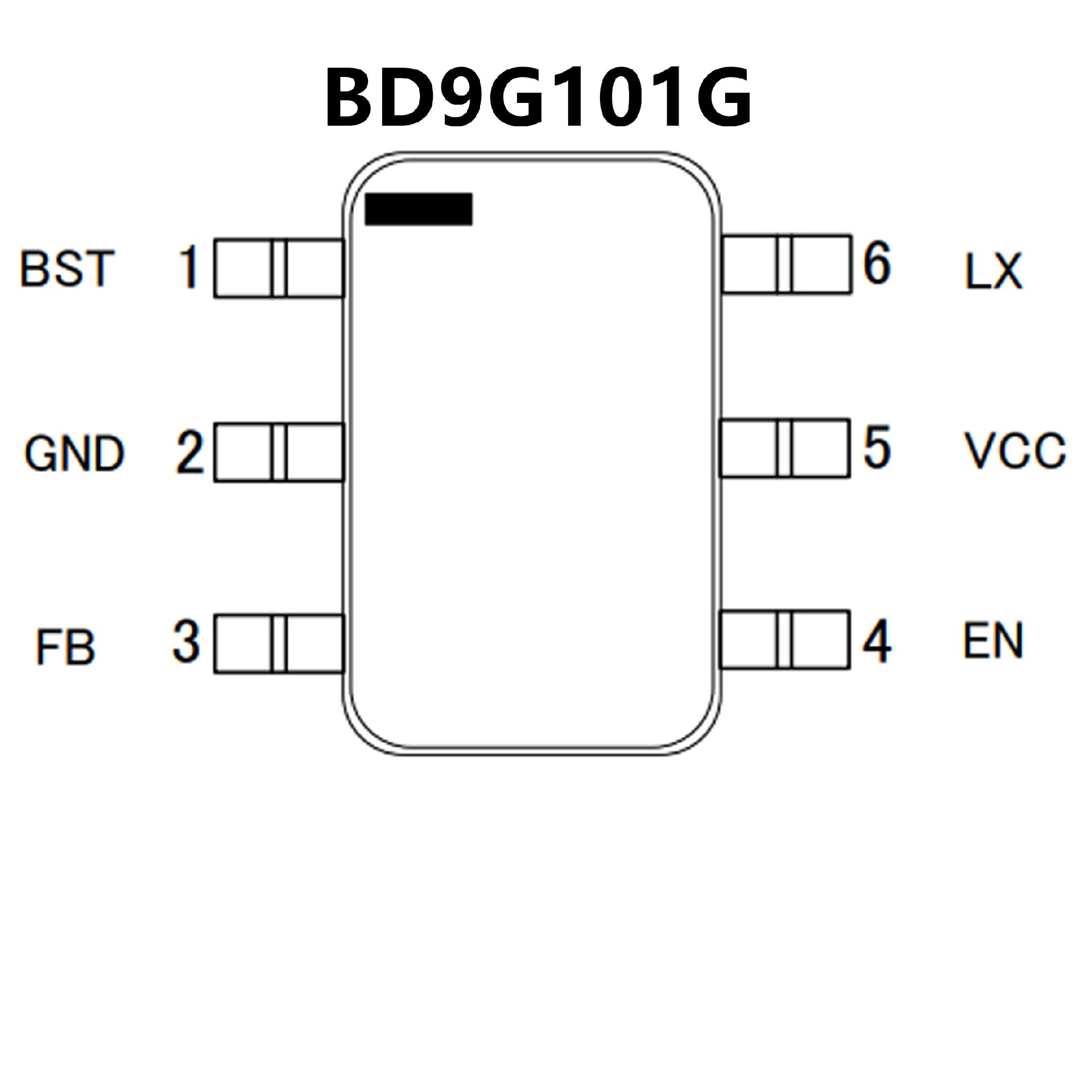

? High and Wide Input Range (VCC=6V~42V)
? 45V/800mΩ Internal Power MOSFET
? 1.5MHz Fixed Operating Frequency
? Feedback Pin Voltage 0.75V±1.5%
? Internal compensated
? Internal Over Current protection,
Under
Voltage Locked Out, Thermal shutdown
? 0μA Shutdown Supply Current (Ist=0μA)
? Small package SSOP6
