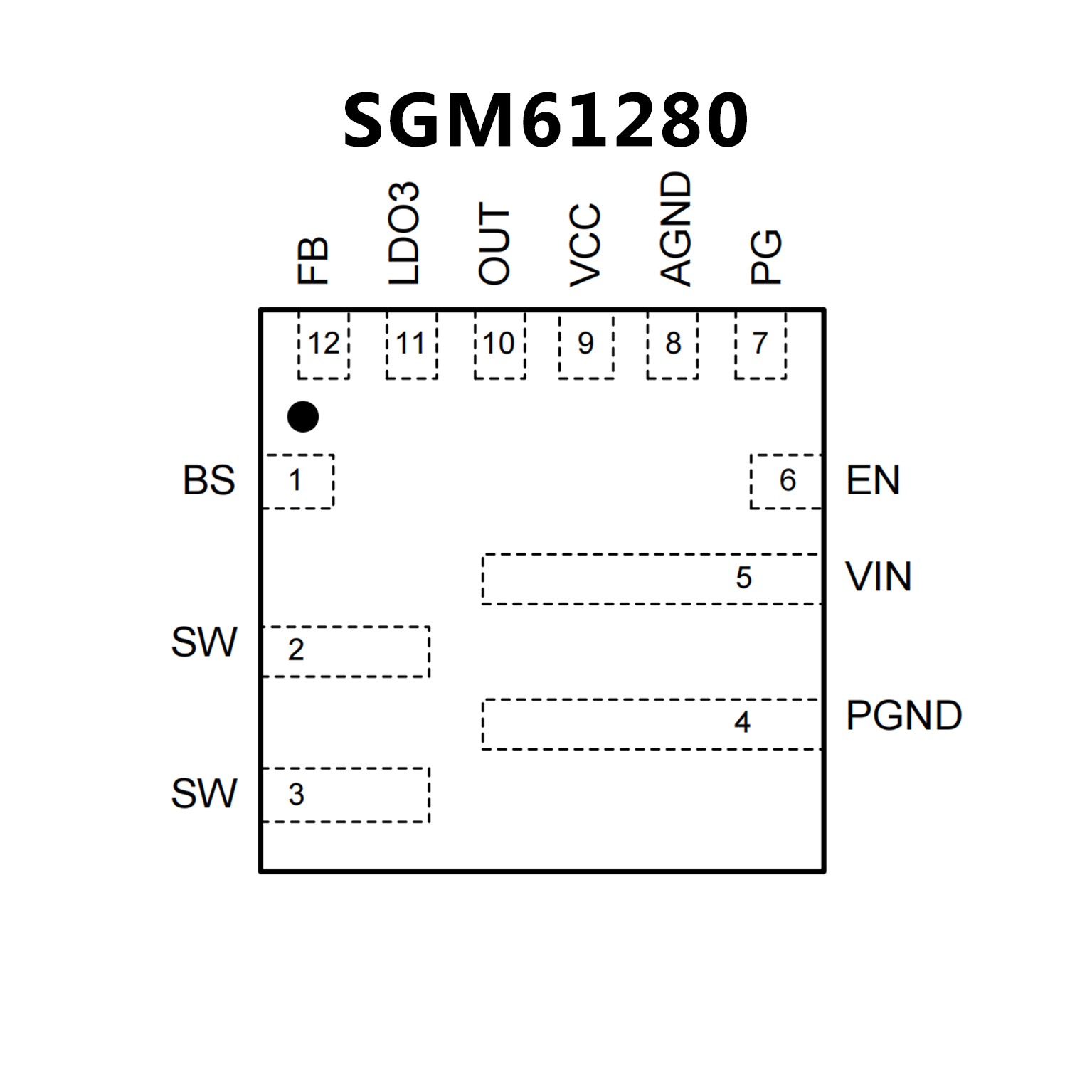

SGM61280.pdf? 8A Output Current
? Fixed Output Voltages
? Wide Input Voltage Range:
4.5V to 23V Input Range for SGM61280-3.3
5.1V to 23V Input Range for SGM61280-5.1
? Constant On-Time (COT) Control
? Low RDSON MOSFET Switches (22mΩ/7mΩ)
? Fast Transient Response, Accurate Regulation
? Supports All Low ESR MLCC Output Capacitors
? Fixed Switching Frequency
? LDO Output Voltage
? Internal Soft-Start
? Integrated Output Discharge Resistance
? Cycle-by-Cycle Valley Over-Current Protection
? Input Under-Voltage Lockout
? Thermal Shutdown Protection
? Output Over/Under-Voltage Protection
? Audio Avoid Mode (AAM) to Avoid PFM Acoustic Noise
? Available in a Green UTQFN-3×3-12AL Package
? Dual Phase Balanced Peak Current Mode
? Input Voltage Range: 4 V to 15 V
? Output Voltage Range: 0.9 V to 6 V
? Output Current up to 6 A
? Typical Quiescent Current of 28 μA
? Output Voltage Accuracy of ±1% (PWM Mode)
? Automatic Efficiency Enhancement (AEE?)
? Phase Shifted Operation
? Automatic Power Save Mode
? Adjustable Soft Start
? Power Good Output
? Undervoltage Lockout
? HICCUP Over Current Protection
? Pin-to-Pin Compatible with TPS62184
? Over Temperature Protection
? NanoFree? 2.10 mm x 3.10 mm DSBGA
Package

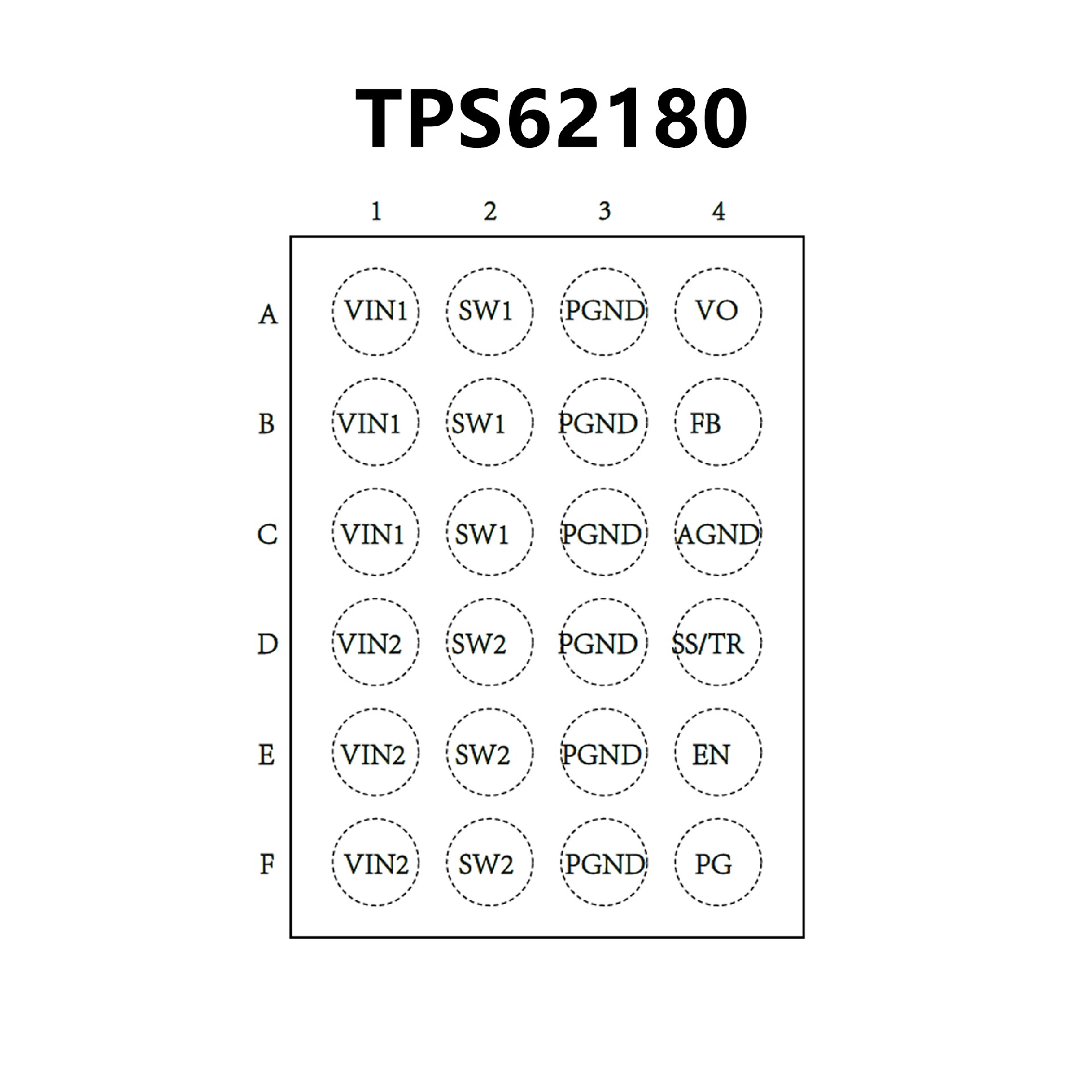

? Create a Custom Design Using the TPS62180
With the WEBENCH? Power Designer
