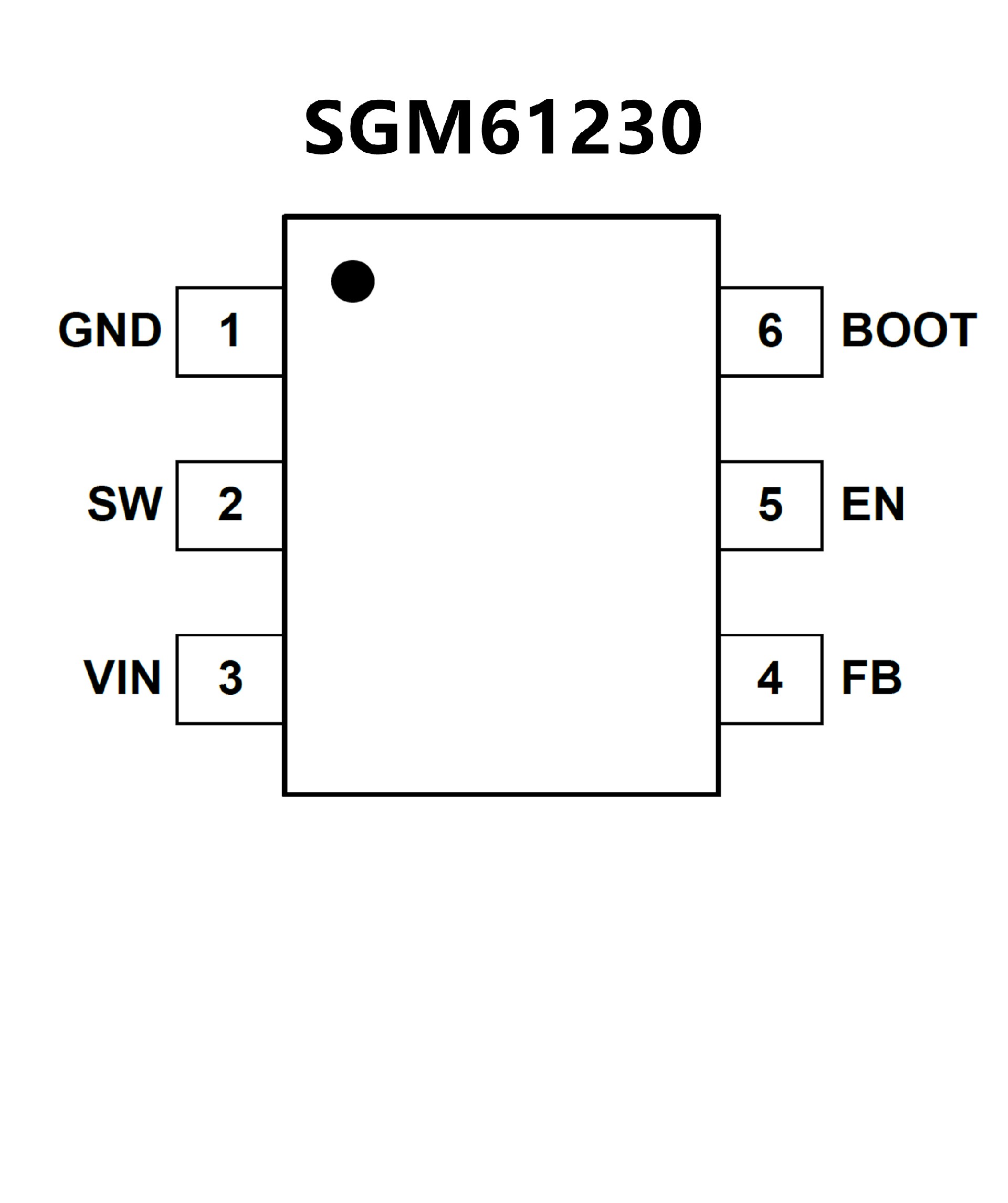

SGM61230.pdf? Wide 4.5V to 28V Input Voltage Range
? 3A Continuous Output Current
? Integrated 66mΩ/36mΩ Power MOSFETs
? Low Quiescent Current: 25μA (TYP)
? Shutdown Current: 2μA (TYP)
? 5ms Internal Soft-Start Time
? Fixed 410kHz Switching Frequency
? Pulse Skip Mode and PWM Mode
? Peak Current Mode Control
? Internal Loop Compensation
? Over-Current Protection for Both MOSFETs
? Output Over-Voltage Protection
? Adjustable Input Under-Voltage Lockout
? Thermal Shutdown with Auto Recovery
? Available in a Green TSOT-23-6 Package

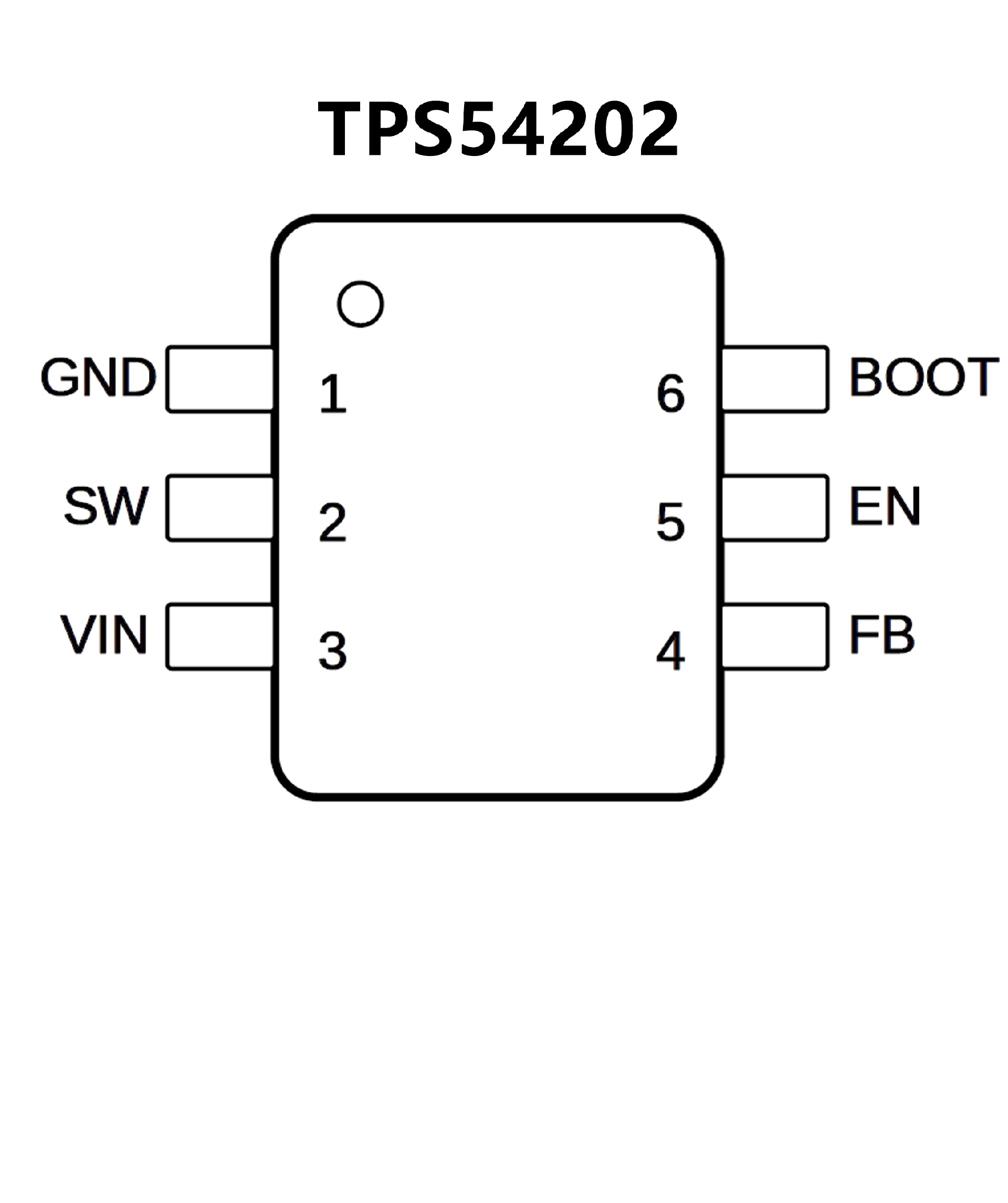

? 4.5-V to 28-V Wide Input voltage Range
? Integrated 148-mΩ and 78-mΩ MOSFETs for 2-A,
Continuous Output Current
? Low 2-μA Shutdown, 45-μA Quiescent Current
? Internal 5-mS Soft-Start
? Fixed 500 kHz Switching Frequency
? Frequency Spread Spectrum to Reduce EMI
? Advanced Eco-mode? Pulse Skip
? Peak Current Mode Control
? Internal loop compensation
? Overcurrent Protection for Both MOSFETs with
Hiccup Mode Protection
? Over Voltage Protection
? Thermal Shutdown
? SOT23-6 Package
