2.4V to 5.5V Input,1-,2-,3-,4-A Step-down Converter with 1% Output Accuracy, SGM61044 Replace TPS62825.
SGM61044.pdf優(yōu)勢替代
FEATURES
? Available as an integrated-inductor power module:
TPSM82821 and TPSM82822
? DCS-Control? topology
? 1% feedback or output voltage accuracy (full
temperature range)
? Up to 97% efficiency
? 26-mΩ and 25-mΩ internal power MOSFETs
? 2.4-V to 5.5-V input voltage range
? 4-μA operating quiescent current
? 2.2-MHz switching frequency
? Adjustable output voltage from 0.6 V to 4 V
? Power save mode for light load efficiency
? 100% duty cycle for lowest dropout
? Active output discharge
? Power good output
? Thermal shutdown protection
? Hiccup short-circuit protection
? A forced-PWM version for CCM operation
? Create a custom design using the TPS6282x with
the WEBENCH? Power Designer

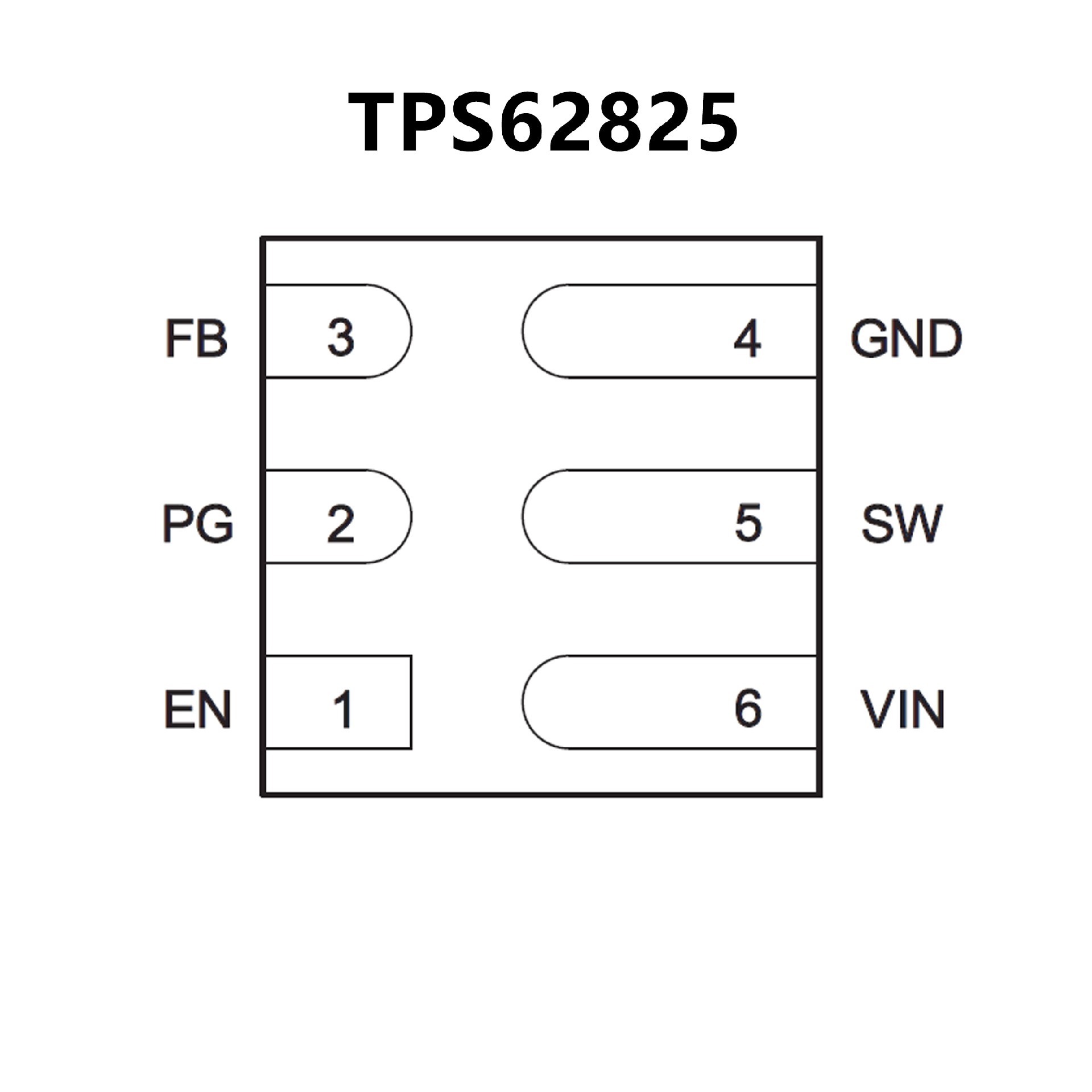

PIN CONFIGUTION
