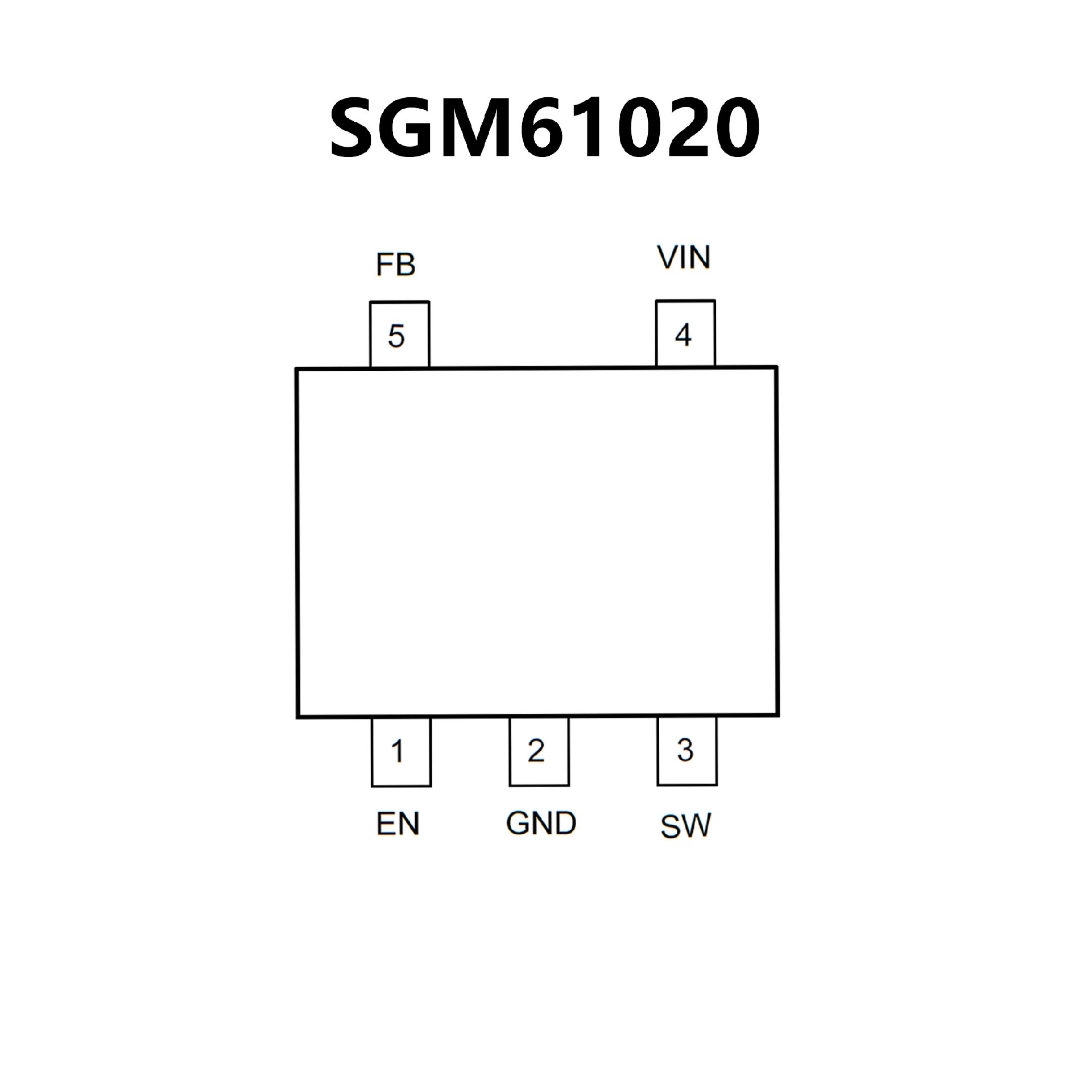

SGM61020XN5G.pdf? 2.5V to 5.5V Input Voltage Range
? Adjustable Output Voltage from 0.6V to VIN
? Up to 95% Efficiency
? Low RDSON Switches (102mΩ/57mΩ)
? Power-Save Mode for Light Load Efficiency
? 42μA (TYP) Operating Quiescent Current
? 100% Duty Cycle for Low Dropout Operation
? 1.5MHz PWM Switching Frequency
? Power Good Output (SGM61020P Only)
? Over-Current Protection
? Thermal Shutdown Protection
? Input Under-Voltage Lockout (UVLO) Protection
? -40℃ to +125℃ Operating Temperature Range
VSmall Packaging:
SGM61020: Available in Green
SOT-23-5 andSOT-563-6 Packages
SGM61020P: Available in a Green
SOT-563-6Package

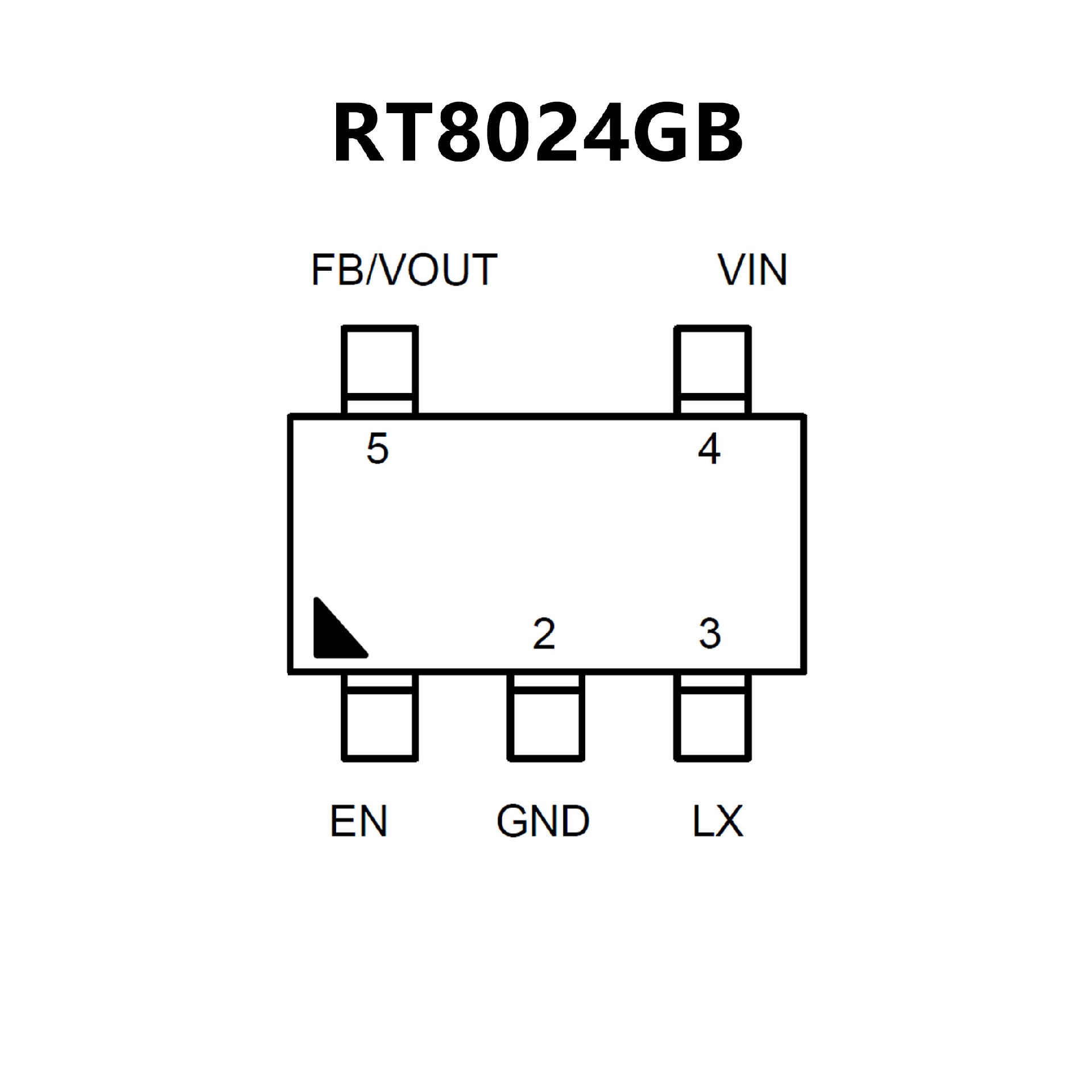

? 2.5V to 5.5V Input Range
? Adjustable Output From 0.6V to VIN
? 1.0V, 1.2V, 1.5V, 1.8V, 2.5V and 3.3V Fixed/
Adjustable Output Voltage
? 400mA Output Current, 1A Peak Current
? 95% Efficiency
? No Schottky Diode Required
? 1.5MHz Fixed Frequency PWM Operation
? Small SOT-23-5 and TSOT-23-5 Package
? RoHS Compliant and Halogen Free
