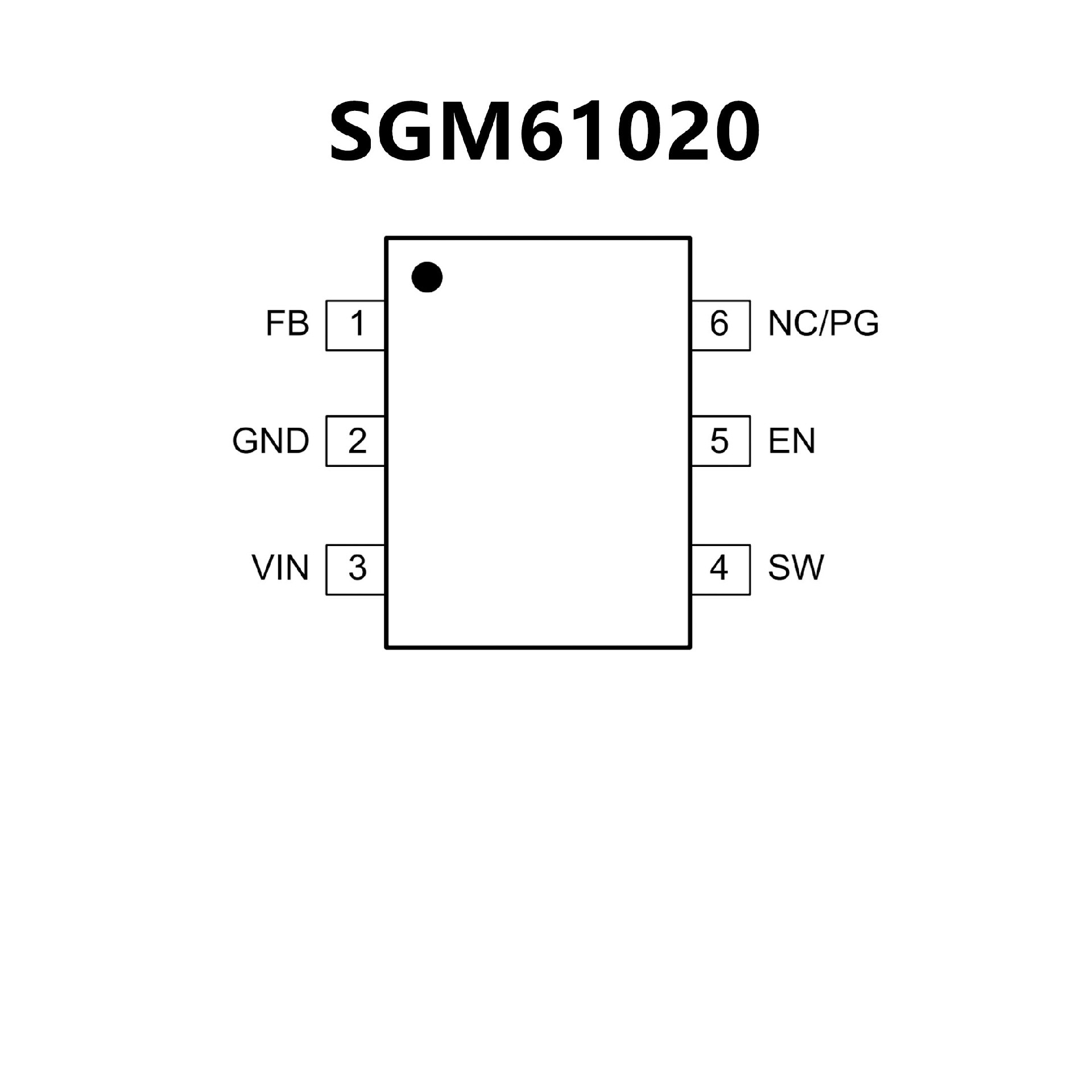

SGM61020.pdf? 2.5V to 5.5V Input Voltage Range
? Adjustable Output Voltage from 0.6V to VIN
? Up to 95% Efficiency
? Low RDSON Switches (102mΩ/57mΩ)
? Power-Save Mode for Light Load Efficiency
? 42μA (TYP) Operating Quiescent Current
? 100% Duty Cycle for Low Dropout Operation
? 1.5MHz PWM Switching Frequency
? Power Good Output (SGM61020P Only)
? Over-Current Protection
? Thermal Shutdown Protection
? Input Under-Voltage Lockout (UVLO) Protection
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM61020: Available in Green
SOT-23-5 and SOT-563-6 Packages
SGM61020P: Available in a Green SOT-563-6 Package

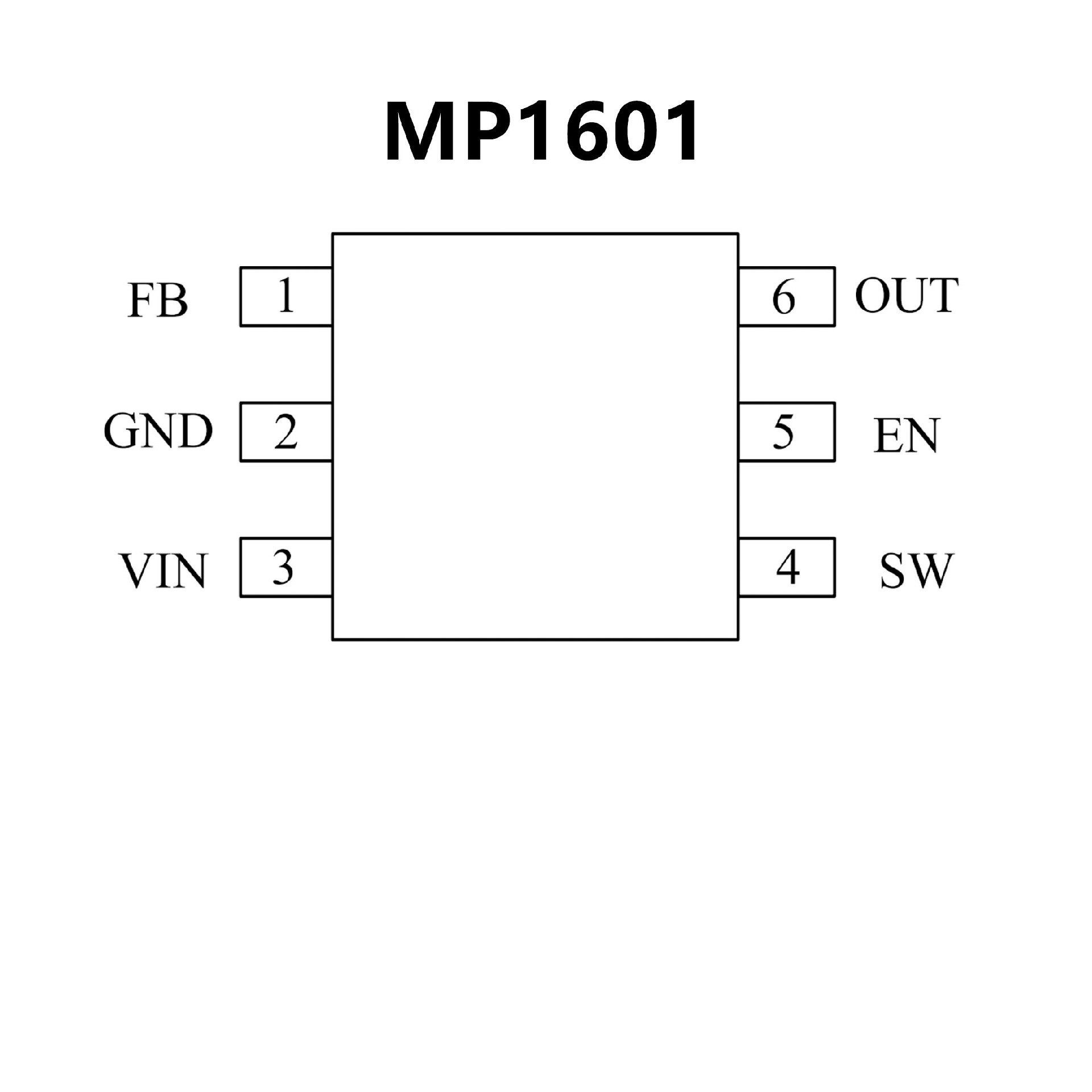

? Low Quiescent Current: 11μA
? 2.2MHz Switching Frequency
? EN for Power Sequencing
? Power Good Only for Fixed Output Version
? Wide 2.3V-to-5.5V Operating Input Range
? Output Adjustable from 0.6V
? Up to 1A of Output Current
? 160m? and 120m? Internal Power MOSFET Switches
? Output Discharging
? Short-Circuit Protection (SCP) with Hiccup Mode
? Stable with Low ESR Output Ceramic Capacitors
? 100% Duty Cycle
? Available in a SOT563 Package
