2.4-V to 5.5-V Input, Tiny 6-Pin 2-A/3-A Step-Down Converter in 1.2-mm × 0.8-mm Wafer Chip Scale Package and Suitable for Embedding
SGM61006
SGM61006.pdf
SGM61006.pdfFEATURES
? 1.8V to 5.5V Input Voltage Range
? 0.5V to VIN Adjustable Output Voltage
? AHP-COT Architecture for Fast Transient Regulation
? 3.5MHz Switching Frequency
? Up to 90% Efficiency
? Low RDSON MOSFET Switches (100mΩ/95mΩ)
? 26μA (TYP) Operating Quiescent Current
? Power-Save Mode for Light Load Efficiency
? 100% Duty Cycle for Lowest Dropout
? Output Discharge Function
? Power Good Output
? Thermal Shutdown Protection
? Available in a Green WLCSP-0.9×1.3-6B-A Package

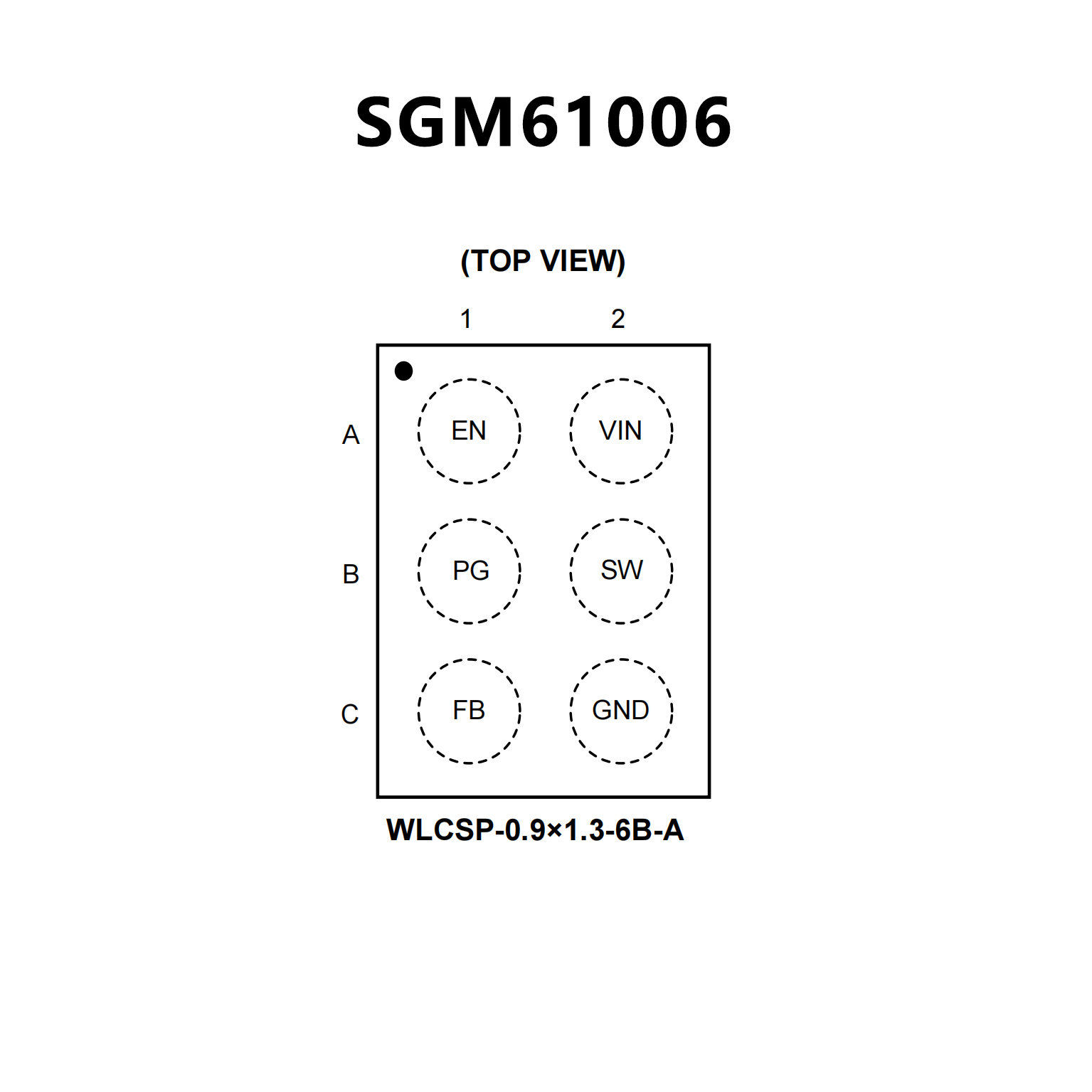

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? DCS-Control topology
? Up to 95% efficiency
? 26-mΩ and 26-mΩ internal power MOSFETs
? 2.4-V to 5.5-V input voltage range
? 4-μA operating quiescent current
? 1% output voltage accuracy
? 4-MHz switching frequency
? Power save mode for light-load efficiency
? A forced-PWM version for CCM operation
? 100% duty cycle for lowest dropout
? Active output discharge
? Power good output
? Thermal shutdown protection
? Hiccup short-circuit protection
? Available in 6-pin WCSP and PowerWCSP with
0.4-mm pitch
? 0.3-mm tall YWC package supports embedded
systems
? Supports 12 mm2 solution size
? Supports < 0.6 mm height solution
? Create a custom design using the TPS62088 with
the WEBENCH? Power Designer

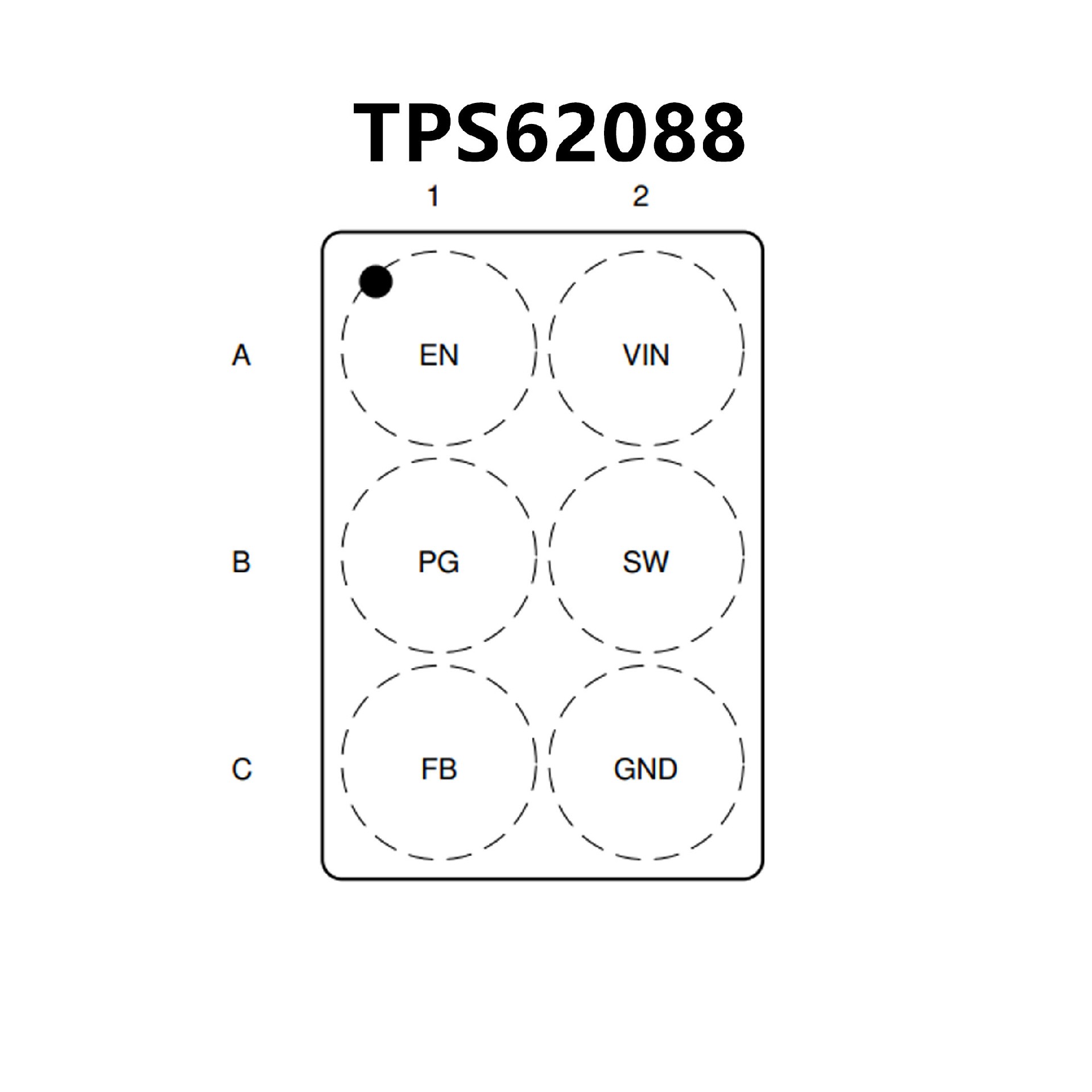

PIN CONFIGUTION
