4.6MHz, 1A Synchronous Step-Down Regulator,SGM6033-Replace-C79313.
SGM6033
SGM6033.pdf
SGM6033.pdfFEATURES
? 1A Output Current Capability
? 26μA Typical Quiescent Current
? 4.6MHz Fixed Frequency Operation
? Best-in-Class Load Transient Response
? Best-in-Class Efficiency
? 2.5V to 5.5V Input Voltage Range
? 0.8V Reference Voltage
? Low Ripple Light-Load PFM Mode
? Internal Soft-Start
? Input Under-Voltage Lockout (UVLO)
? Thermal Shutdown and Overload Protection
? Output Discharge
? Available in Green TDFN-2×2-6L
andWLCSP-1.21×0.81-6B Packages
? -40℃ to +125℃ Operating Temperature Range

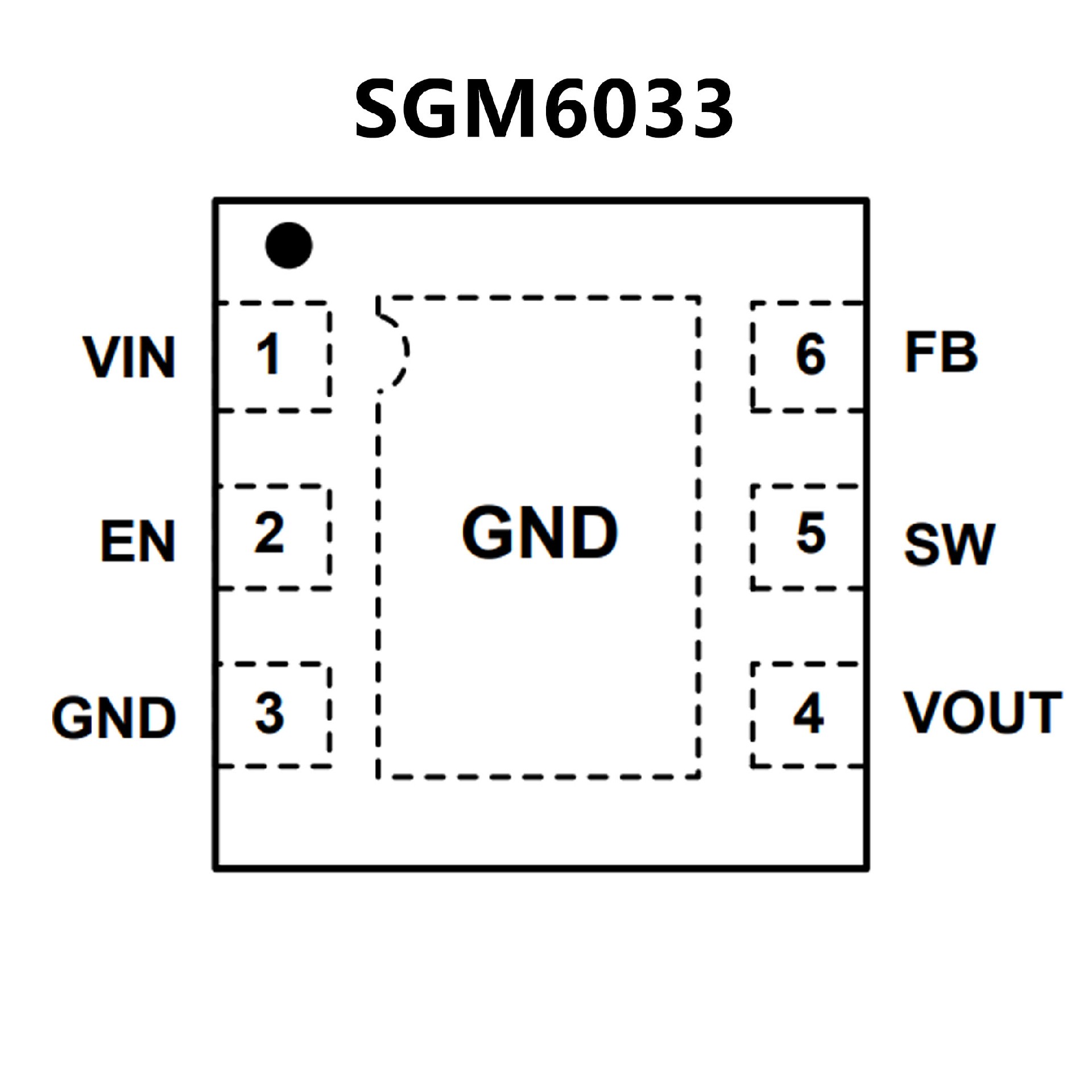

PIN CONFIGUTION
優(yōu)勢替代
