Dual Low-Noise Operational Amplifier, SGM5532 Replace NJM4558.
SGM5532
SGM5532.pdf
SGM5532.pdfFEATURES
? Equivalent Input Noise Voltage:
5nV/ Hz (TYP) at 1kHz
? Unity-Gain Bandwidth: 8.5MHz (TYP)
? Common Mode Rejection Ratio: 140dB (TYP)
? High DC Voltage Gain: 140dB (TYP)
? High Slew Rate: 18V/μs (TYP)
? -40℃ to +85℃ Operating Temperature Range
? Available in a Green SOIC-8 Package

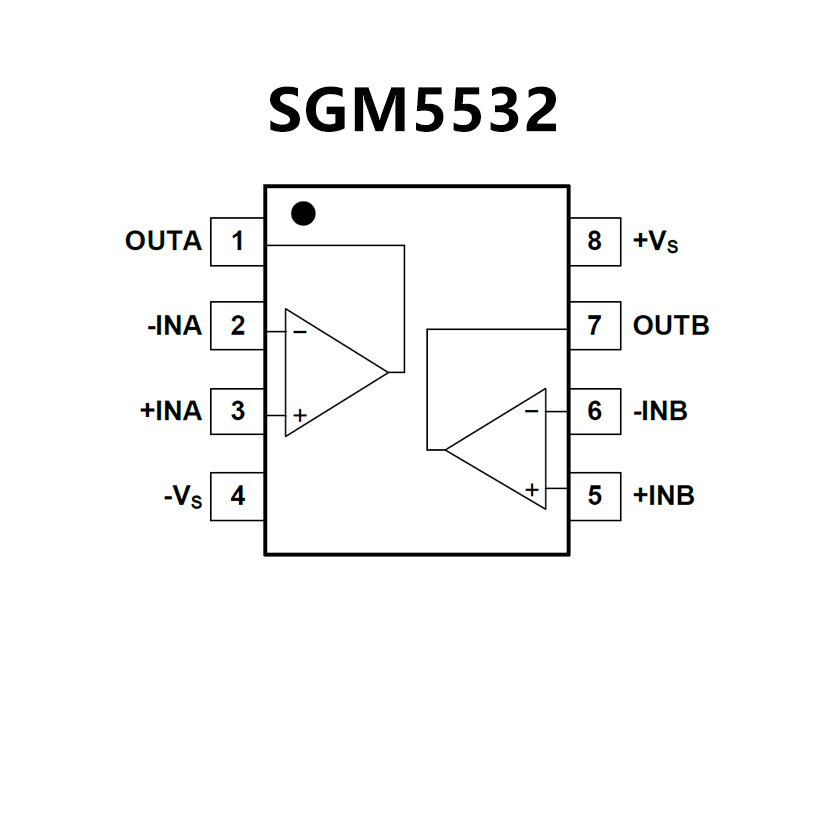

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Operating Voltage ( ±4V~±18V )
? High Voltage Gain ( 100dB typ. )
? High Input Resistance ( 5MΩ typ. )
? Bipolar Technology
? Package Outline DIP8, DMP8, SIP8
SOP8 JEDEC 150mil,SSOP8

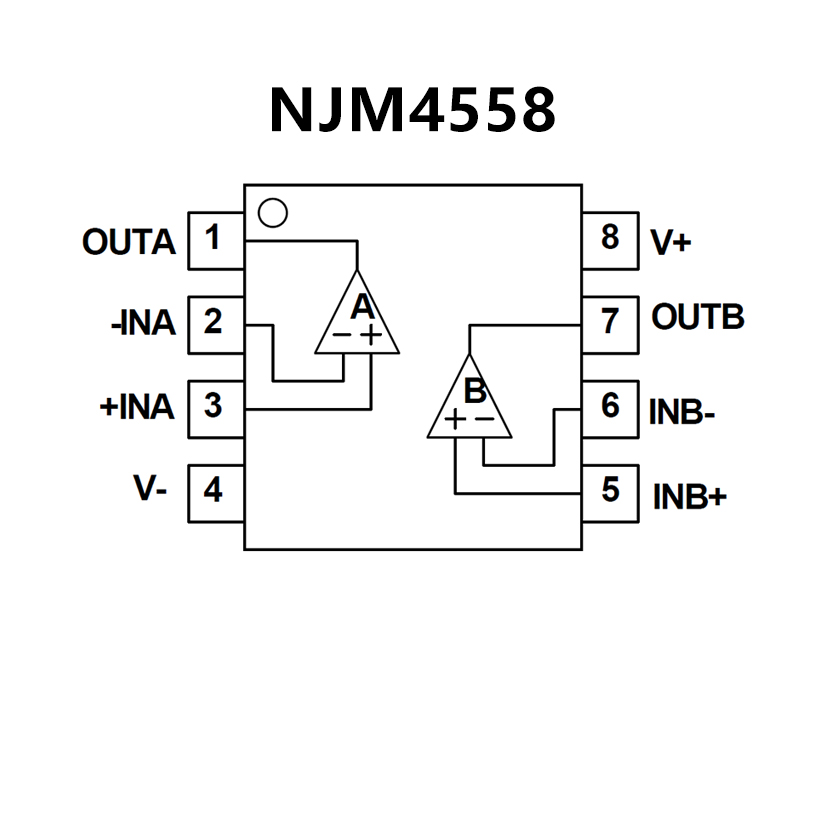

PIN CONFIGUTION
