16 Bit, Ultra Low Power, Voltage Output Digital to Analog Converters, SGM5353 Replace DAC8830.
SGM5353
SGM5353.pdf
SGM5353.pdfFEATURES
? 16-Bit DAC, Monotonicity Guaranteed by Design
? Single-Supply Operation: 3V and 5V
? Settling Time: 1.5μs (TYP)
? Support Unbuffered Voltage-Output Capability
? Power-On Reset to Zero-Scale
? Low Power Consumption: 0.39mW (TYP)
? Low Glitch Impulse: 1.2nV-s
? SPI-Compatible Serial Interface
? Available in a Green SOIC-8 Package

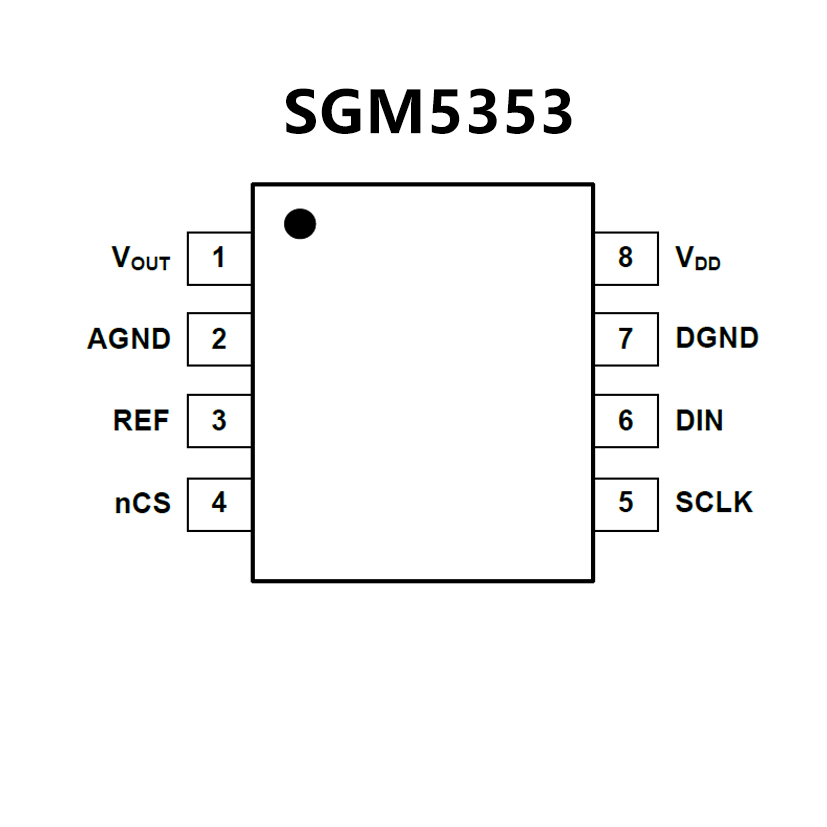

PIN CONFIGUTION
優勢替代
FEATURES
? 16-Bit Resolution
? 2.7 V to 5.5 V Single-Supply Operation
? Very Low Power: 15 μW for 3 V Power
? High Accuracy, INL: 1 LSB
? Low Noise: 10 nV/√Hz
? Fast Settling: 1.0 μS
? Fast SPI? Interface, up to 50 MHz
? Reset to Zero-Code
? Schmitt-Trigger Inputs for Direct Optocoupler Interface
? Industry-Standard Pin Configuration

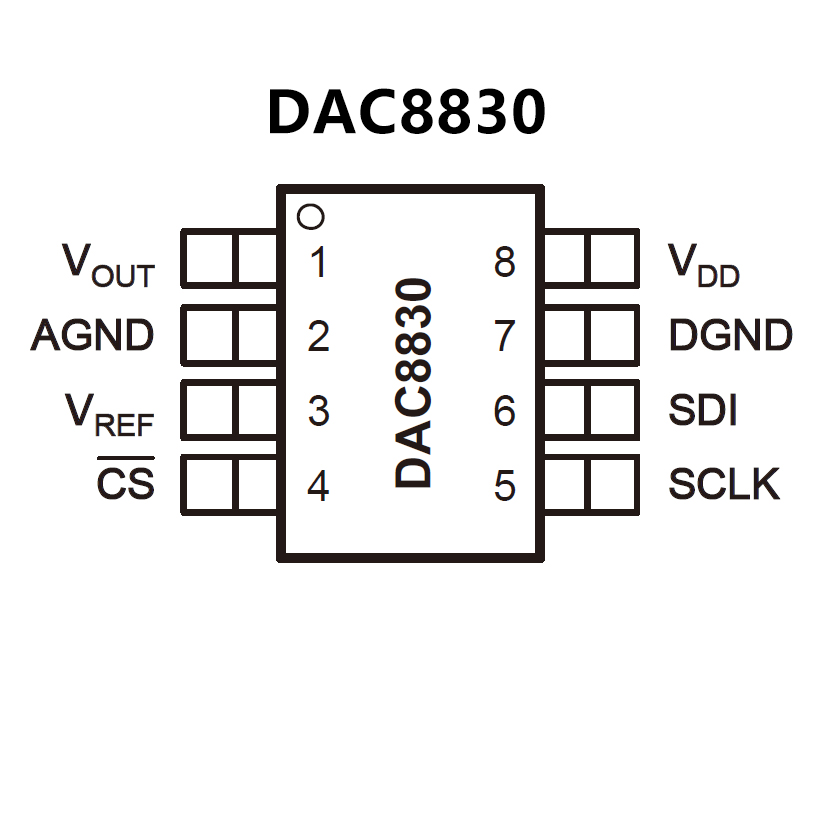

PIN CONFIGUTION
