Automotive, Low-Power, SPI-Compatible, 16-Bit Analog-to-Digital Converter With Internal Reference and Temperature Sensor, P2P ADS1118-Q1.
SGM52410SQ.pdf優(yōu)勢(shì)替代
FEATURES
? AEC-Q100 qualified for automotive applications:
– Temperature grade 1: –40°C to +125°C, TA
? Functional Safety-Capable
– Documentation available to aid functional
safety system design
? Wide supply range: 2 V to 5.5 V
? Low current consumption:
– Continuous mode: only 150 μA
– Single-shot mode: automatic power-down
? Programmable data rate: 8 SPS to 860 SPS
? Single-cycle settling
? Internal low-drift voltage reference
? Internal temperature sensor:
2°C (maximum) error
? Internal oscillator
? Internal PGA
? Four single-ended or two differential inputs

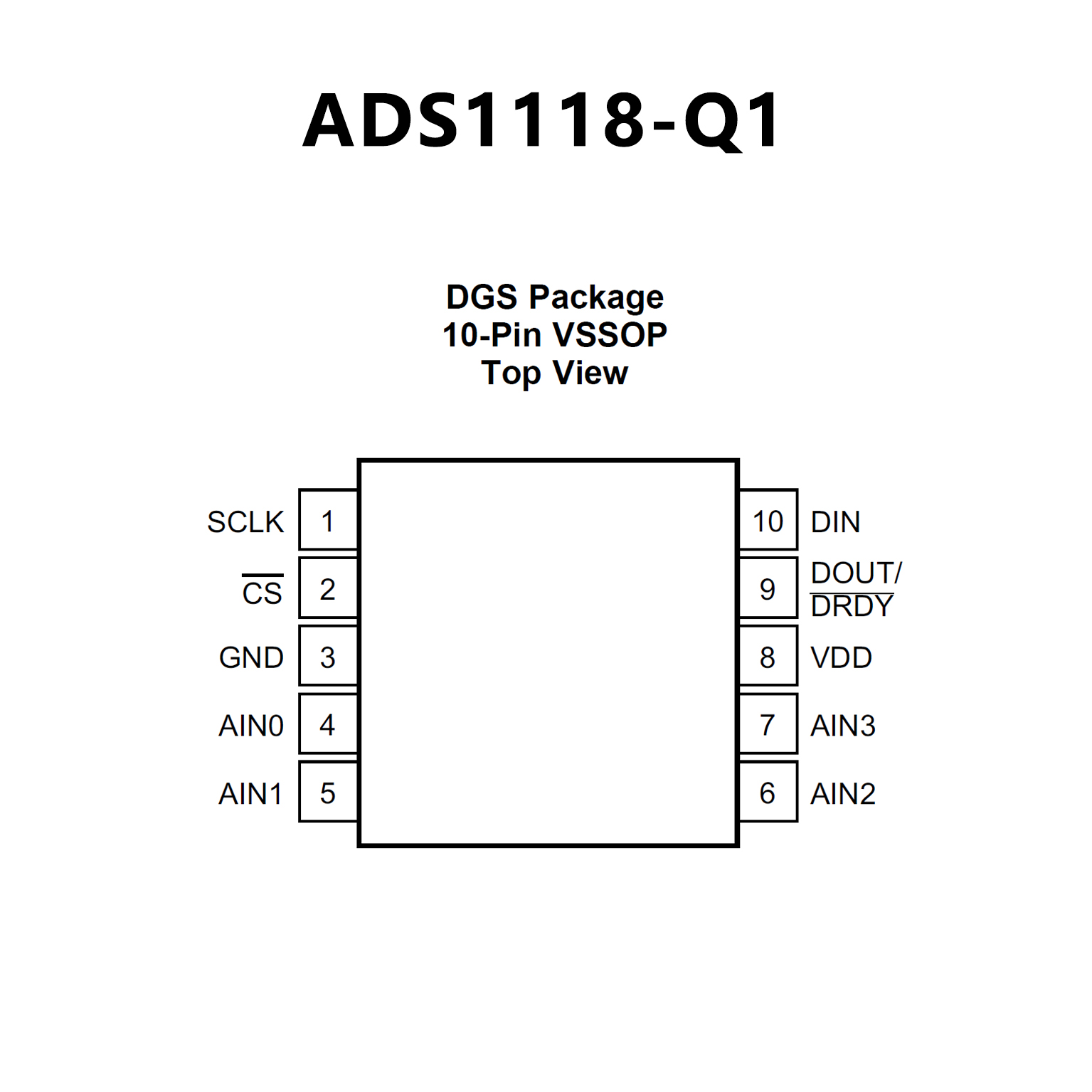

PIN CONFIGUTION
