4-/6-/8-Channel, 16-/14-Bit, Simultaneous-Sampling ADCs, SGM5208 Replace MAX11049ETN.
SGM5208-16.pdf優(yōu)勢替代
FEATURES
? 16-Bit ADC (MAX11047/MAX11048/MAX11049)
? 14-Bit ADC (MAX11057/MAX11058/MAX11059)
? 4-Channel ADC (MAX11047/MAX11057)
? 6-Channel ADC (MAX11048/MAX11058)
? 8-Channel ADC (MAX11049/MAX11059)
? Single Analog and Digital Supply
? High-Impedance Inputs Up to 1G?
? On-Chip T/H Circuit for Each Channel
? Fast 3μs Conversion Time
? High Throughput: 250ksps for Each Channel
? 16-/14-Bit, High-Speed, Parallel Interface
? Internal Clocked Conversions
? 10ns Aperture Delay
? 100ps Channel-to-Channel T/H Matching
? Low Drift, Accurate 4.096V Internal Reference
Providing an Input Range of 0 to 5V
? External Reference Range of 3.0V to 4.25V,
Allowing Full-Scale Input Ranges of +3.7V to +5.2V
? 56-Pin TQFN (8mm x 8mm) and 64-Pin TQFP
(10mm x 10mm) Packages
? Evaluation Kit Available (MAX11046EVKIT+)

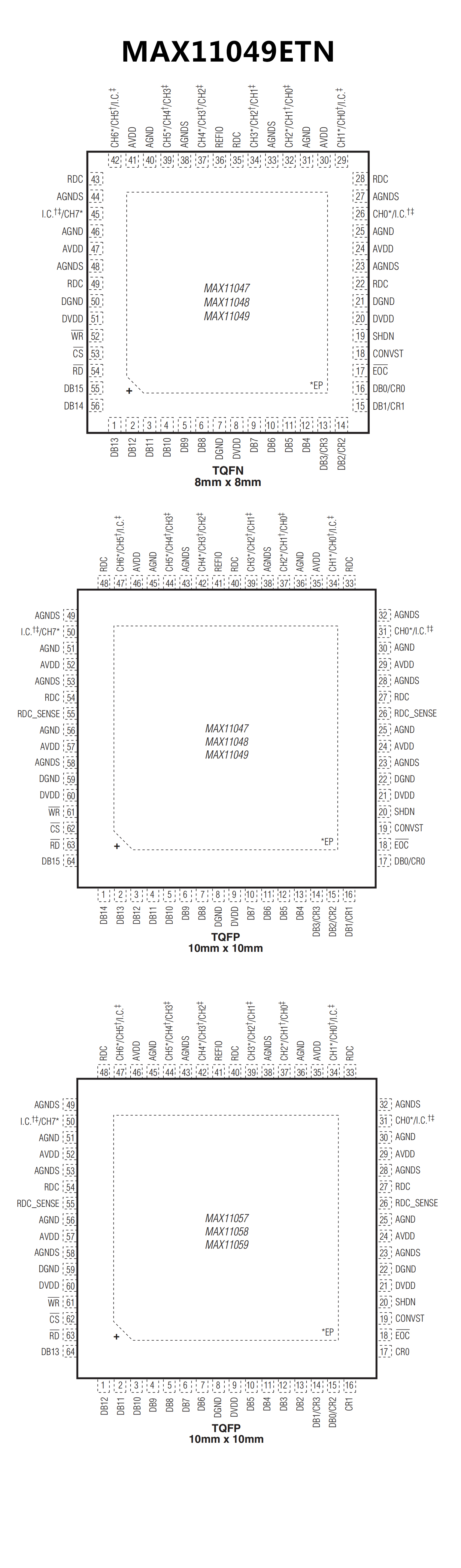

PIN CONFIGUTION
