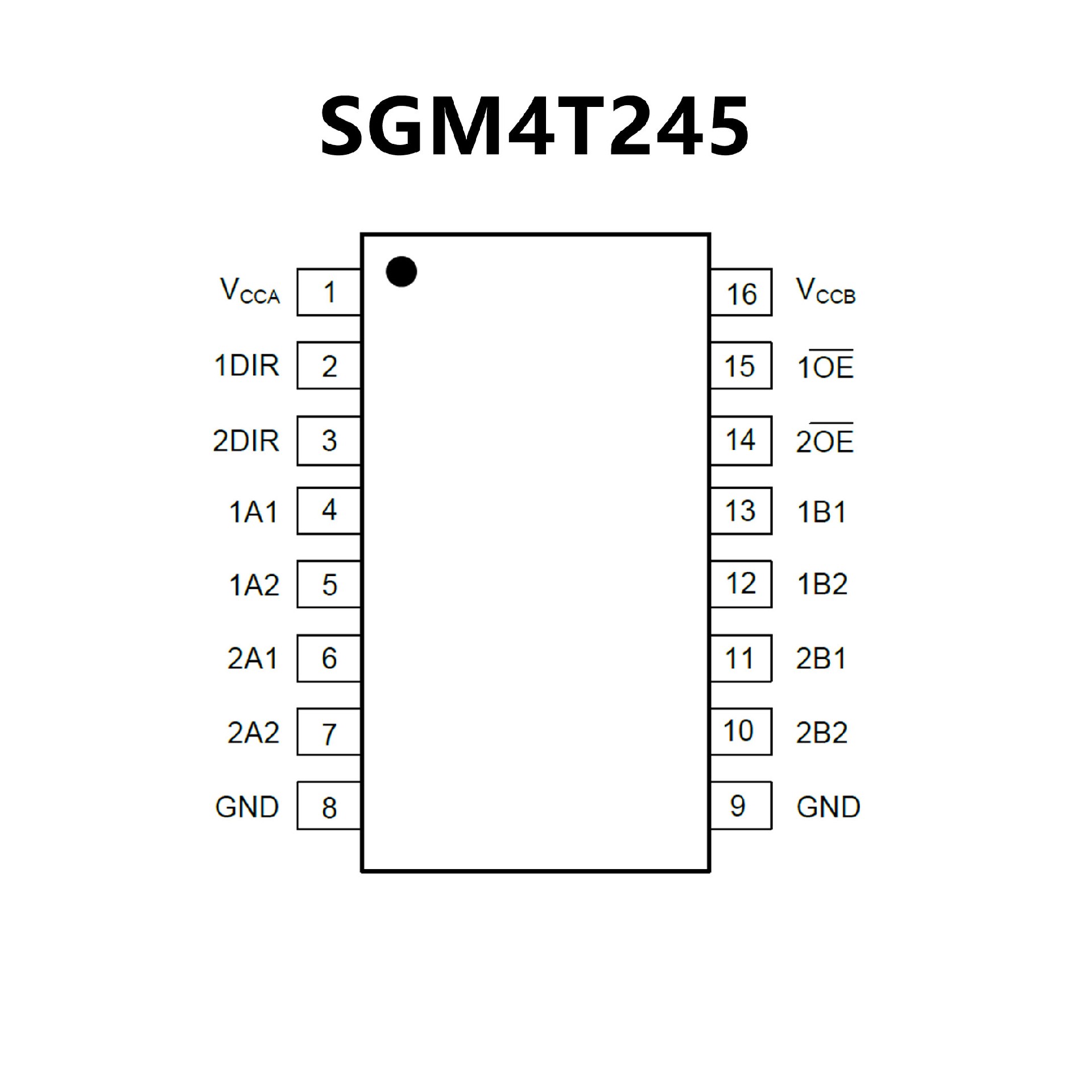

SGM4T245.pdf? Control Inputs VIH/VIL Levels are
Referenced toVCCA Voltage
? VCC Isolation: If Either VCC Input is at GND,
All I/O Ports are in the High-Impedance State
? IOFF: Supports Partial Power-Down Mode Operation
? Fully Configurable Dual-Rail Design Allows
EachPort to Operate Over the Full 1.2V to
5.0VPower-Supply Range
? I/Os are 6.0V Tolerant
? -40℃ to +125℃ Operating Temperature Range
? Available in Green TSSOP-16 and
TQFN-2.6×1.8-16LPackages

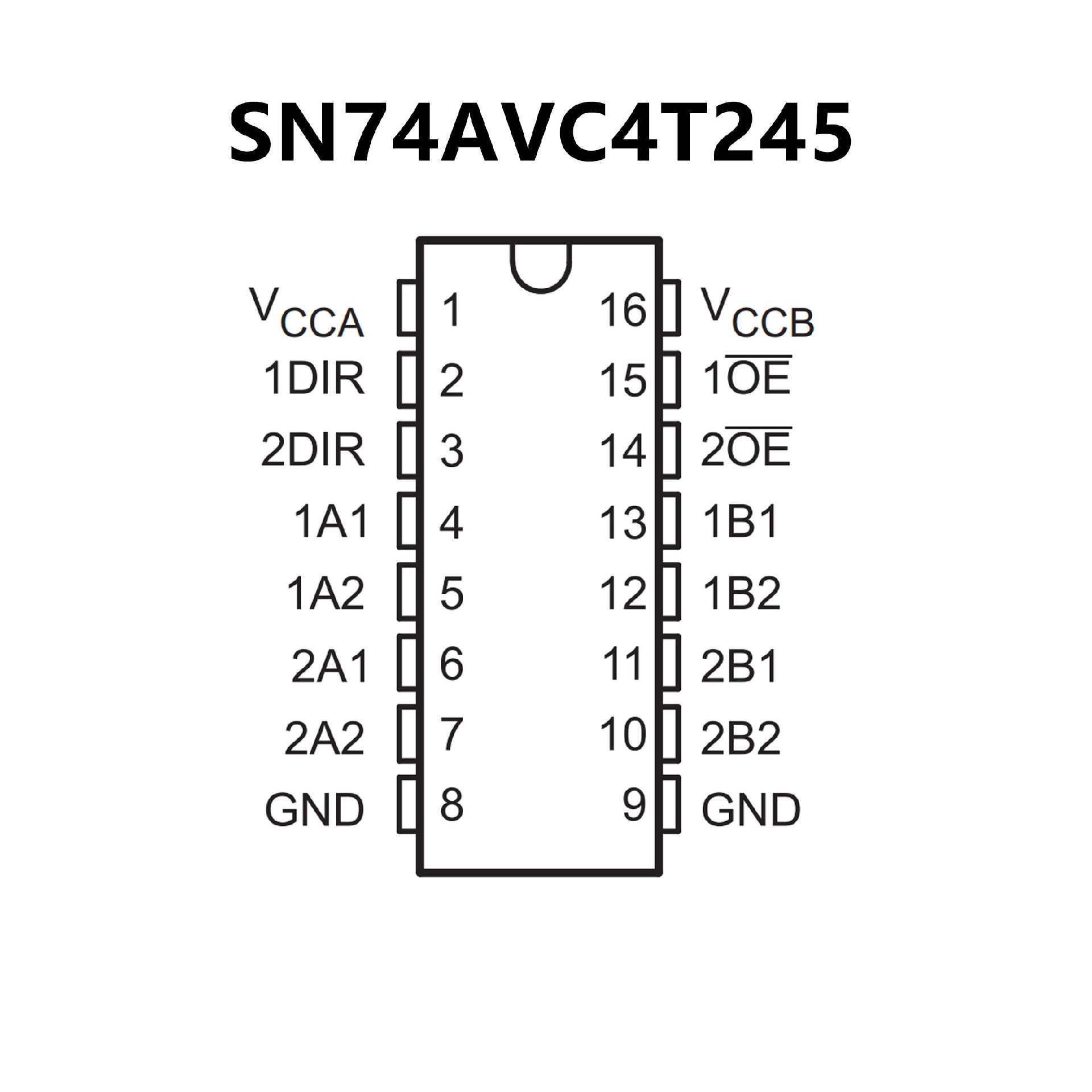

? Control Inputs VIH/VIL Levels Are
Referenced to VCCA Voltage
? Fully Configurable Dual-Rail Design
Allows Each Port to Operate Over the
Full 1.2-V to 3.6-V Power-Supply Range
? I/Os Are 4.6-V Tolerant
? Ioff Supports Partial Power-Down-Mode Operation
? Maximum Data Rates
380 Mbps (1.8-V to 3.3-V Translation)
200 Mbps (< 1.8-V to 3.3-V Translation)
200 Mbps (Translate to 2.5 V or 1.8 V)
150 Mbps (Translate to 1.5 V)
100 Mbps (Translate to 1.2 V)
? Latch-Up Performance Exceeds 100
mA Per JESD 78, Class II
? ESD Protection Exceeds JESD 22
8000-V Human-Body Model (A114-A)
150-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
