SPDT 1Ω Analog Switch, SGM48757 Replace TS5A3157DCKR.
SGM48757
SGM48757.pdf
SGM48757.pdfFEATURES
? Supply Voltage Range: 1.8V to 5.5V
? On-Resistance: 1Ω (TYP) at 4.5V
? -3dB Bandwidth: 72MHz
? High Off-Isolation: -38dB at 10MHz
? Rail-to-Rail Operation
? Low Static Power
? TTL/CMOS Compatible
? Break-Before-Make Switching
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SC70-6, SOT-23-6 and
UTDFN-1.45×1-6AL Packages

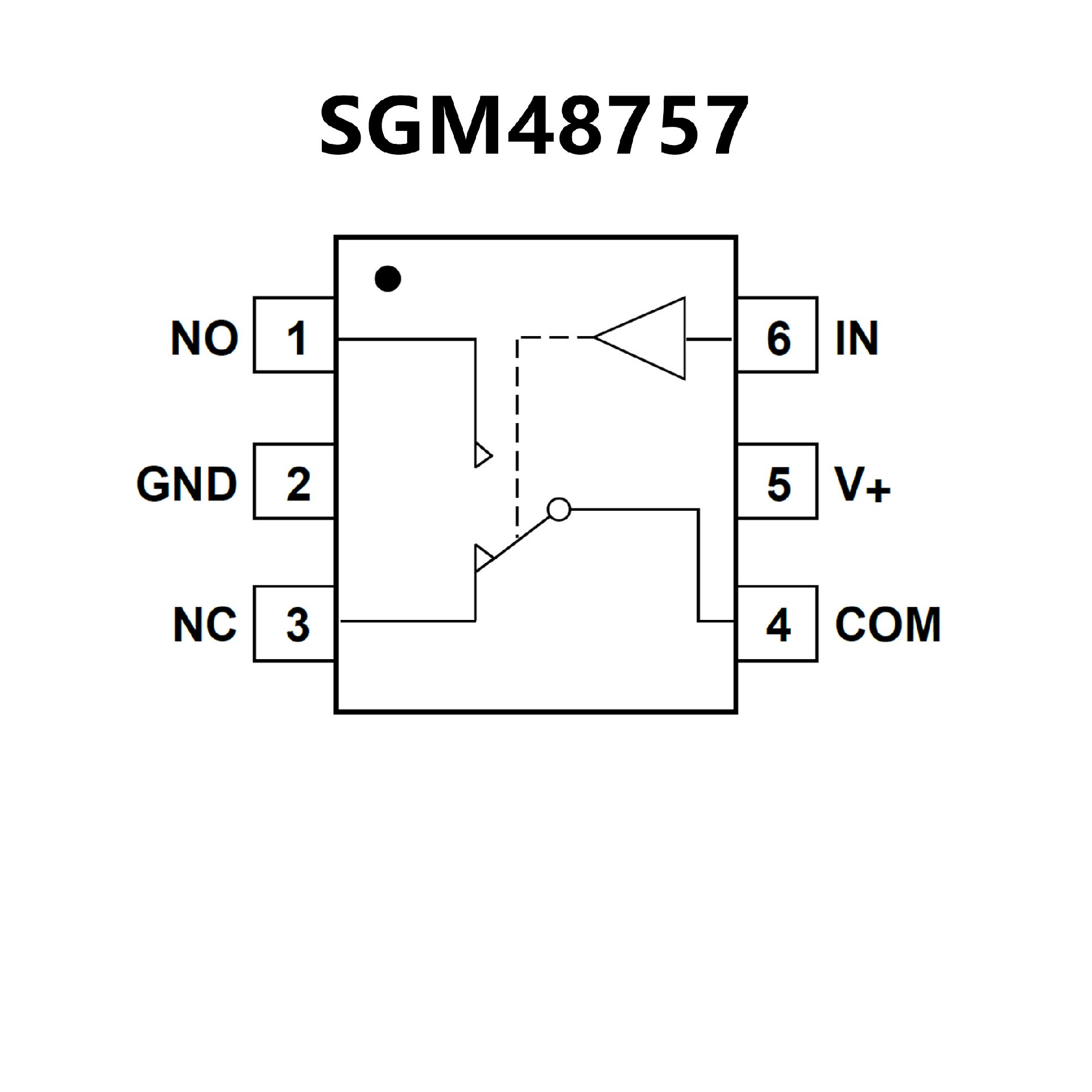

PIN CONFIGUTION
優勢替代
FEATURES
? Low ON-State Resistance (10 ?)
? Control Inputs Are 5-V Tolerant
? Low Charge Injection
? Excellent ON-State Resistance Matching
? Low Total Harmonic Distortion (THD)
? 1.65-V to 5.5-V Single-Supply Operation
? Latch-Up Performance Exceeds 100 mA
Per JESD 78, Class II
? ESD Performance Tested Per JESD 22
2000-V Human-Body Model
(A114-B, Class II)
1000-V Charged-Device Model (C101)

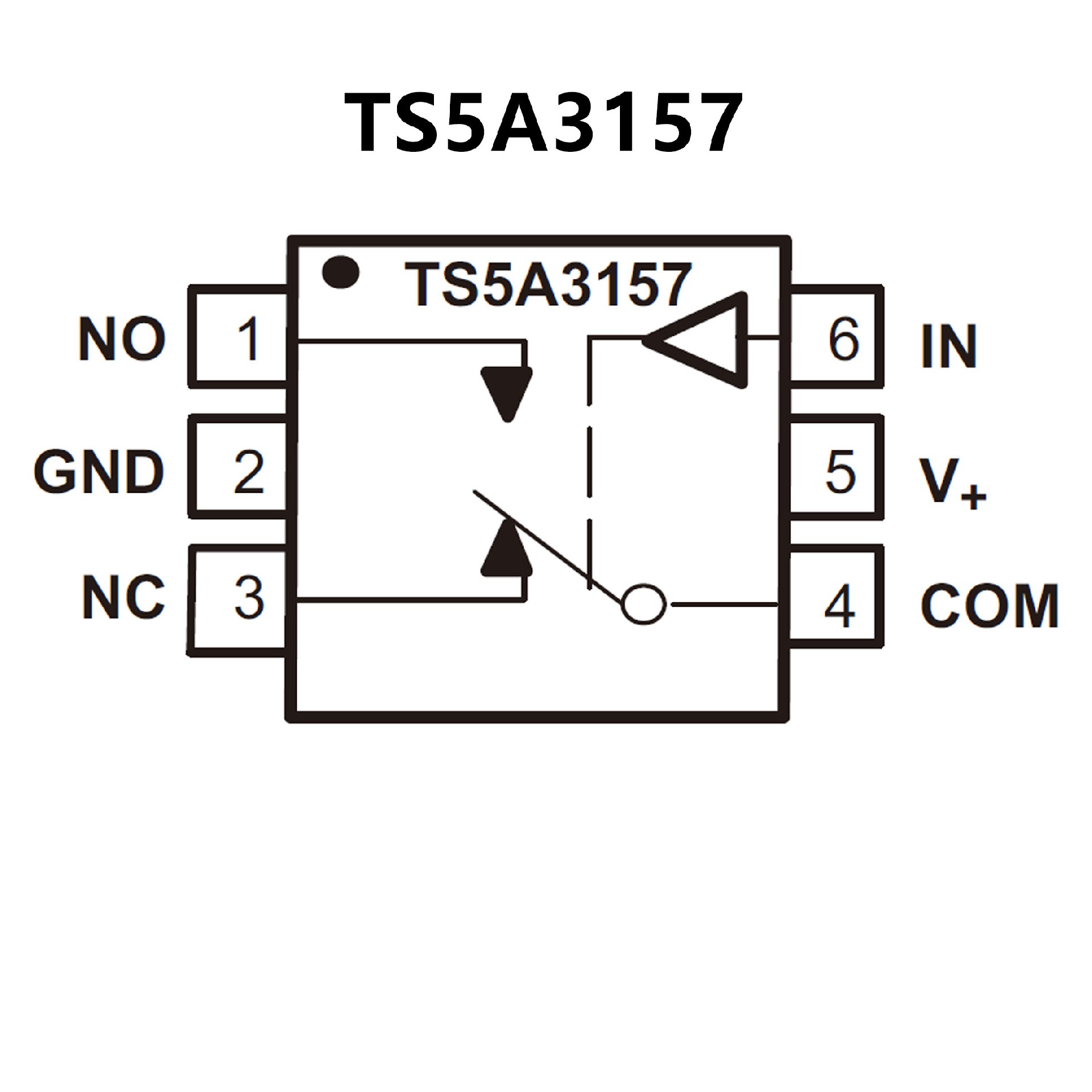

PIN CONFIGUTION
