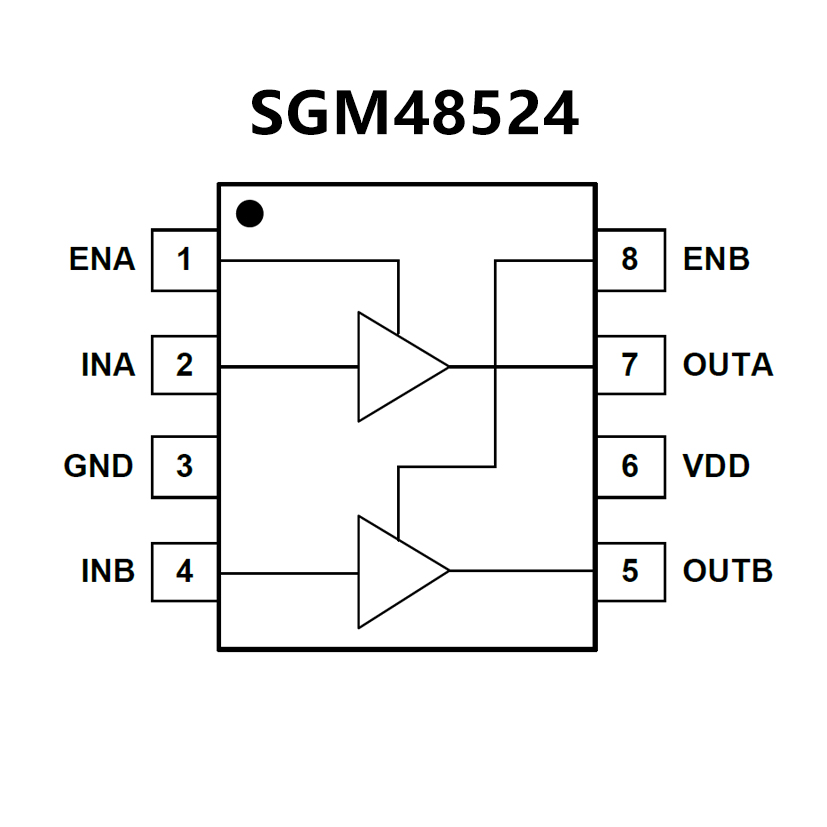

SGM48524(MSOP-8).pdf? Two Independent Gate Drive Channels
? 5A Source and 5A Sink Peak Currents
? Wide Supply Voltage Range: 4.5V to 18V
? TTL and CMOS Compatible Logic Threshold
? Logic Levels Independent of Supply Voltage
? Hysteretic Input Logic for High Noise Immunity
? Outputs Held Low When Inputs are Floating
? Fast Propagation Delays: 18ns (TYP)
? Fast Rise Time: 7ns (TYP)
? Fast Fall Time: 7ns (TYP)
? Ringing Suppression
? Negative Voltage Capability on INx Pins:
-10V when (VDD - VINx) ≤ 20V
? Negative Voltage Capability on ENx Pins:
-10V when (VDD - VENx) ≤ 20V
? Negative Voltage Capability on OUTx Pin:
-2V (Pulse < 200ns)
? Comprehensive Protection Features
Thermal Shutdown Protection
Under-Voltage Lockout
Short-Circuit Protection
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8, MSOP-8 (Exposed
Pad) and TDFN-3×3-8L Packages

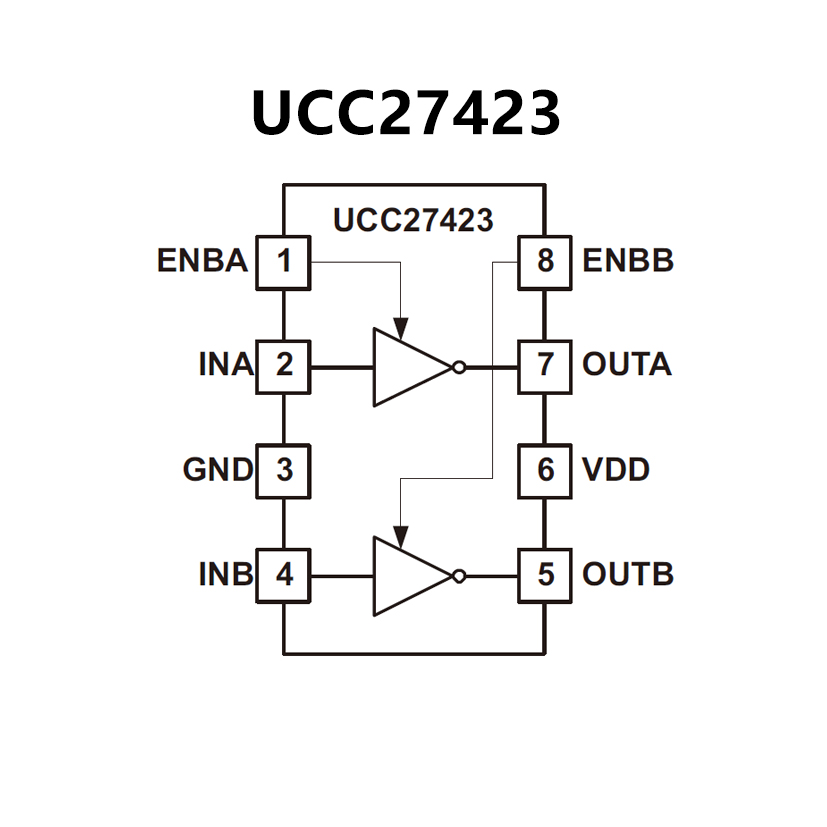

? Industry-Standard Pin-Out
? Enable Functions for Each Driver
? High Current Drive Capability of ±4 A
? Unique BiPolar and CMOS True Drive Output
Stage Provides High Current at
MOSFET Miller Thresholds
? TTL/CMOS Compatible Inputs
Independent of Supply Voltage
? 20-ns Typical Rise and 15-ns Typical
Fall Times with 1.8-nF Load
? Typical Propagation Delay Times of 25 ns with
Input Falling and 35 ns with Input Rising
? 4-V to 15-V Supply Voltage
? Dual Outputs Can Be Paralleled
for Higher Drive Current
? Available in Thermally Enhanced
MSOP PowerPAD? Package
? Rated From –40°C to 125°C
