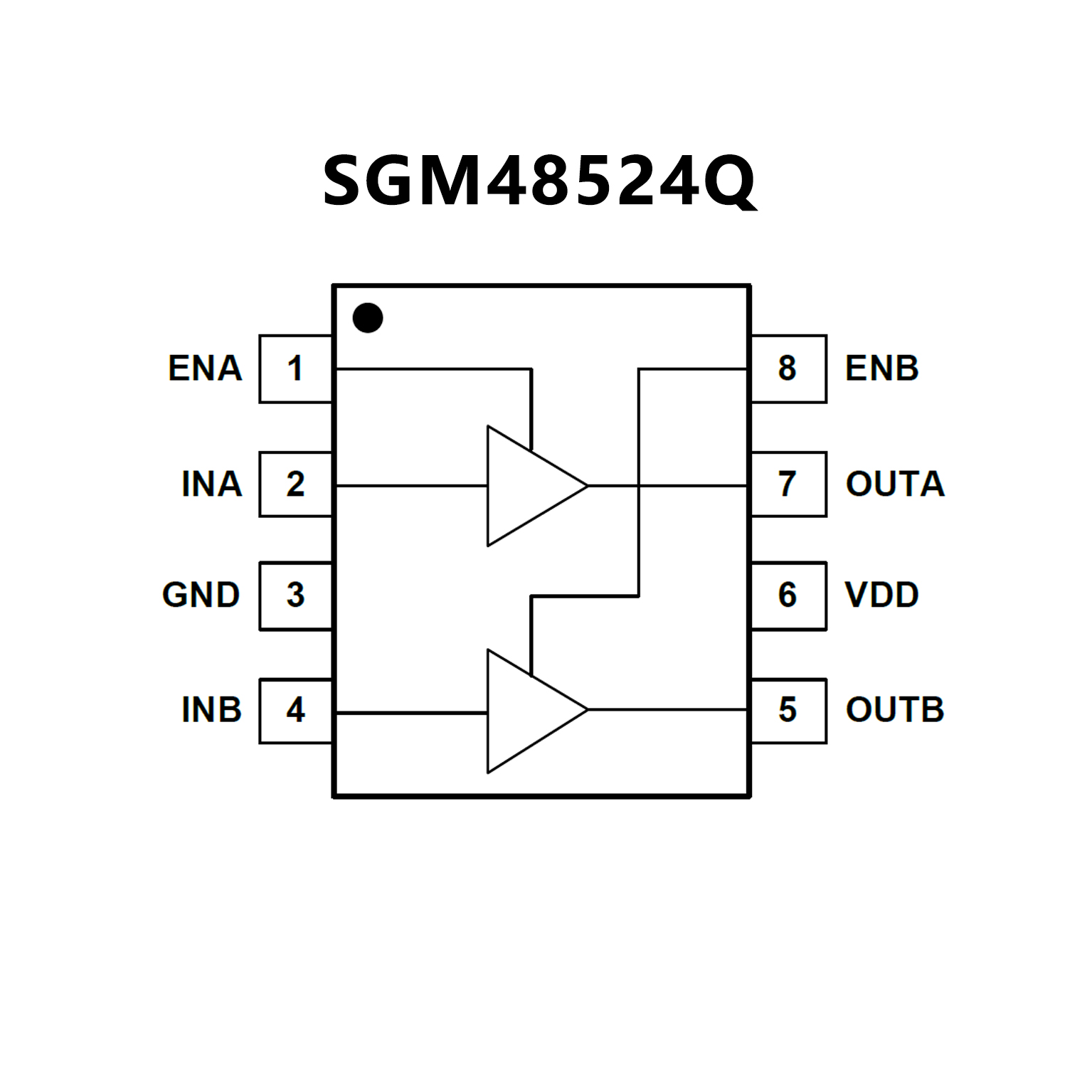

SGM48524Q.pdf? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
? TA = -40℃ to +125℃
? Two Independent Gate Drive Channels
? 4.5V to 18V Single Supply Range (VDD)
? 5A Peak Source/Sink Pulse Current Drive
? Independent Enable Pin for Each Channel
? TTL and CMOS Compatible Logic Threshold
? Logic Levels Independent of Supply Voltage
? Hysteretic Input Logic for High Noise Immunity
? Outputs are Logic Low when Inputs are Floating
? Negative Voltage Handling Capability:
-8V DC at Inputs
-2V, 200ns Pulse for Outputs (OUTx)
? Glitch-Free Operation at Power-Up and Power-
Down: Outputs Pulled Low during Supply UVLO
? Fast Propagation Delays: 18ns (TYP)
? Fast Rise Time: 7ns (TYP)
? Fast Fall Time: 8ns (TYP)
? Delay Matching between Two Channels: 1ns (TYP)
? Channels can be Paralleled for Higher Drive Current
? Available in a Green SOIC-8 Package
? Qualified for Automotive Applications

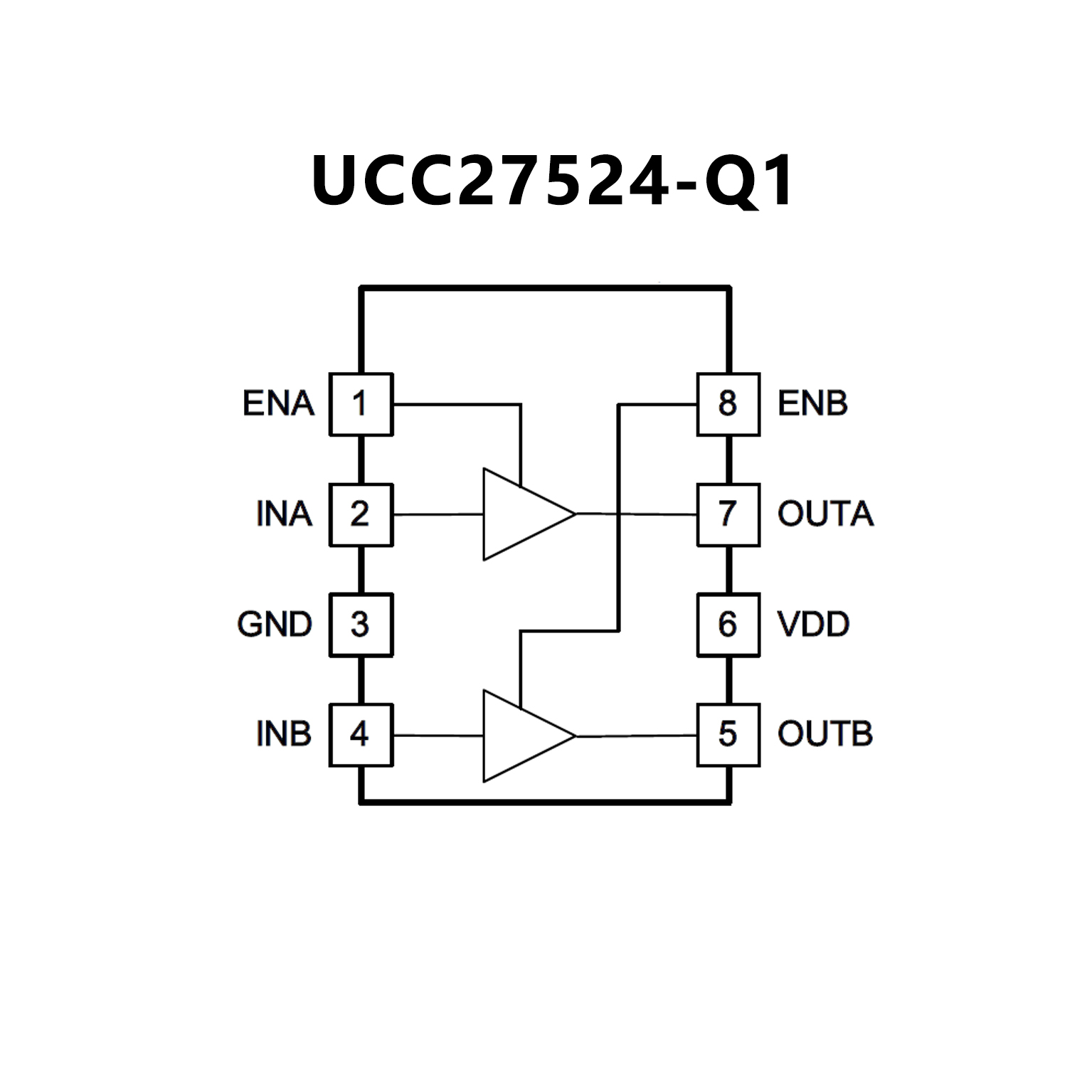

? AEC-Q100 Qualified With the Following Results
Device Temperature Grade 1
Device HBM ESD Classification Level H2
Device CDM ESD Classification Level C4B
? Industry-Standard Pin Out
? Two Independent Gate-Drive Channels
? 5-A Peak Source and Sink-Drive Current
? Independent Enable Function for Each Output
? TTL and CMOS-Compatible Logic
Threshold Independent of Supply Voltage
? Hysteretic-Logic Thresholds for High-Noise Immunity
? Ability to Handle Negative Voltages (–5 V) at Inputs
? Inputs and Enable Pin-Voltage Levels
Not Restricted by VDD Pin Bias Supply Voltage
? 4.5-V to 18-V Single-Supply Range
? Outputs Held Low During VDD-UVLO,
(ensures glitch-free operation at power-up and power-down)
? Fast Propagation Delays (13-ns typical)
? Fast Rise and Fall Times (7-ns and 6-ns typical)
? 1-ns Typical Delay Matching Between 2-Channels
Ability to Parallel Two Outputs for High-Drive Current
? Outputs Held in LOW When Inputs are Floating
SOIC-8 and MSOP-8 PowerPad? Package Options
? Operating Temperature Range of –40°C to 140°C
