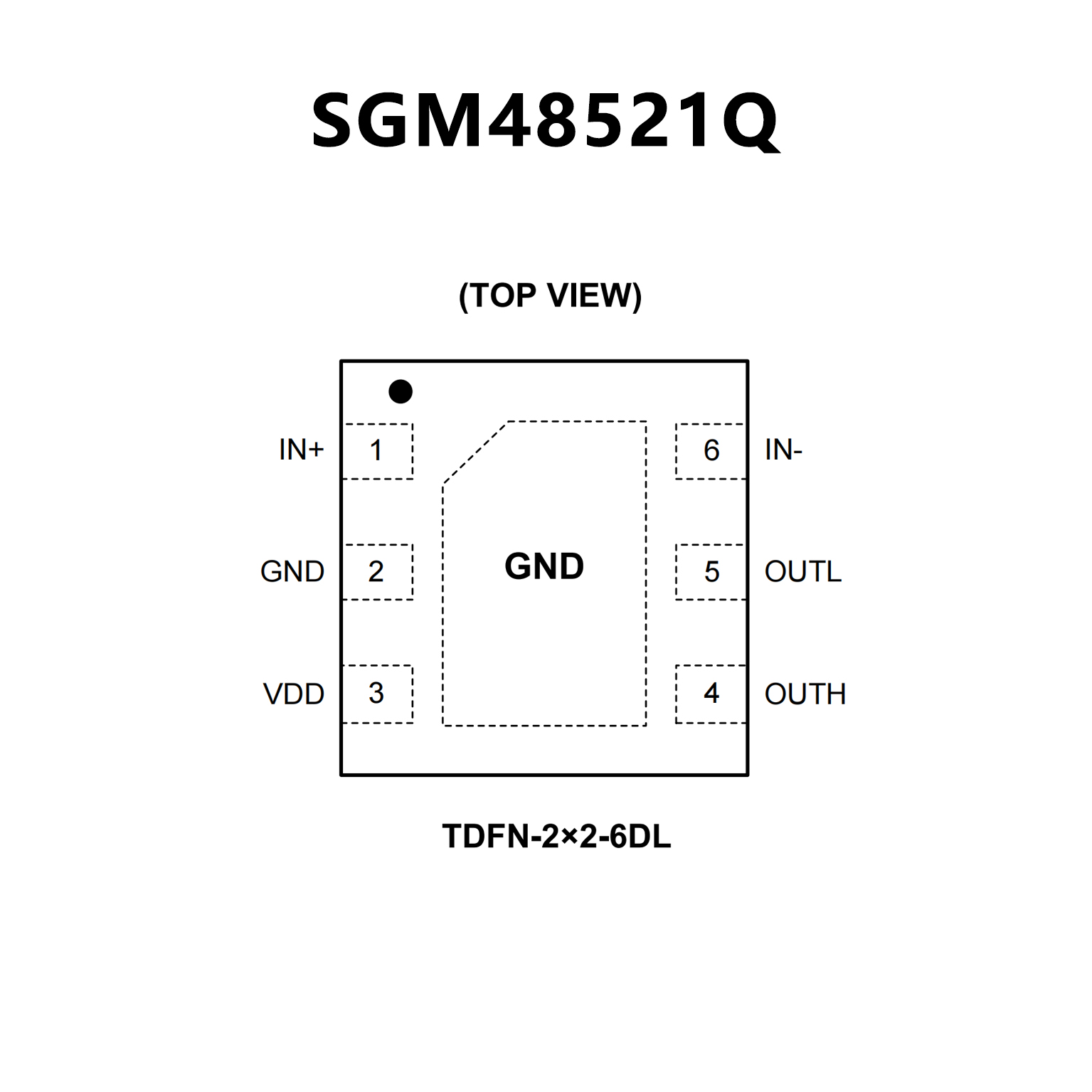

SGM48521Q.pdf? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? 5V Supply Voltage
? 7A Peak Source and 6A Peak Sink Currents
? Ultra-Fast, Low-side Gate Driver for GaN and Si
FETs
? Minimum Input Pulse Width: 1ns
? Up to 60MHz Operation
? Propagation Delay: 2.2ns (TYP), 3.5ns (MAX)
? Rise Time:
WLCSP-0.88×1.28-6B: 500ps (TYP)
TDFN-2×2-6DL: 600ps (TYP)
? Fall Time:
WLCSP-0.88×1.28-6B: 460ps (TYP)
TDFN-2×2-6DL: 590ps (TYP)
? Protection Features:
Under-Voltage Lockout (UVLO)
Over-Temperature Protection (OTP)
? Available in Green WLCSP-0.88×1.28-6B and
TDFN-2×2-6DL Packages

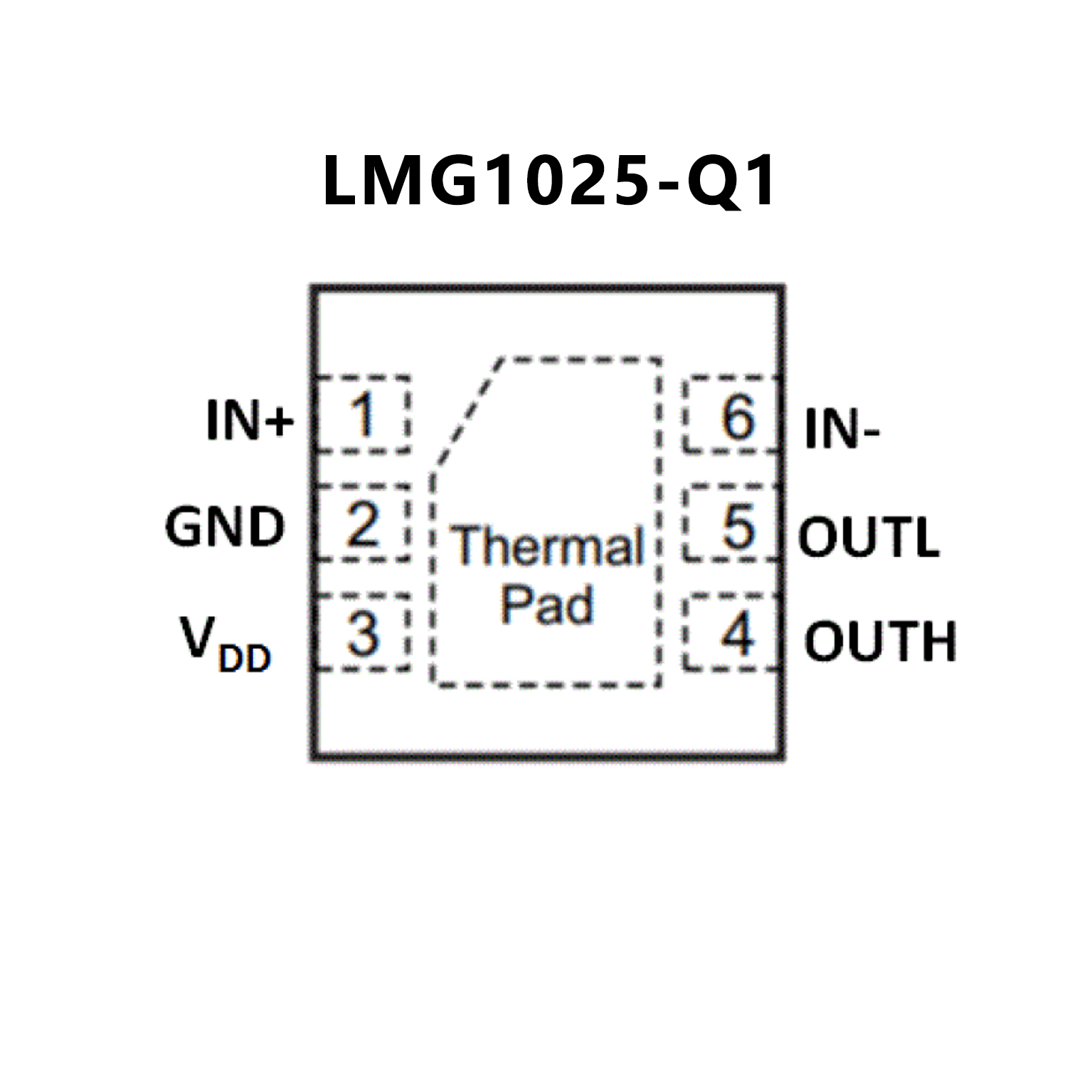

? AEC-Q100 grade 1 qualified
? 1.25-ns typical minimum input pulse width
? 2.6-ns typical rising propagation delay
? 2.9-ns typical falling propagation delay
? 300-ps typical pulse distortion
? Independent 7-A pull-up and 5-A pull-down current
? 650-ps typical rise time (220-pF load)
? 850-ps typical fall time (220-pF load)
? 2-mm x 2-mm QFN package
? Inverting and non-inverting inputs
? UVLO and over-temperature protection
? Single 5-V supply voltage
