8-CH/Dual 4-CH High-Performance CMOS Analog Multiplexers,SGM4588YS16GTR-Replace-ADG1208YRZ.
SGM4588YS16
SGM4588YS16.pdf
SGM4588YS16.pdfFEATURES
? Low On-Resistance: 22?
? Low Charge Injection: 15pC
? Fast Transition Time: 160ns
? Single Supply Capability
? 40V Supply Max Rating
? 1.8V Control Logic
? Reduced Switching Errors
? Reduced Glitching
? Improved Data Throughput
? Reduced Power Consumption
? Increased Ruggedness
? Wide Supply Ranges: ±4.5V to ±20V
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-16 and TSSOP-16
Packages

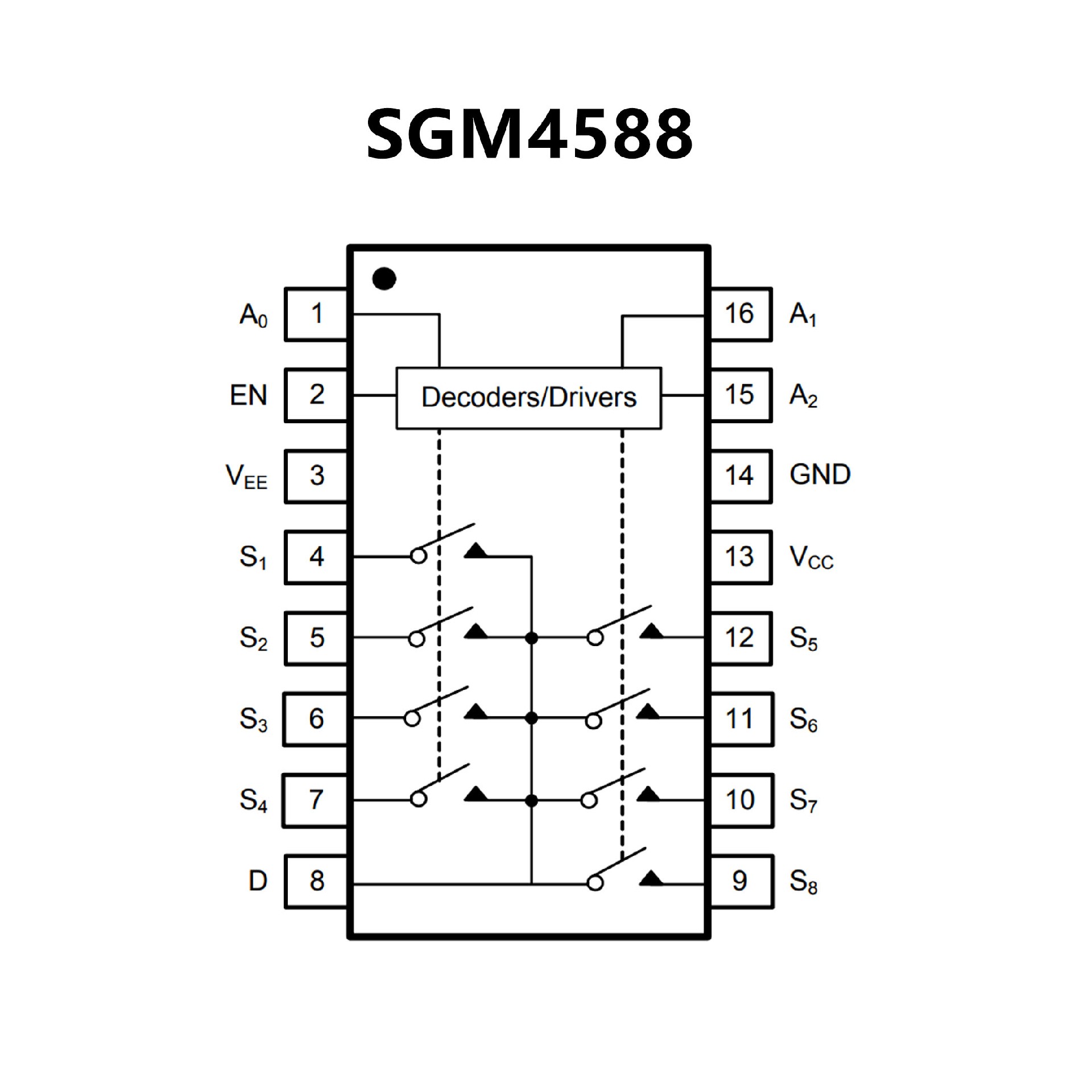

PIN CONFIGUTION
優勢替代
FEATURES
? <1 pC charge injection over full signal range
? 1 pF off capacitance
? 33 V supply range
? 120 ? on resistance
? Fully specified at ±15 V/+12 V
? 3 V logic compatible inputs
? Rail-to-rail operation
? Break-before-make switching action
? Available in a 16-lead TSSOP, a 16-lead LFCSP, and a
? 16-lead SOIC
? Typical power consumption < 0.03 μW

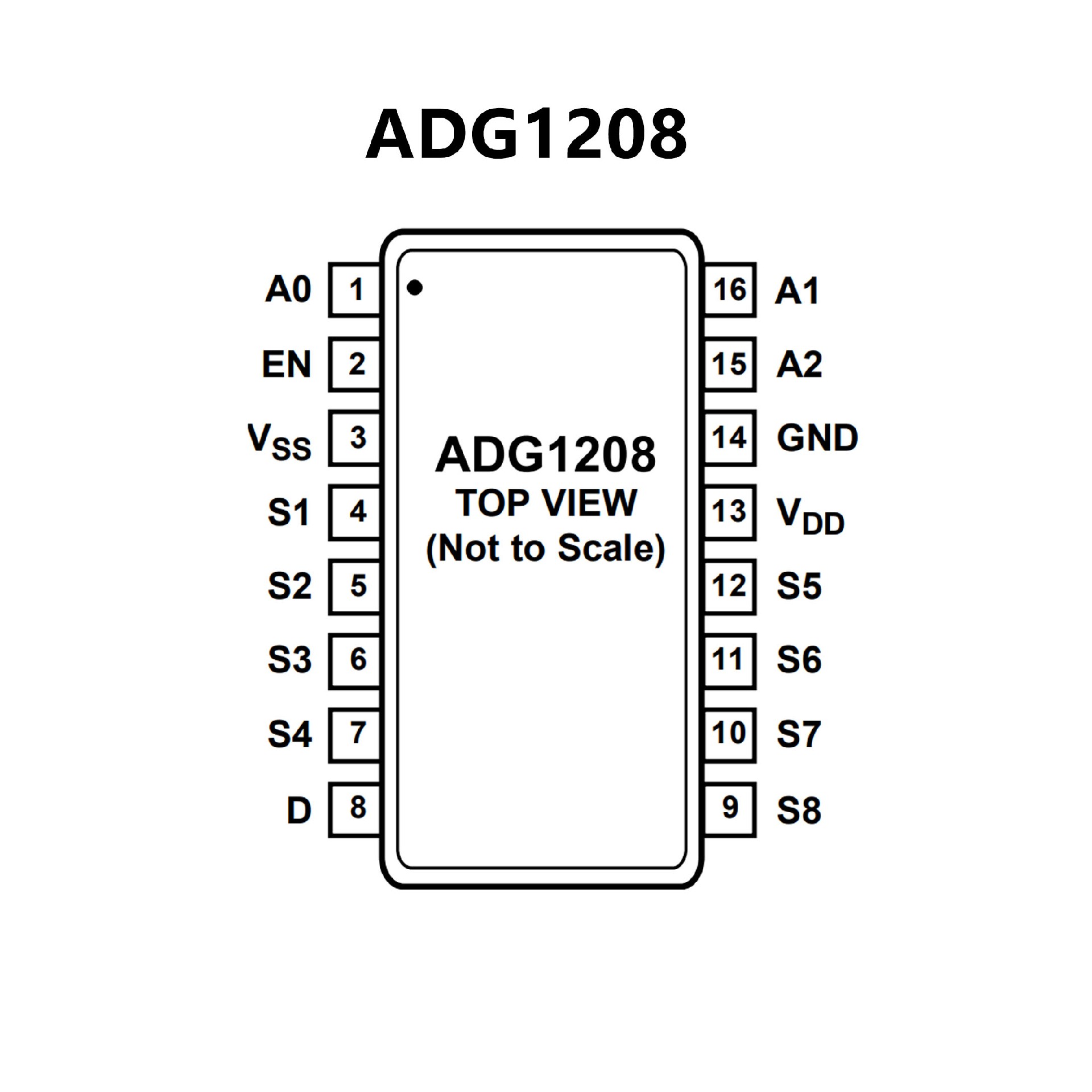

PIN CONFIGUTION
