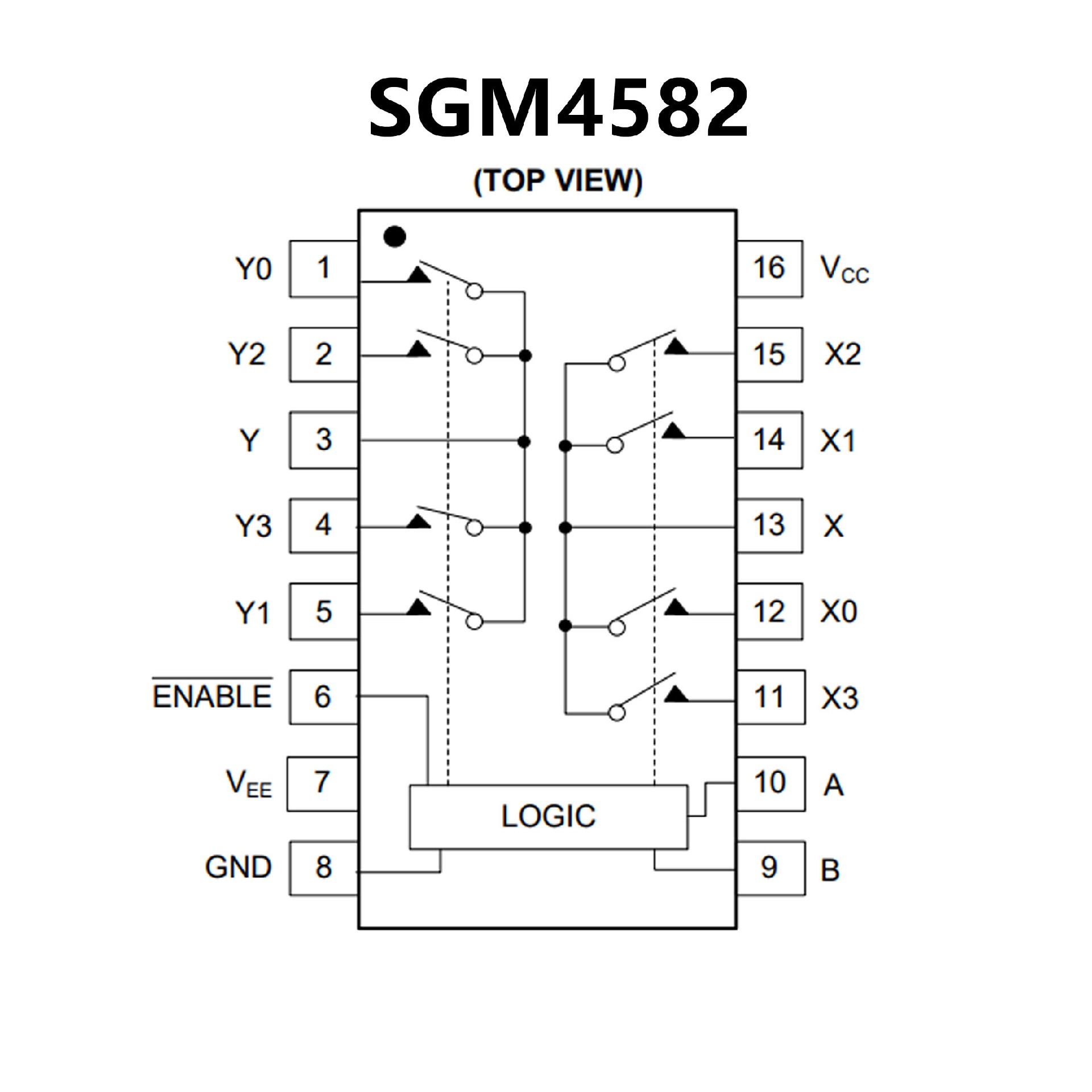

SGM4582.pdf? Guaranteed On-Resistance51Ω with
±5V Supplies84Ω with Single +5V Supply
? Guaranteed On-Resistance Match BetweenChannels
? Low Off-Leakage Current 10nA at +25℃
? Low On-Leakage Current 10nA at +25℃
? ±1.8V to ±5.5V Dual-Supply Operation
+3.6V to +11V Single-Supply Operation
? TTL/CMOS-Logic Compatible
? Low Distortion: 0.08%
(RL = 600Ω, f = 20Hz to 20kHz)
? High Off-Isolation: -66dB
(RL = 50Ω, f = 1MHz)
? Low Crosstalk: -100dB
(RL = 50Ω, f = 1MHz)
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-16, SSOP-16,
TSSOP-16and TQFN-3×3-16L Packages

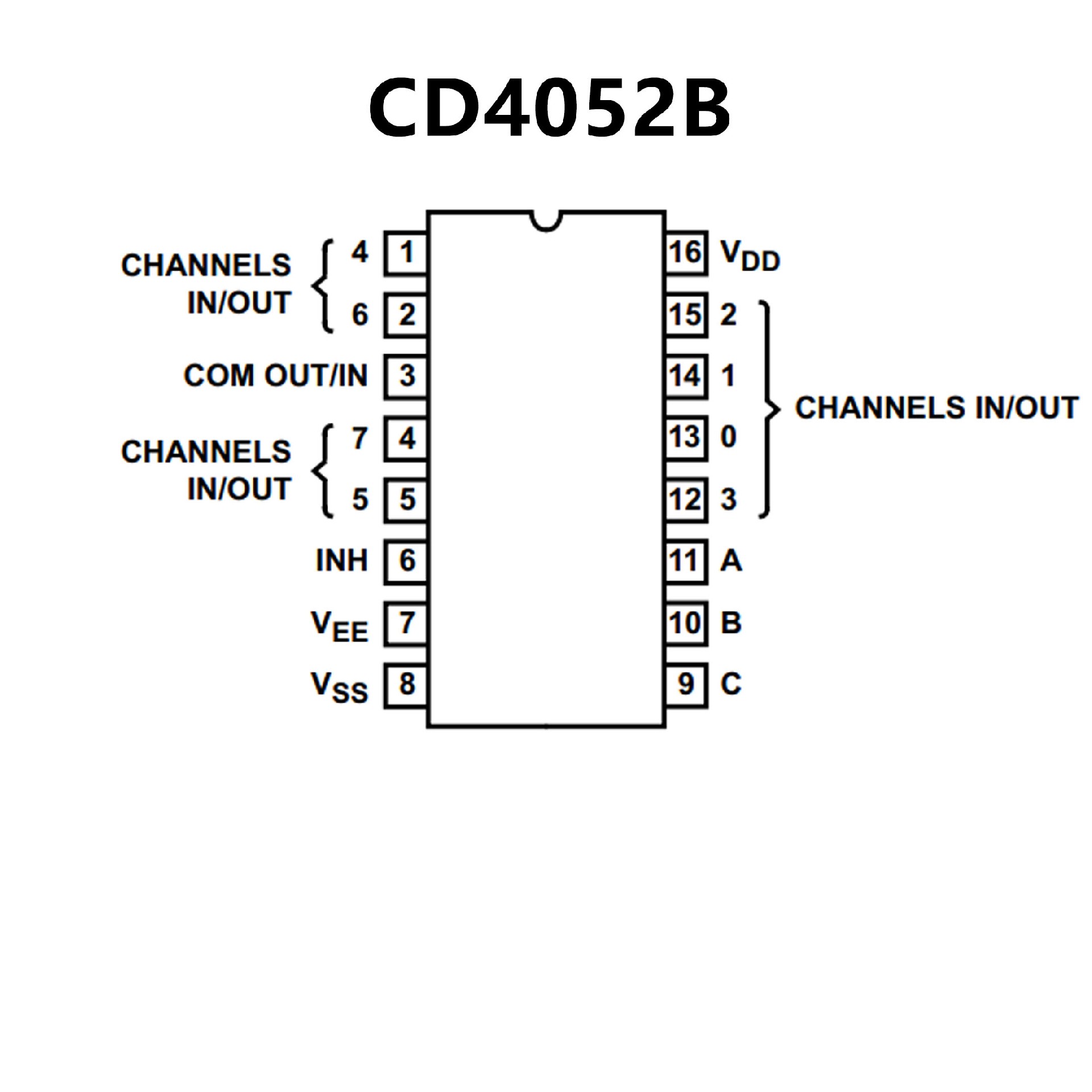

? Wide Range of Digital and Analog Signal Levels
Digital: 3 V to 20 V– Analog: ≤ 20 VP-P
? Low ON Resistance, 125 ? (Typical) Over
15 VP-PSignal Input Range for VDD – VEE = 18 V
? High OFF Resistance, Channel Leakage
of±100 pA (Typical) at VDD – VEE = 18 V
? Logic-Level Conversion for Digital Addressing
Signals of 3 V to 20 V (VDD – VSS = 3 V to 20 V)
to Switch Analog Signals to 20 VP-P (VDD – VEE =20 V)
Matched Switch Characteristics, rON = 5 ?(Typical)
for VDD – VEE = 15 V Very Low QuiescentPower
Dissipation Under All Digital-Control Inputand
Supply Conditions, 0.2 μW (Typical) at
VDD – VSS = VDD – VEE = 10 V
? Binary Address Decoding on Chip
? 5 V, 10 V, and 15 V Parametric Ratings
? 100% Tested for Quiescent Current at 20 V
? Maximum Input Current of 1 μA at 18 V
Over FullPackage Temperature Range,
100 nA at 18 V and25°C
? Break-Before-Make Switching
Eliminates ChannelOverlap
