1-bit bidirectional multi-voltage level translator; open-drain; push-pul, SGM4569-1 Replace LSF0101GM.
SGM4569-1.pdf優勢替代
FEATURES
? Bidirectional voltage translation with no direction pin
? Up translation
? ≤ 100 MHz; CL = 30 pF
? ≤ 50 MHz; CL = 50 pF
? Down translation
? ≥ 100 MHz; CL = 30 pF
? ≥ 50 MHz; CL = 50 pF
? Hot insertion
? Bidirectional voltage level translation between:
? 0.95 V and 1.8 V, 2.5 V, 3.3 V and 5.0 V
? 1.2 V and 1.8 V, 2.5 V, 3.3 V and 5.0 V
? 1.8 V and 2.5 V, 3.3 V and 5.0 V
? 2.5 V and 3.3 V and 5.0 V
? 3.3 V and 5.0 V
? Low standby current
? 5 V tolerant I/O pins to support TTL
? Low RON provides less signal distortion
? High-impedance I/O pins for EN = Low.
? Flow-through pinout for easy PCB trace routing.
? Latch-up performance exceeds 100 mA per JESD78
class II level A
? ESD protection:
? HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000V
? CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000V
? Multiple package options
? Specified from -40 °C to +125 °C

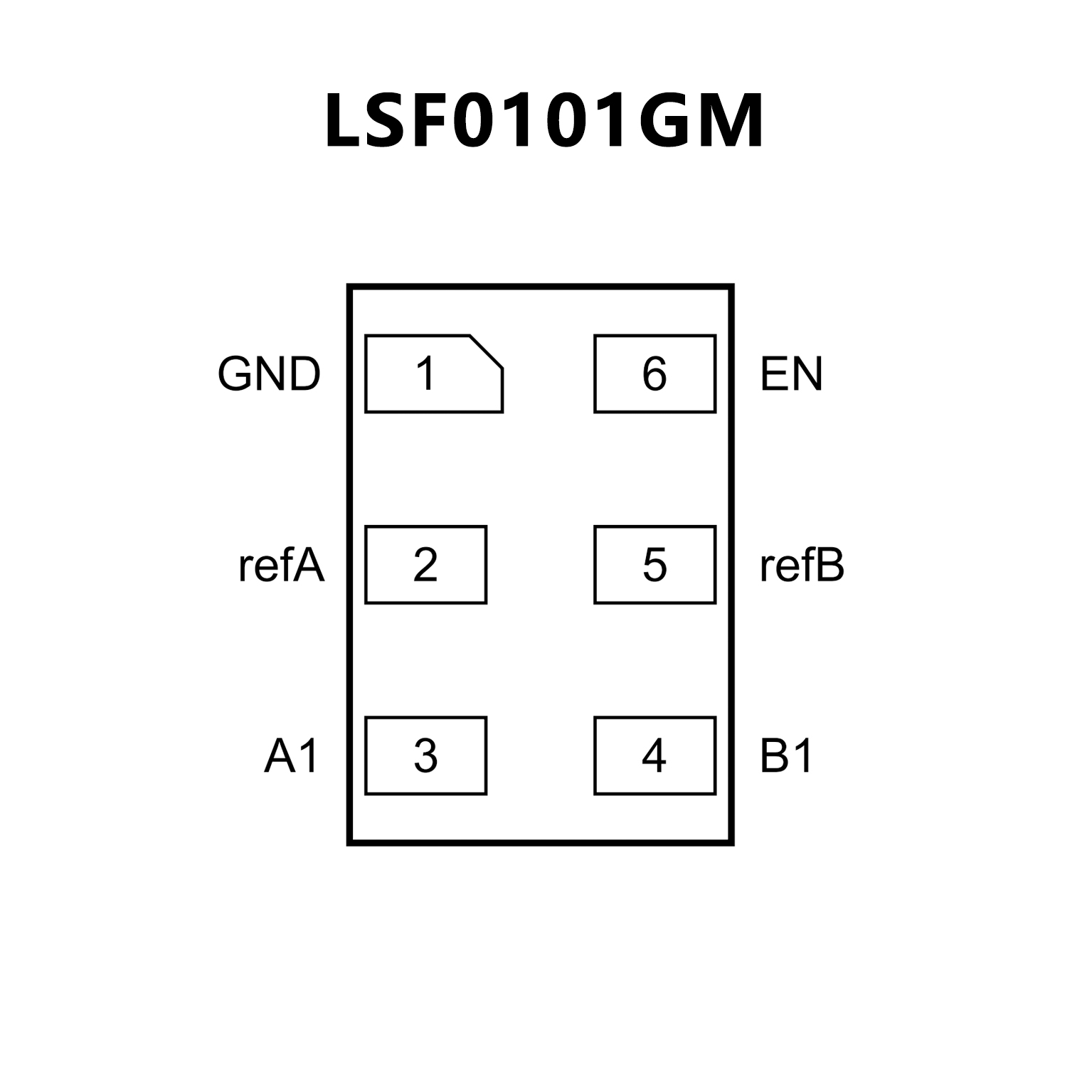

PIN CONFIGUTION
