Digital Temperature Sensor and Thermal Watchdog with Two-Wire Interface,SGM452TMS8G Replace VT39120032.
SGM452TMS8G
SGM452TMS8G.pdf
SGM452TMS8G.pdfFEATURES
? No External Components Required
? Shutdown Mode to Minimize Power Consumption
? Up to Eight SGM452 Devices can
be Connected to a Single Bus
? Power-Up Defaults Permit Stand-Alone
Operation as Thermostat
? Power Supply Voltage Range: 2.7V to 5.5V
? Support 1.8V I2C Bus Voltage at 3.3V Power Supply
? Low Quiescent Current: 49μA (TYP)
? Shutdown Mode Current: 0.4μA (TYP)
? Temperature Accuracy:
-55℃ to +125℃: ±1.2℃ (MAX)
? Operating Temperature Range: -55℃ to +125℃
? Available in Green SOIC-8 and MSOP-8 Packages

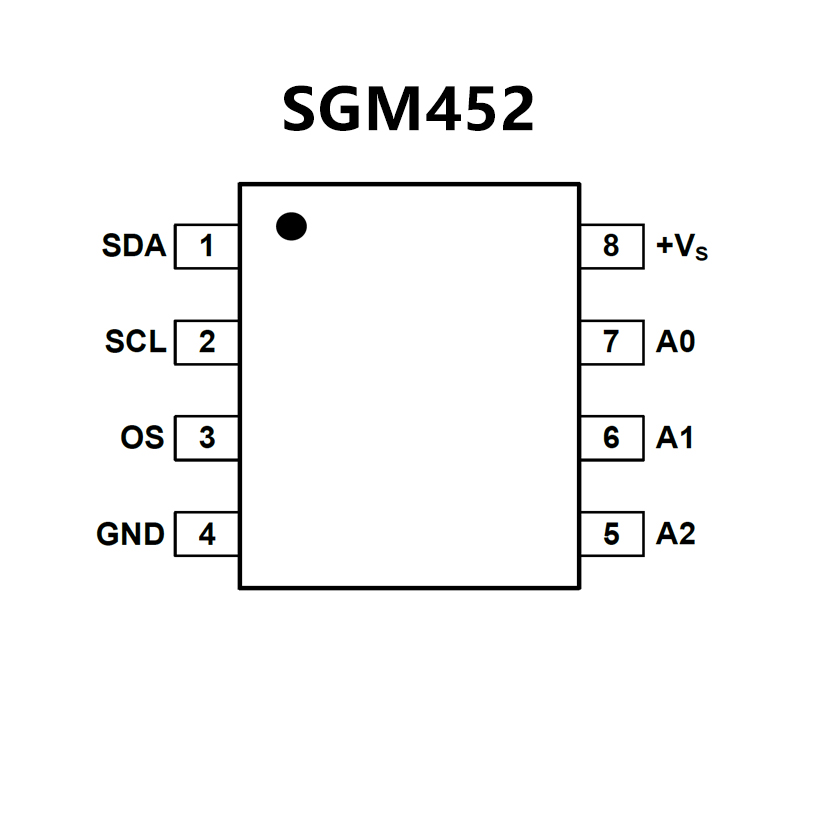

PIN CONFIGUTION
