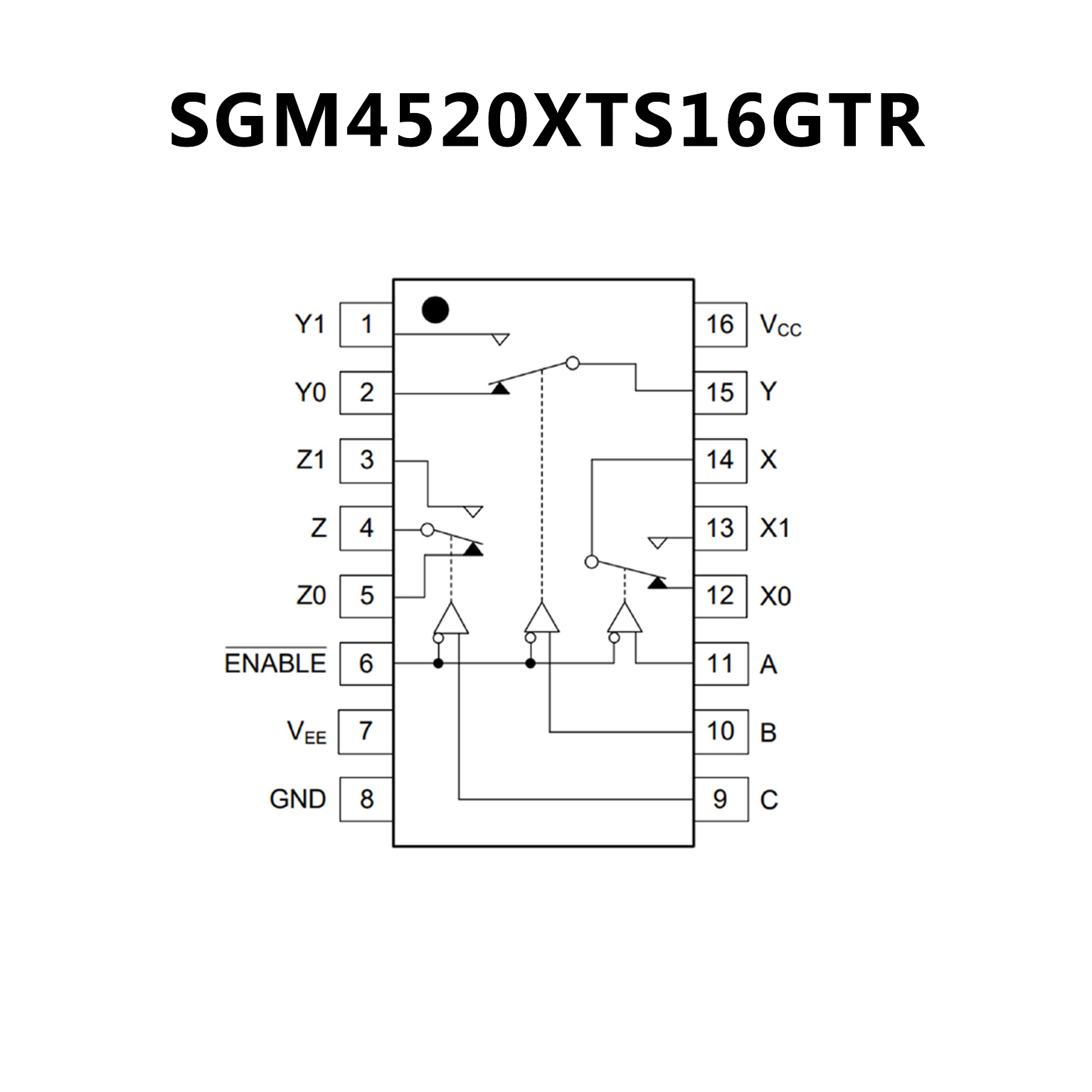

SGM4520.pdf? On-Resistance: 22Ω with Single 36V Supply
? Low Off Leakage Current: 0.01μA (TYP)
? Low On Leakage Current: 0.01μA (TYP)
? ±3.2V to ±18V Dual-Supply Operation
or +3.2V to +36V Single-Supply Operation
? TTL/CMOS-Logic Compatible
? Low Distortion: 0.001% (TYP) (RL = 600Ω, f = 1kHz)
? High Off-Isolation: -82dB (TYP) (RL = 50Ω, f = 1MHz)
? Low Crosstalk: -88dB (TYP) (RL = 50Ω, f = 1MHz)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-16, SSOP-16,
TSSOP-16 and TQFN-3×3-16L Packages

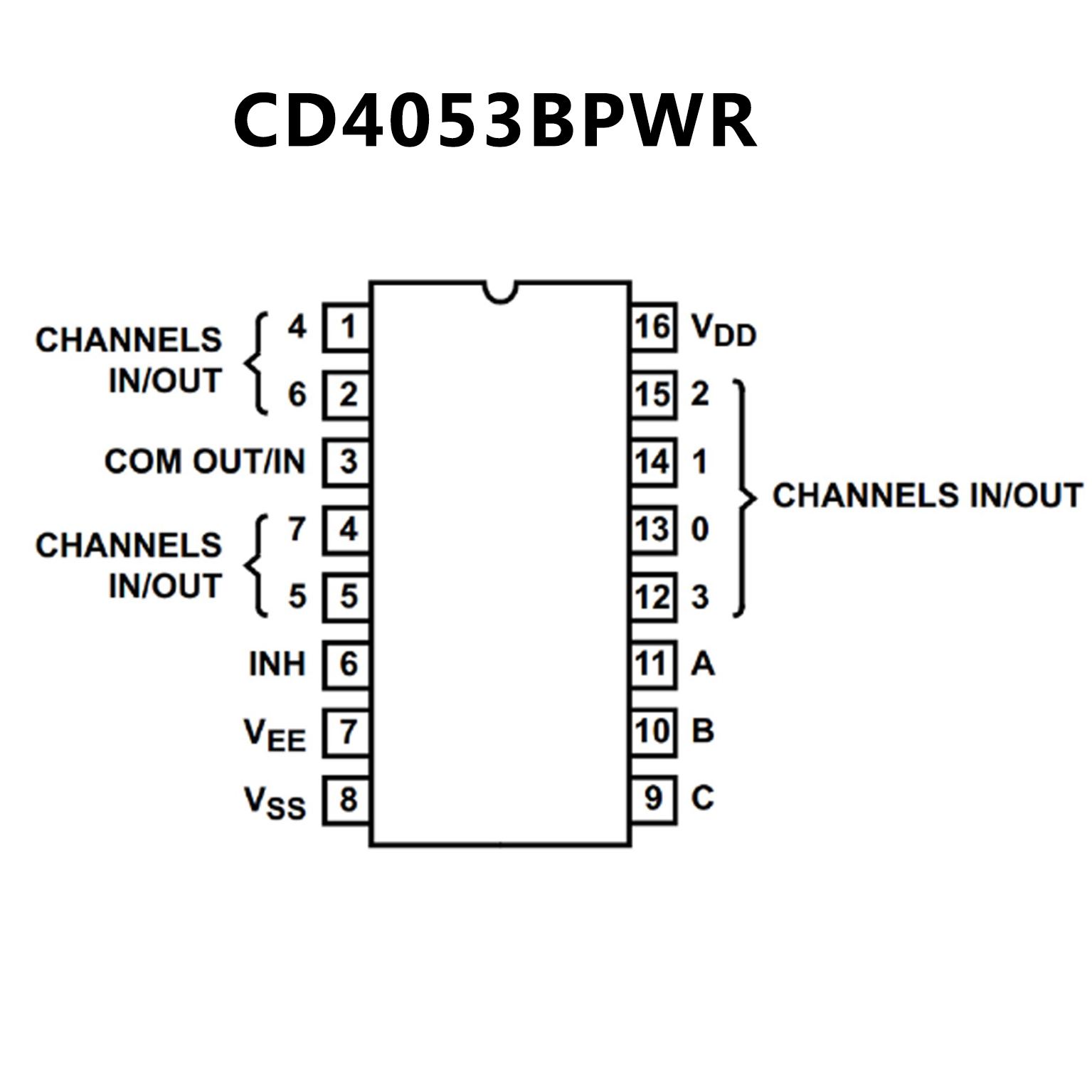

? Wide Range of Digital and Analog Signal Levels
Digital: 3 V to 20 V– Analog: ≤ 20 VP-P
? Low ON Resistance, 125 ? (Typical) Over
15 VP-PSignal Input Range for VDD – VEE = 18 V
? High OFF Resistance, Channel Leakage
of±100 pA (Typical) at VDD – VEE = 18 V
? Logic-Level Conversion for Digital
AddressingSignals of 3 V to 20 V
(VDD – VSS = 3 V to 20 V)to Switch Analog
Signals to 20 VP-P (VDD – VEE =20 V)
Matched Switch Characteristics, rON = 5 ?(Typical)
for VDD – VEE = 15 V Very Low Quiescent
Power Dissipation Under All Digital-Control Input
and Supply Conditions, 0.2 μW (Typical) at
VDD – VSS = VDD – VEE = 10 V
? Binary Address Decoding on Chip
? 5 V, 10 V, and 15 V Parametric Ratings
? 100% Tested for Quiescent Current at 20 V
? Maximum Input Current of 1 μA at 18 V
Over FullPackage Temperature Range,
100 nA at 18 V and25°C
? Break-Before-Make Switching Eliminates ChannelOverlap
