Precision Programmable Reference,SGM432XN3LG Replace TL432AIDBZR.
SGM432XN3LG
SGM432XN3LG.pdf
SGM432XN3LG.pdfFEATURES
? Reference Voltage Tolerance at +25℃:
SGM432: 1% (Standard Grade)
SGM432B: 0.5% (B Grade)
? Adjustable Output Voltage: VREF to 36V
? High Stability under Capacitive Load
? Typical Temperature Drift: 5mV
? Low Output Noise
? Typical Output Impedance: 0.1Ω
? Sink-Current Capability: 1mA to 100mA
? Operating Junction Temperature Range:
-40℃ to +125℃
? Available in Green SOT-89-3, SOT-23 and SOT-23-5
Packages

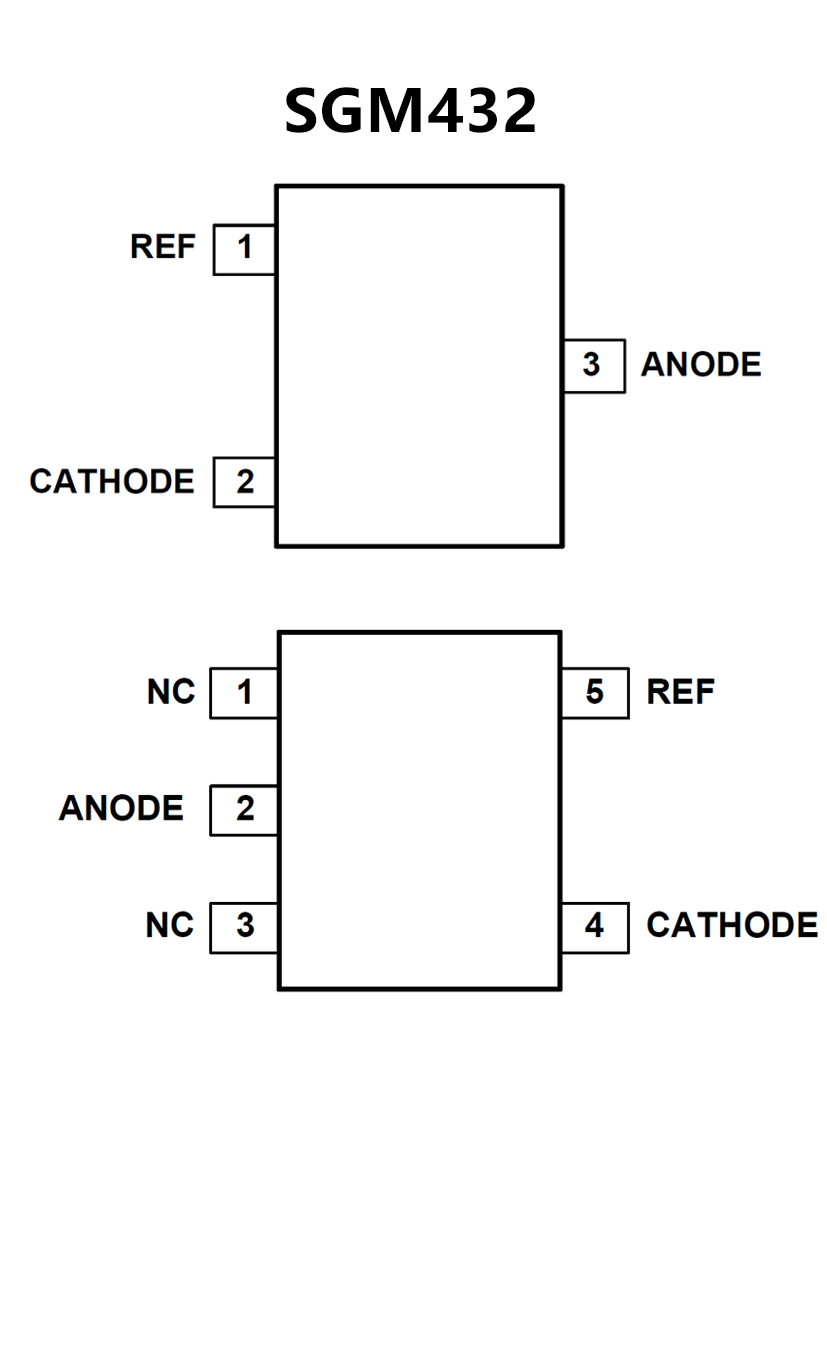

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Reference Voltage Tolerance at 25°C
0.5% (B Grade)
1% (A Grade)
2% (Standard Grade)
? Adjustable Output Voltage: Vref to 36 V
? Operation From ?40°C to 125°C
? Typical Temperature Drift (TL431B)
6 mV (C Temp)
14 mV (I Temp, Q Temp)
? Low Output Noise
? 0.2-Ω Typical Output Impedance
? Sink-Current Capability: 1 mA to 100 mA

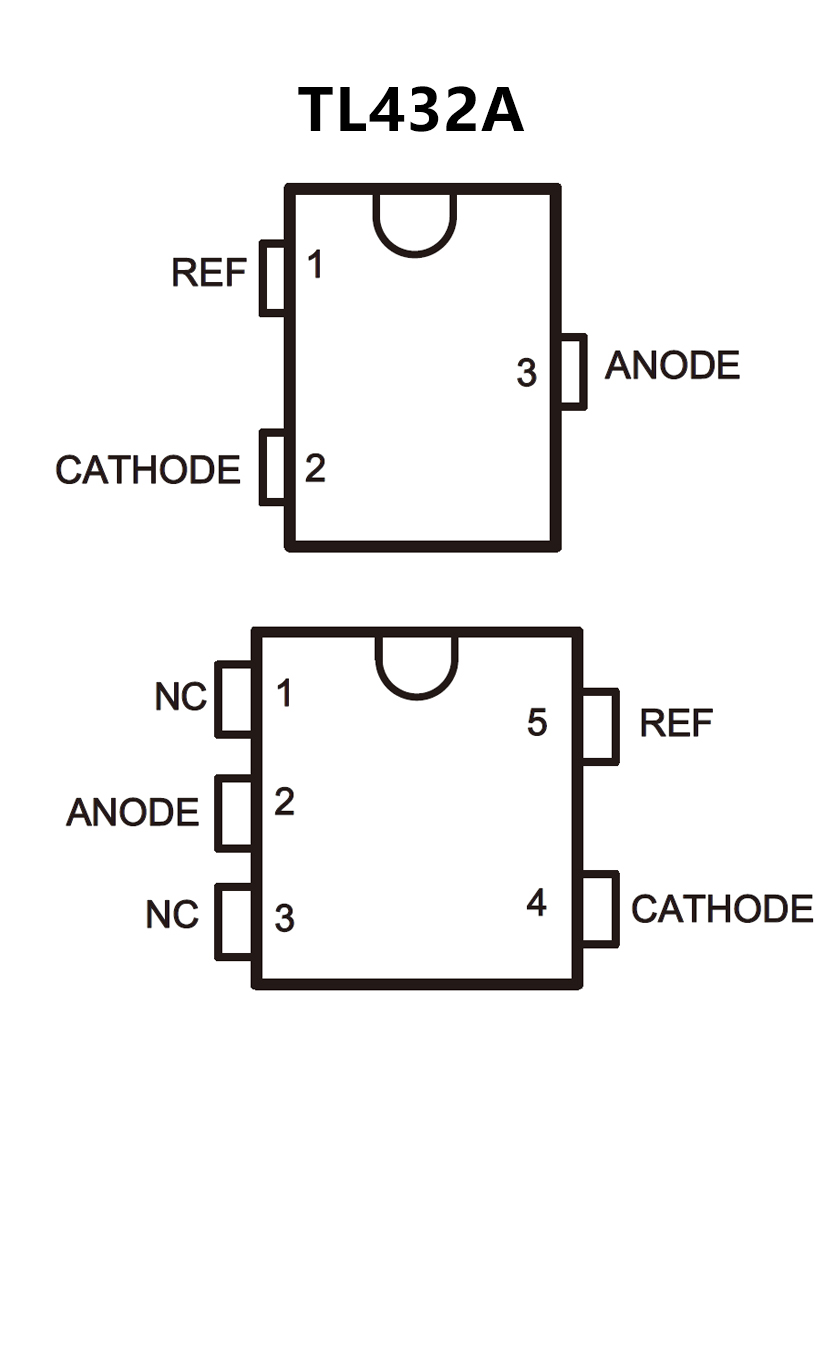

PIN CONFIGUTION
