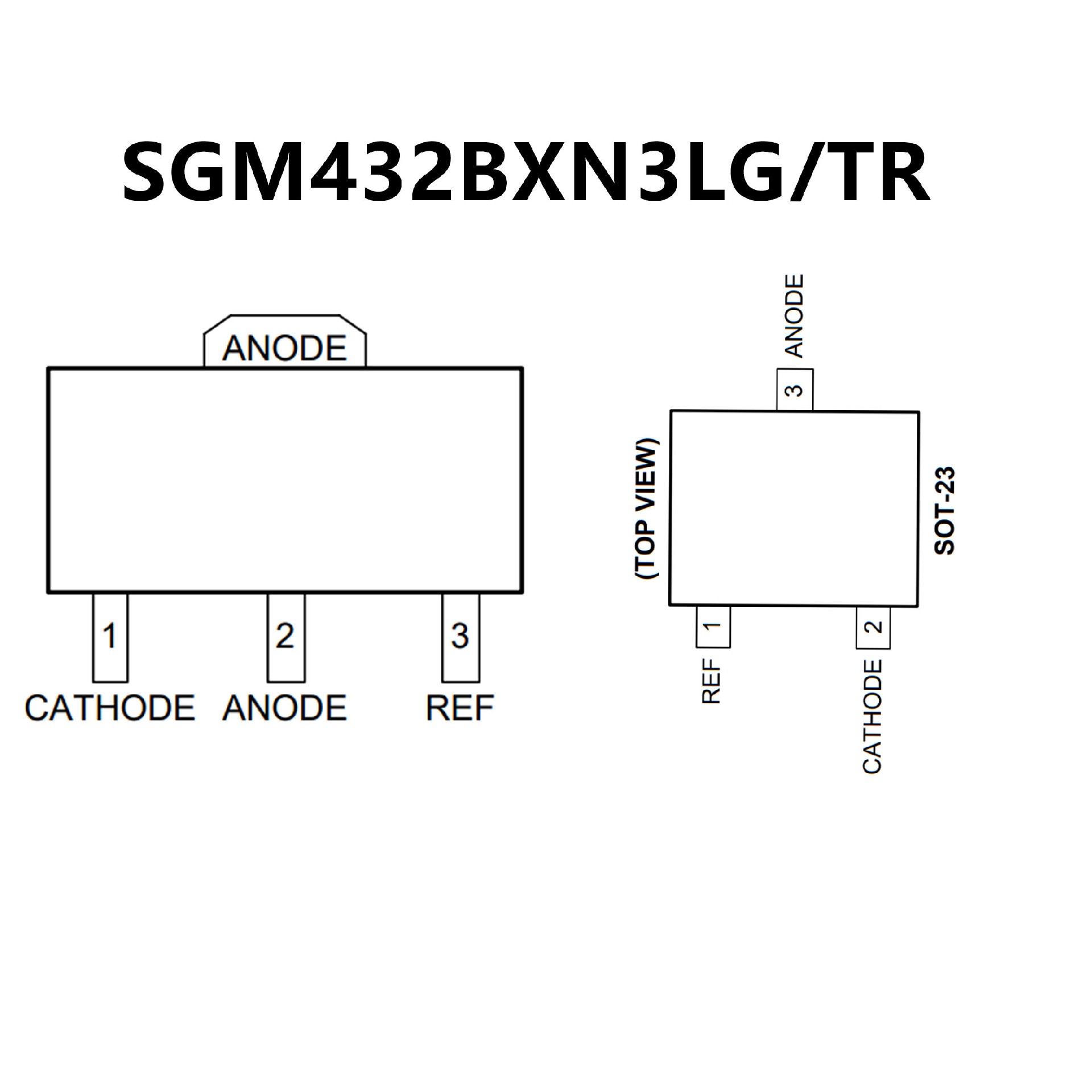

SGM432B.pdf? Reference Voltage Tolerance at +25℃:
SGM432: 1% (Standard Grade)
SGM432B: 0.5% (B Grade)
? Adjustable Output Voltage: VREF to 36V
? High Stability under Capacitive Load
? Typical Temperature Drift: 5mV
? Low Output Noise
? Typical Output Impedance: 0.1Ω
? Sink-Current Capability: 1mA to 100mA
? Operating Junction Temperature
Range:
-40℃ to +125℃
? Available in Green SOT-89-3,
SOT-23 and SOT-23-5
Packages

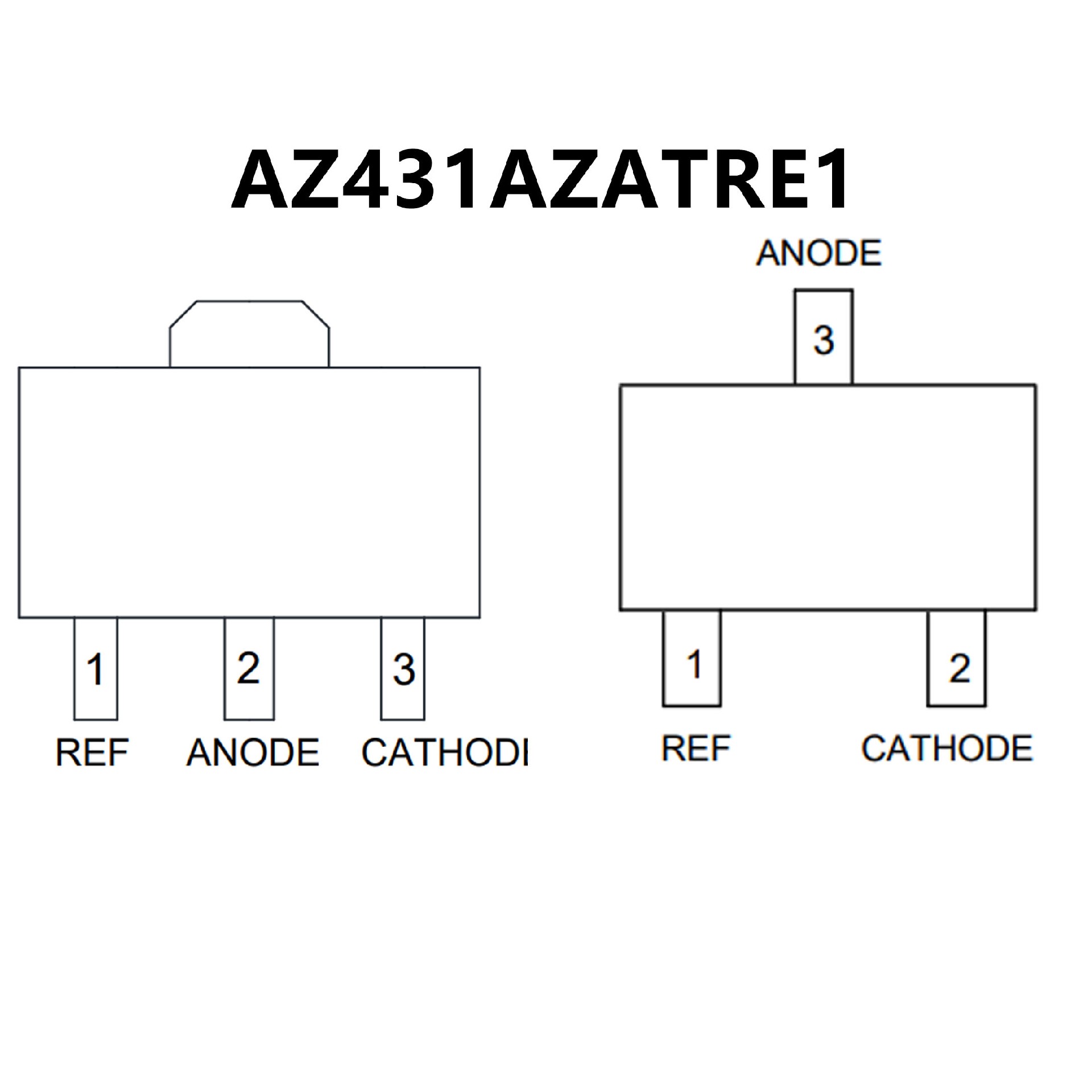

? Programmable Precise Output Voltage from 2.5V to 36V
? High Stability under Capacitive Load
? Low Temperature Deviation: 4.5mV Typical
? Low Equivalent Full-range Temperature
Coefficient with
20PPM/°C Typical
? Sink Current Capacity from 1mA to 100mA
? Low Output Noise
? Wide Operating Range of -40 to +125°C
? Lead-Free Packages: TO92, SOT23, SOT89
? Totally Lead-Free; RoHS Compliant (Notes 1 & 2)
? Lead-Free Packages, Available in “Green”
Molding Compound:
TO92, SOT23
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
