Precision Programmable ReferenceSGM432BXN3LG Replace TLVH431BQDBZR.
SGM432BXN3LG
SGM432BXN3LG.pdf
SGM432BXN3LG.pdfFEATURES
? Reference Voltage Tolerance at +25℃:
SGM432: 1% (Standard Grade)
SGM432B: 0.5% (B Grade)
? Adjustable Output Voltage: VREF to 36V
? High Stability under Capacitive Load
? Typical Temperature Drift: 5mV
? Low Output Noise
? Typical Output Impedance: 0.1Ω
? Sink-Current Capability: 1mA to 100mA
? Operating Junction Temperature Range:
-40℃ to +125℃
? Available in Green SOT-89-3, SOT-23 and SOT-23-5
Packages
PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Programmable output voltage up to 18 V
? Three different reference voltage tolerances:
? Standard grade: 1.5 %
? A-Grade: 1 %
? D-Grade: 0.75 %
? Typical temperature drift: 4 mV (in a
range of -40 ℃ up to 125 ℃)
? Low output noise
? Typical output impedance: 0.1Ω
? Sink current capability: 0.08 mA to 70 mA
? AEC-Q100 qualified (grade 1)

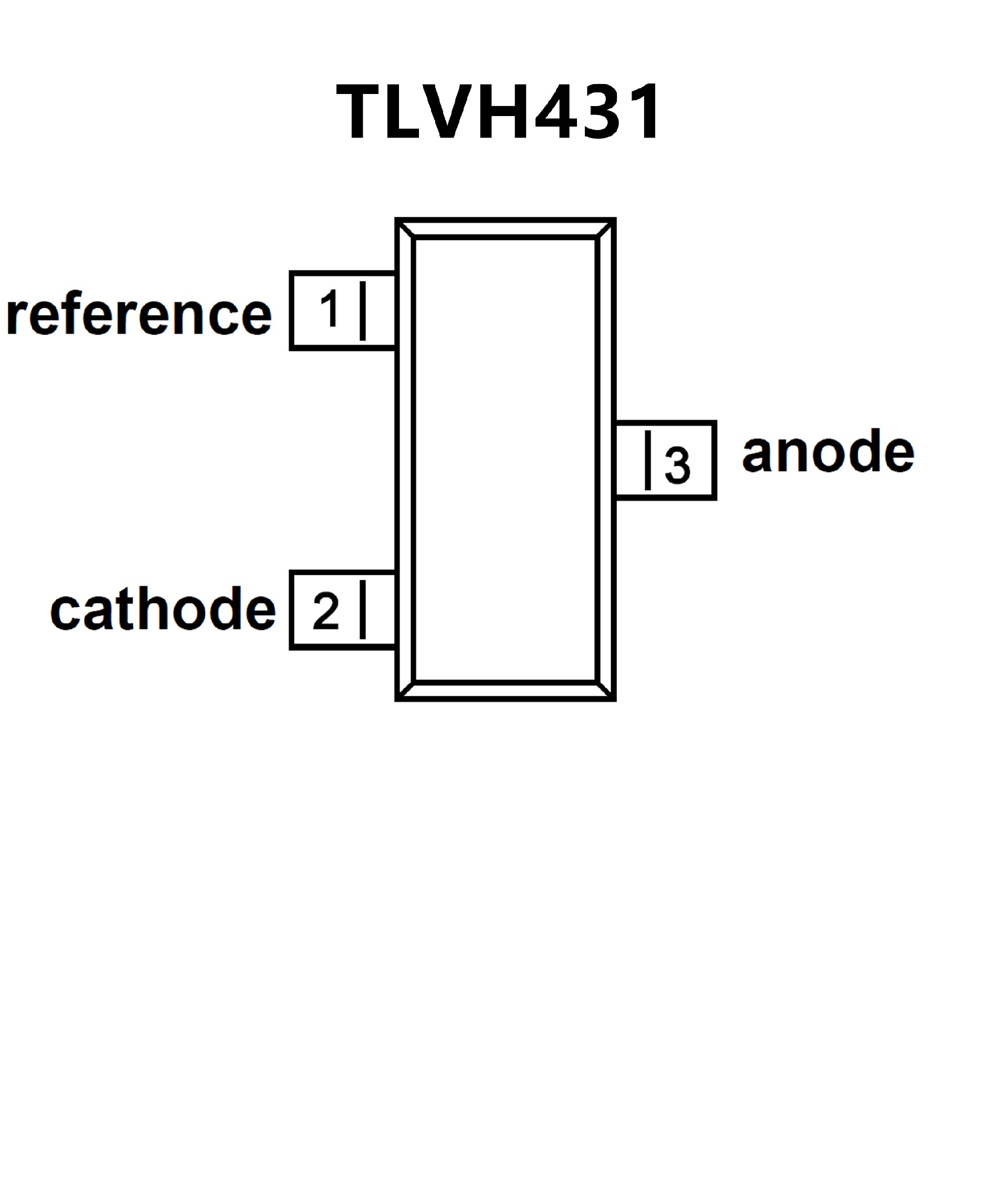

PIN CONFIGUTION
