SGM432BQ.pdf? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? Adjustable Output Voltage: VREF to 36V
? Sink-Current Capability: 1mA to 100mA
? ▲Reference Voltage Tolerance at +25℃: 0.5%
? Temperature Drift: 5mV (TYP)
? Output Impedance: 0.1Ω (TYP)
? ▲High Stability under Capacitive Load
? Low Output Noise
? Operating Junction Temperature Range:
-40℃ to +125℃

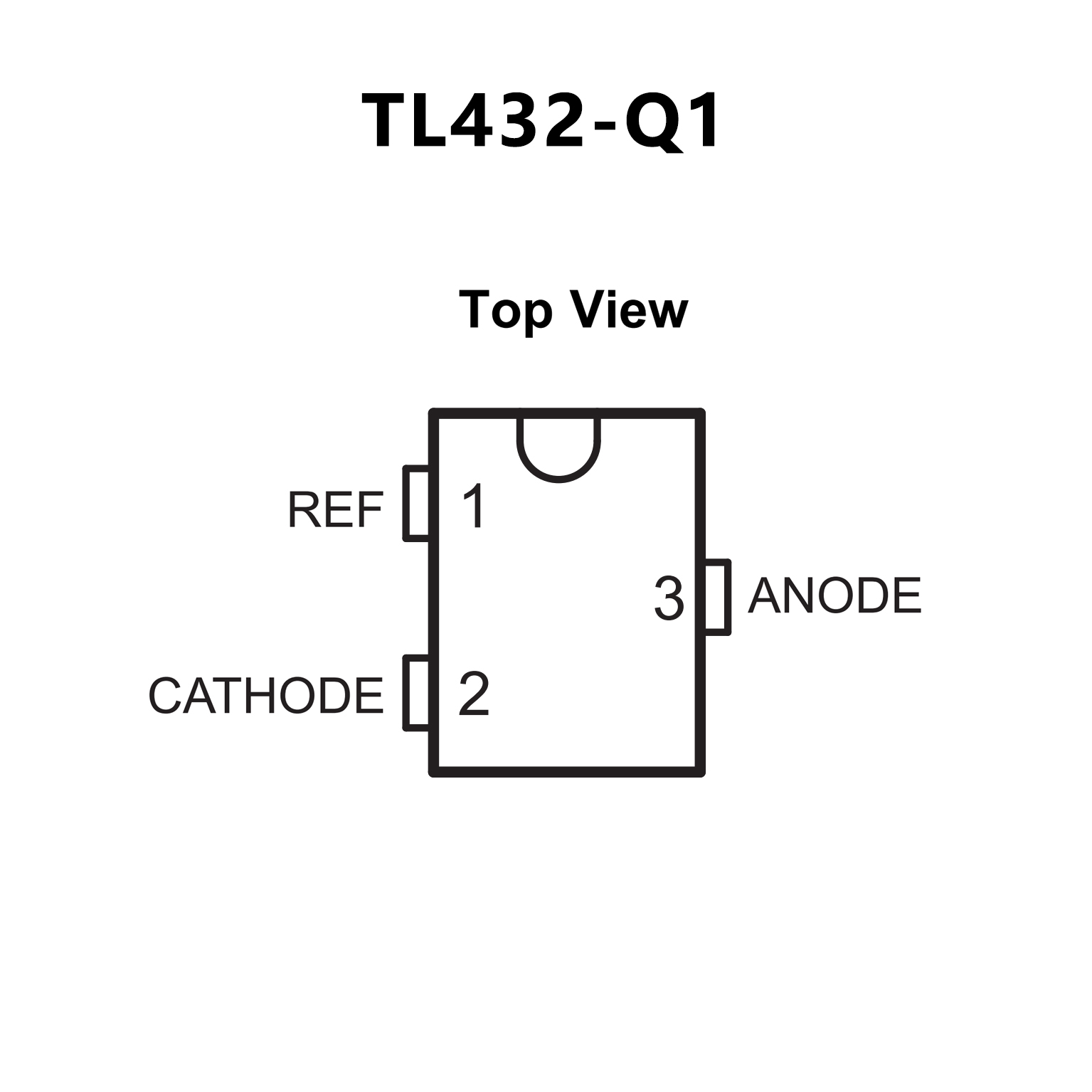

? Available in a Green SOT-23 Package
? Qualified for automotive applications
? AEC-Q100 test guidance with the following:
Device temperature grade 1: –40°C to 125°C
ambient operating temperature range
? Reference voltage tolerance at 25°C:
1% (A Grade)
0.5% (B Grade)
? Typical temperature drift:
14 mV (Q Temp)
? Low output noise
? 0.2-Ω Typical output impedance
? Sink-current capability: 1 mA to 100 mA
? Adjustable output voltage: VREF to 36 V
