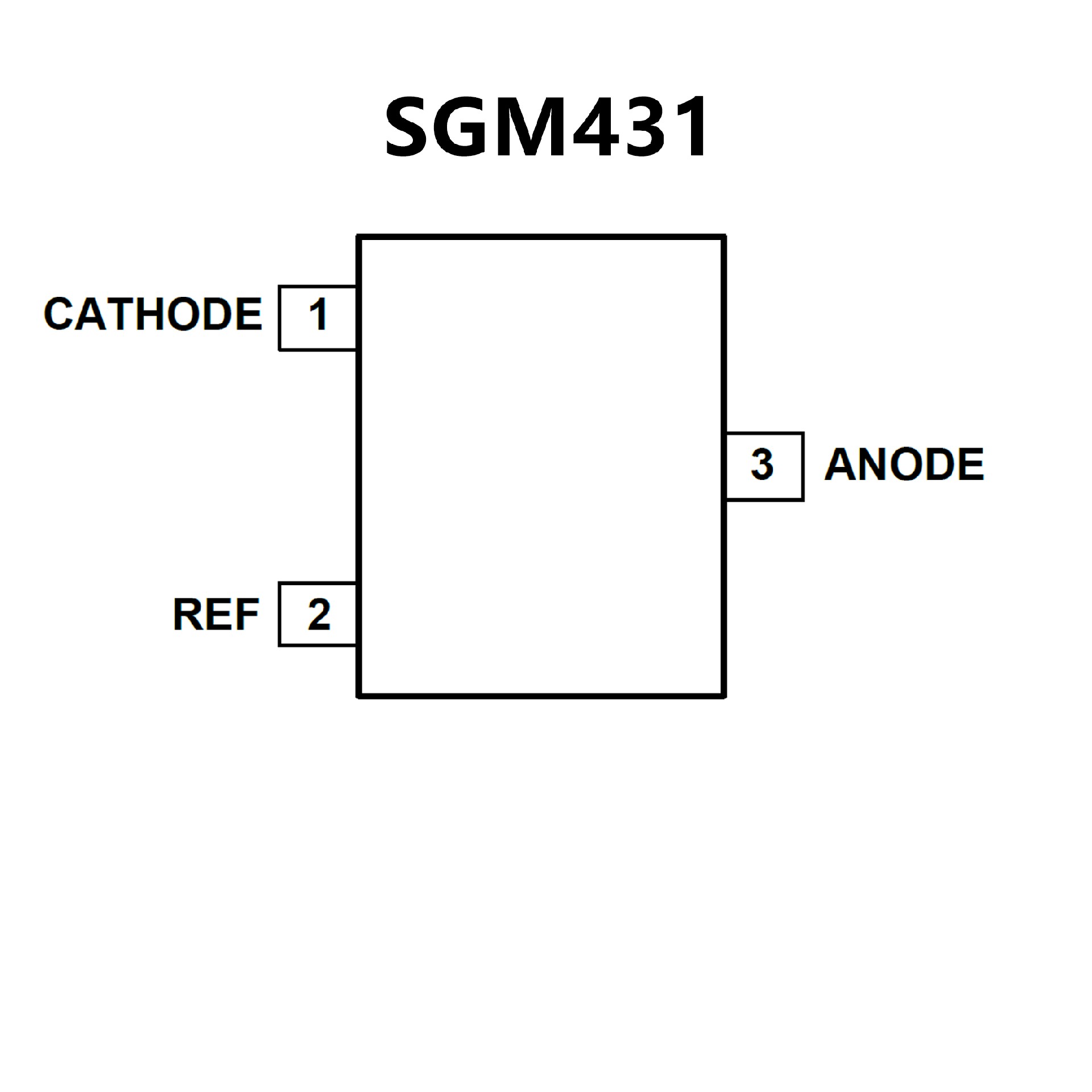

SGM431BXN3LG.pdf? Reference Voltage Tolerance at +25℃:
SGM431: 1% (Standard Grade)
SGM431B: 0.5% (B Grade)
? Adjustable Output Voltage: VREF to 36V
? High Stability under Capacitive Load
? Typical Temperature Drift: 5mV
? Low Output Noise
? Typical Output Impedance: 0.1Ω
? Sink-Current Capability: 1mA to 100mA
? Operating Junction Temperature Range:
-40℃ to +125℃
? The SGM431 is available in Green SOIC-8, SOT-23,
SOT-89-3, SOT-23-5 and SC70-6 Packages
? The SGM431B is available in Green SOIC-8, SOT-23,
SOT-89-3 and SOT-23-5 Packages

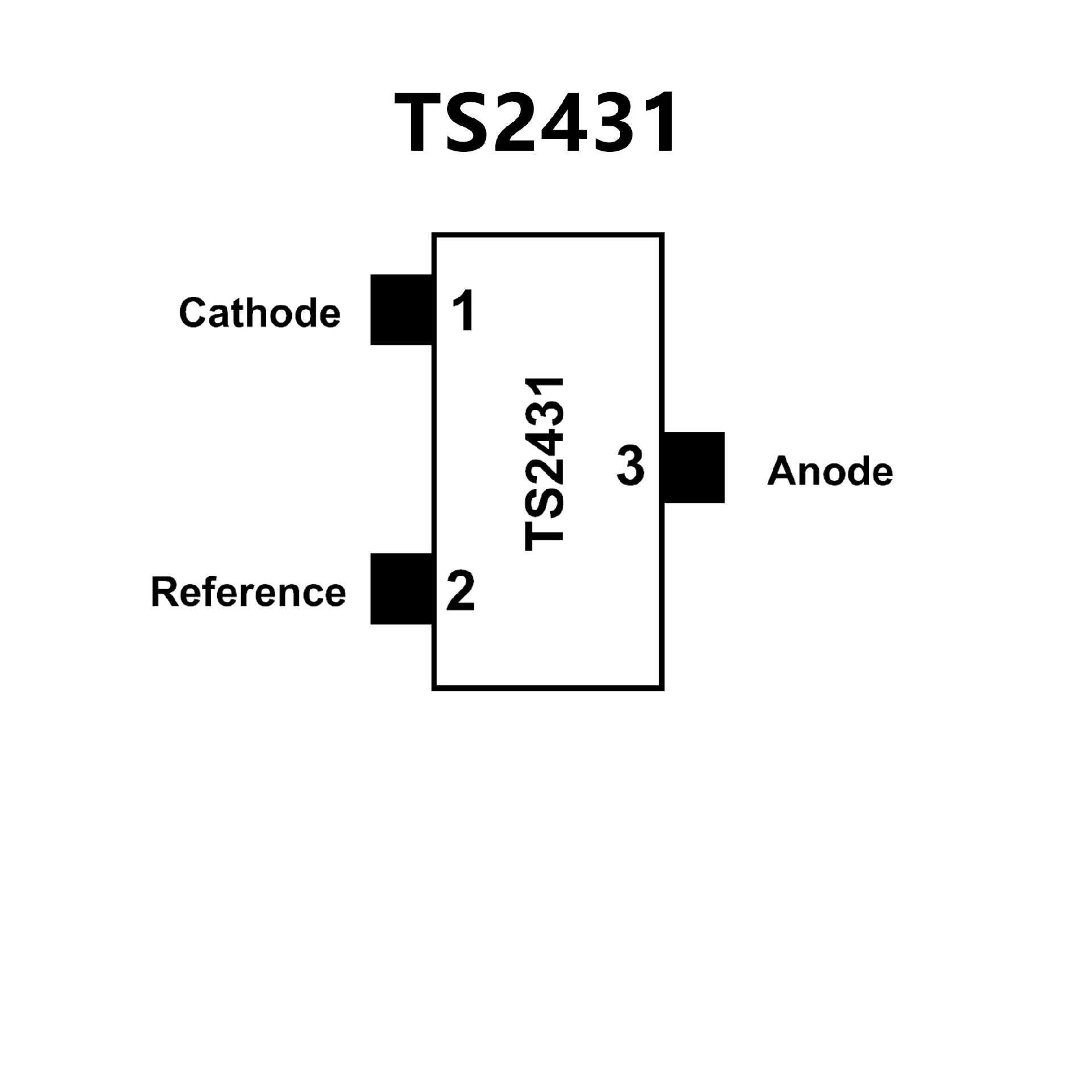

? Adjustable output voltage: 2.5 to 24 V
? Precision selection at 25 °C: ± 2%, ± 1% and
± 0.5%
? Sink current capability: 1 to 100 mA
? Industrial temperature range: - 40 to + 105°C
? Performance compatible with industrystandard
TL431
