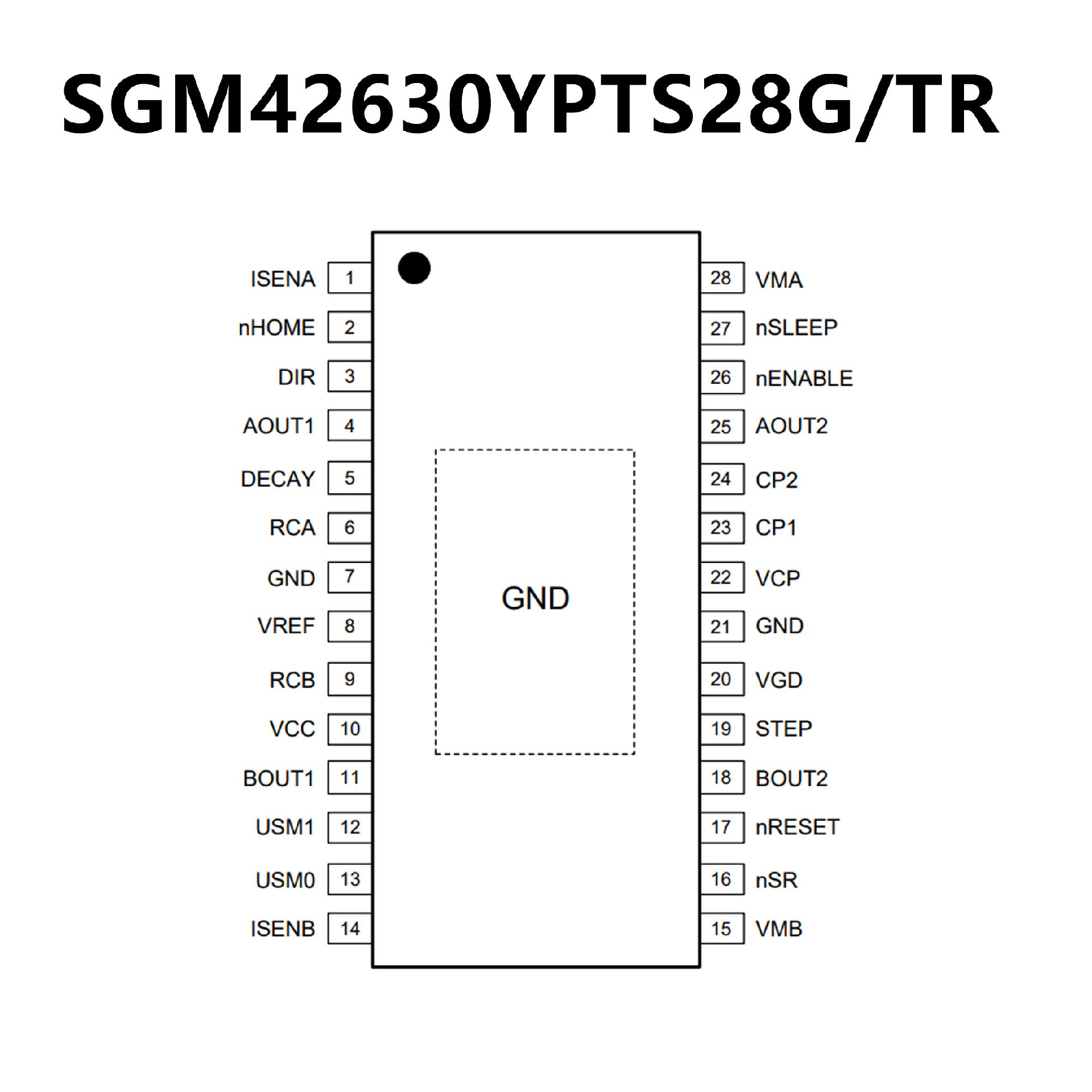

SGM42630.pdf? 8V to 35V Motor Power Supply Voltage Range
? PWM with Up to 2.6A Current per Winding
? Low On-Resistance (0.29Ω for HS + LS, @ +25℃)
? Microstepping Indexer: 1, 1/2, 1/4 and 1/8
? Step and Direction Interface
? Programmable Decay, Blanking and Off-Time
? Auto-Decay Mode
? UVLO for VM, VCC, VCP, VGD Voltages
? Over-Current Protection (OCP)
? Thermal Shutdown (TSD)
? Available in a Green TSSOP-28 (Exposed Pad)
? Pulse Width Modulation (PWM)

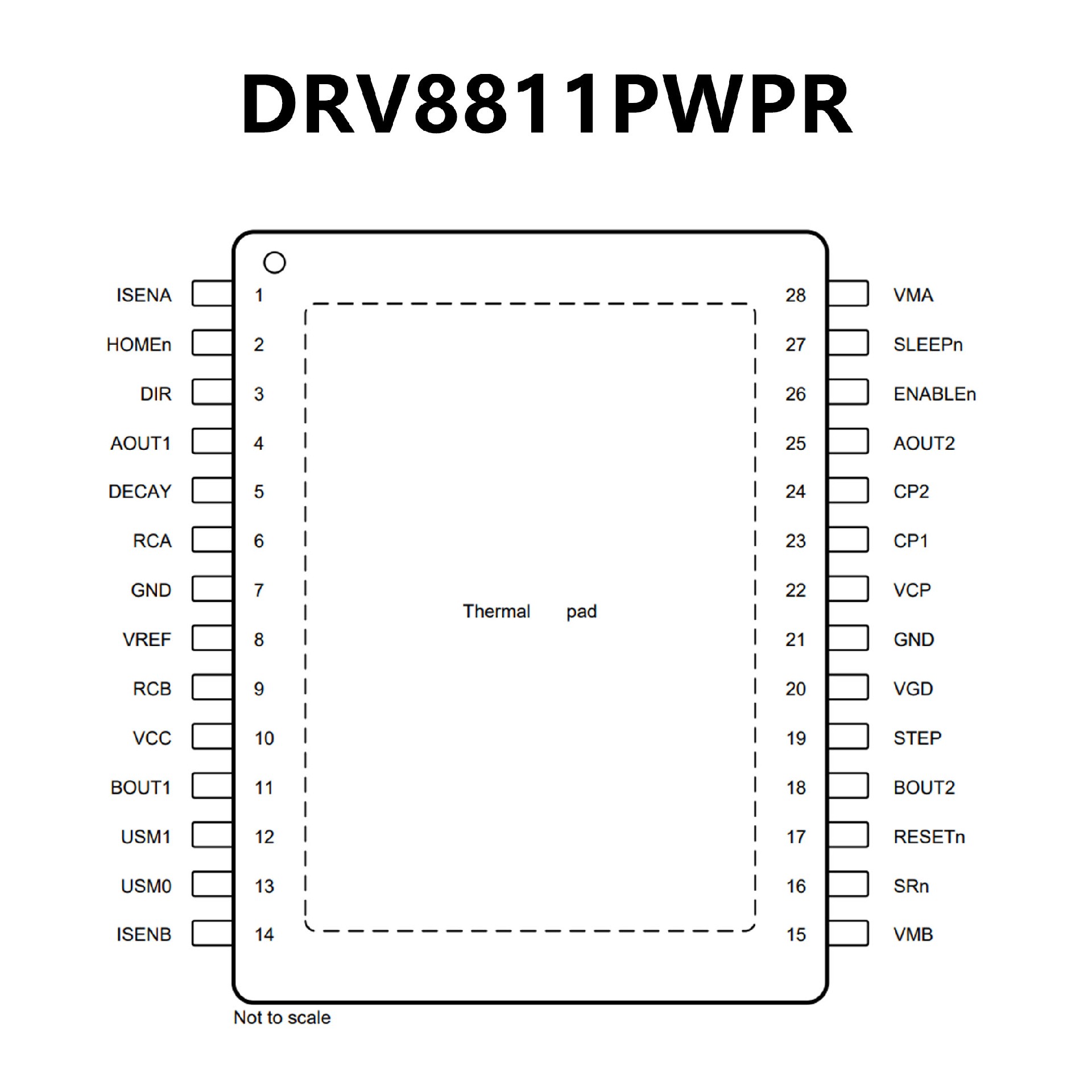

MicrosteppingMotor Driver
Up to 1/8-Step Microstepping Indexer
Step and Direction Control
Programmable Mixed Decay, Blanking, andOff-Time
? Up to 1.9-A Current Per Winding
? Low 1.0-? (HS+LS) MOSFET RDS(on) (25°C)
? 8-V to 38-V Operating Supply Voltage Range
? Pin-to-Pin Compatible With the DRV8818
? Thermally Enhanced Surface Mount Package
? Protection Features:
VM Undervoltage Lockout (UVLO)
Overcurrent Protection (OCP)
Thermal Shutdown (TSD)
