3.6 A Brushed DC Motor Driver With Internal Current Sense (PWM Control)，Replace DRV8871-Q1
SGM42500Q.pdf優(yōu)勢(shì)替代
FEATURES
? Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results
Device Temperature Grade 1: –40°C to
125°C Ambient Operating Temperature Range
Device HBM ESD Classification Level 2
Device CDM ESD Classification Level C4B
Drives One DC Motor, One Winding of a
Stepper Motor, or Other Loads
? Wide 6.8-V to 45-V Operating Voltage
? 565-mΩ Typical RDS(on) (HS + LS)
? 3.6-A Peak Current Drive
? PWM Control Interface
? Current Regulation Without a Sense Resistor
? Low-Power Sleep Mode
? Small Package and Footprint
8-Pin HSOP With PowerPAD?
4.9 × 6 mm
? Integrated Protection Features
VM Undervoltage Lockout (UVLO)
Overcurrent Protection (OCP)
Thermal Shutdown (TSD)
Automatic Fault Recovery

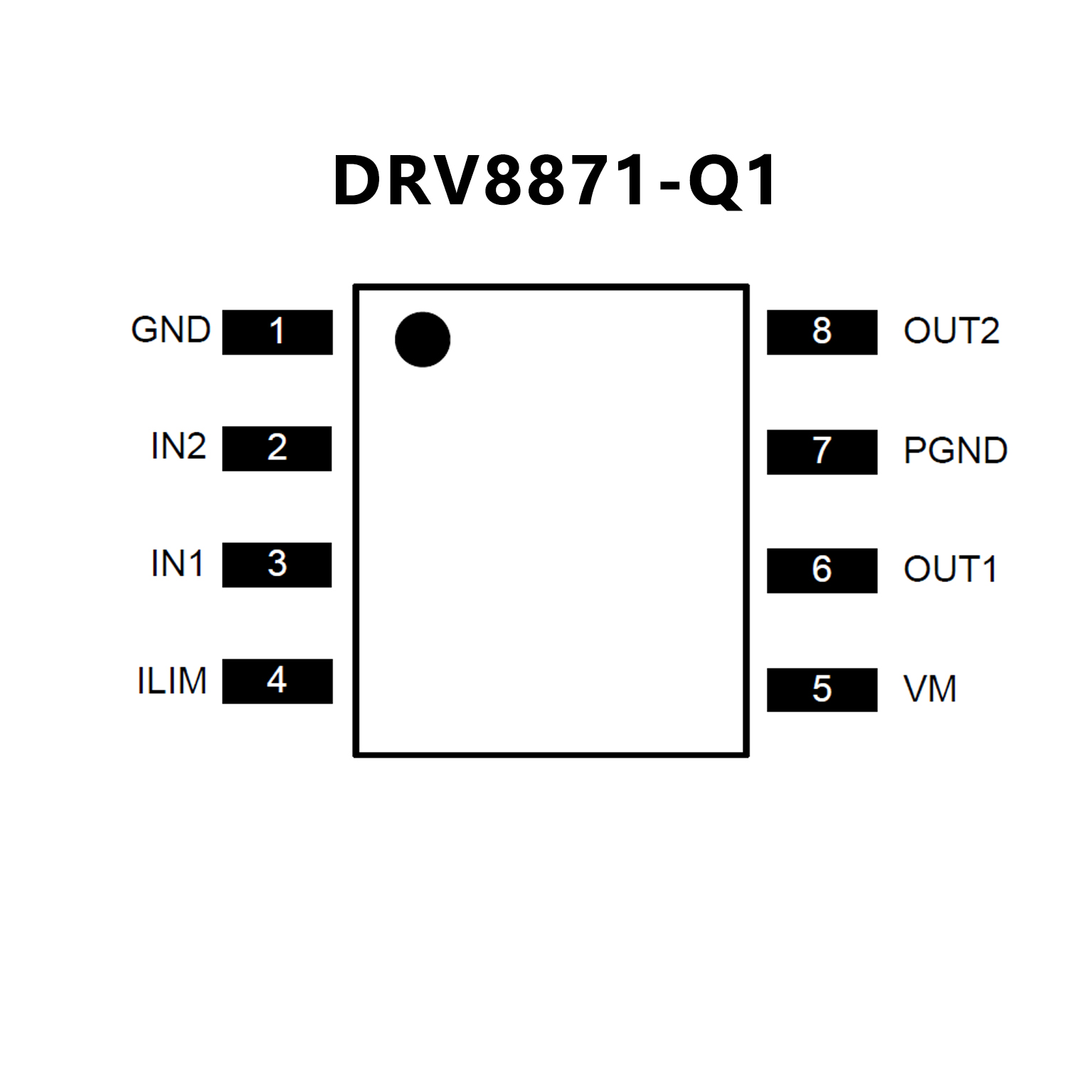

PIN CONFIGUTION
