Double channel high side driver with analog current sense for 24 V automotive applications
SGM42202Q.pdf優勢替代
FEATURES
? GeneralVery low standby current
3.0 V CMOS compatible input
Optimized electromagnetic emission
Very low electromagnetic susceptibility
Compliant with European directive2002/95/EC
Fault reset standby pin (FR_Stby)
? Diagnostic functions
Proportional load current sense
High current sense precision for wide range currents
Off-state open-load detection
Output short to VCC detection
Overload and short to ground latch-off
Thermal shutdown latch-off
Very low current sense leakage
? Protection
Undervoltage shutdown
Overvoltage clamp
Load current limitation
Self limiting of fast thermal transients
Protection against loss of ground and loss of VCC
Thermal shutdown
Electrostatic discharge protection

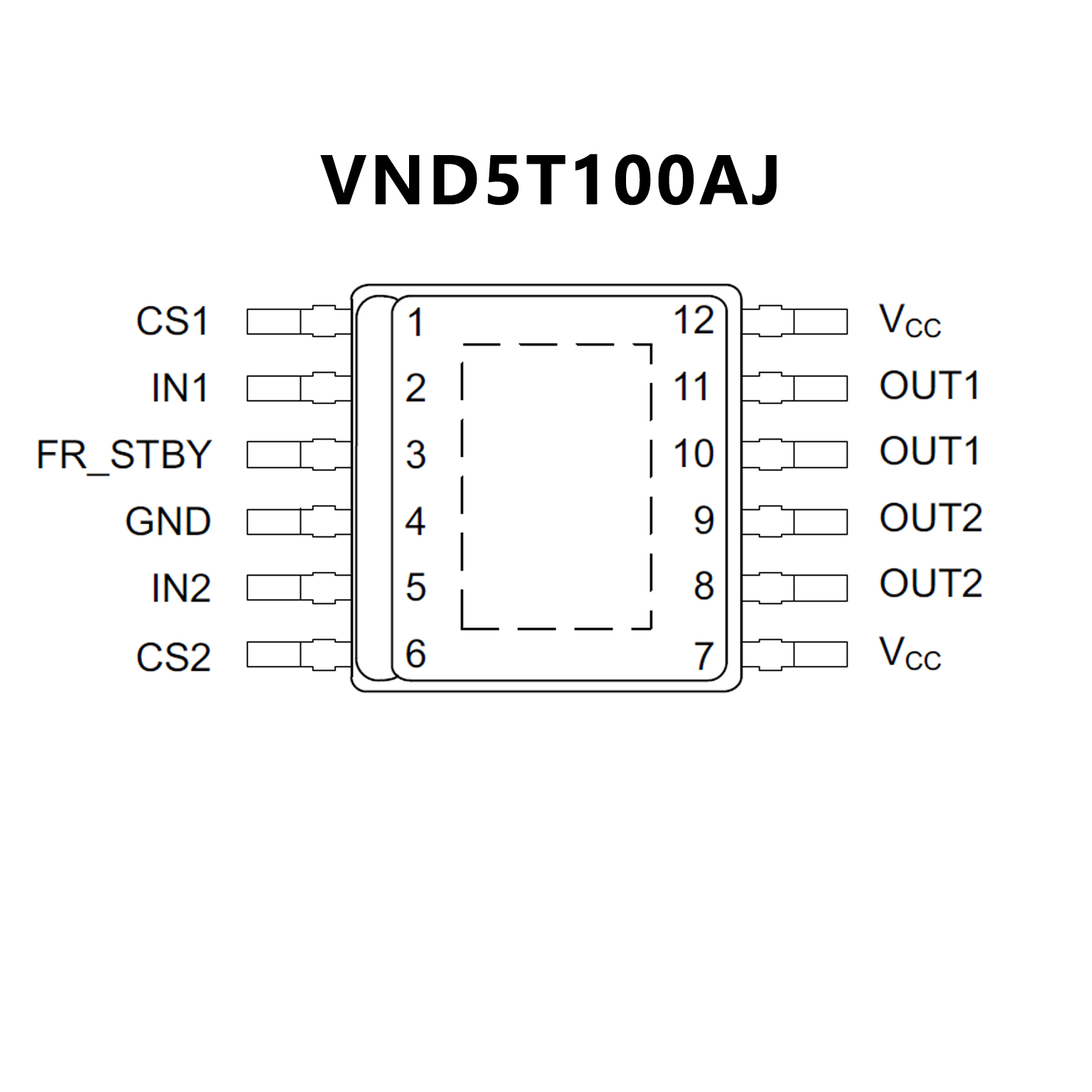

PIN CONFIGUTION
