Low Noise, Low Drift,Precision Voltage Reference, SGM4029-2.5 Replace REF5025.
SGM4029-2.5
SGM4029-2.5.pdf
SGM4029-2.5.pdfFEATURES
? Low Temperature Drift:
5ppm/℃ (TYP), 10ppm/℃ (MAX)
? High Accuracy: ±0.05% (TYP), ±0.1% (MAX)
? Low Noise: 3μVPP/V
? Excellent Long-Term Stability:
50ppm/1000 hour (TYP) First 1000 Hours
25ppm/1000 hour (TYP) Second 2000 Hours
? High Output Current: ±10mA
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

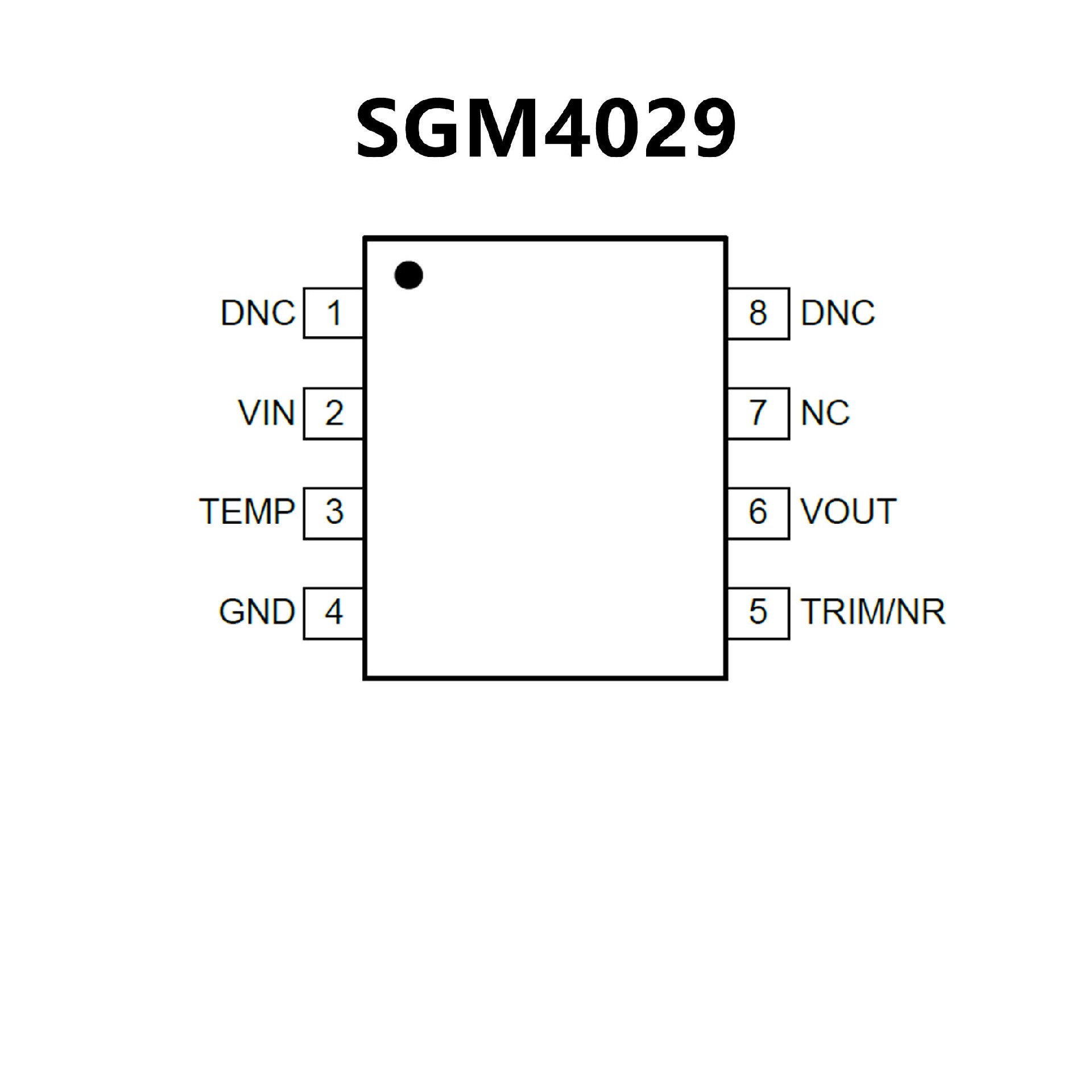

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Low temperature drift:
High-grade: 3 ppm/°C (Max)
Standard-grade: 8 ppm/°C (Max)
? High Accuracy:
High-grade: 0.05% (Max)
Standard-rade: 0.1% (Max)
? Low noise: 3 μVPP/V
? Excellent long-term stability:
50 ppm/1000 hr (Typ) First 1000 hours
(VSSOP)
25 ppm/1000 hr (Typ) Second 2000 hours
(VSSOP)
? High-Output Current: ±10 mA
? Temperature range: –40°C to 125°C

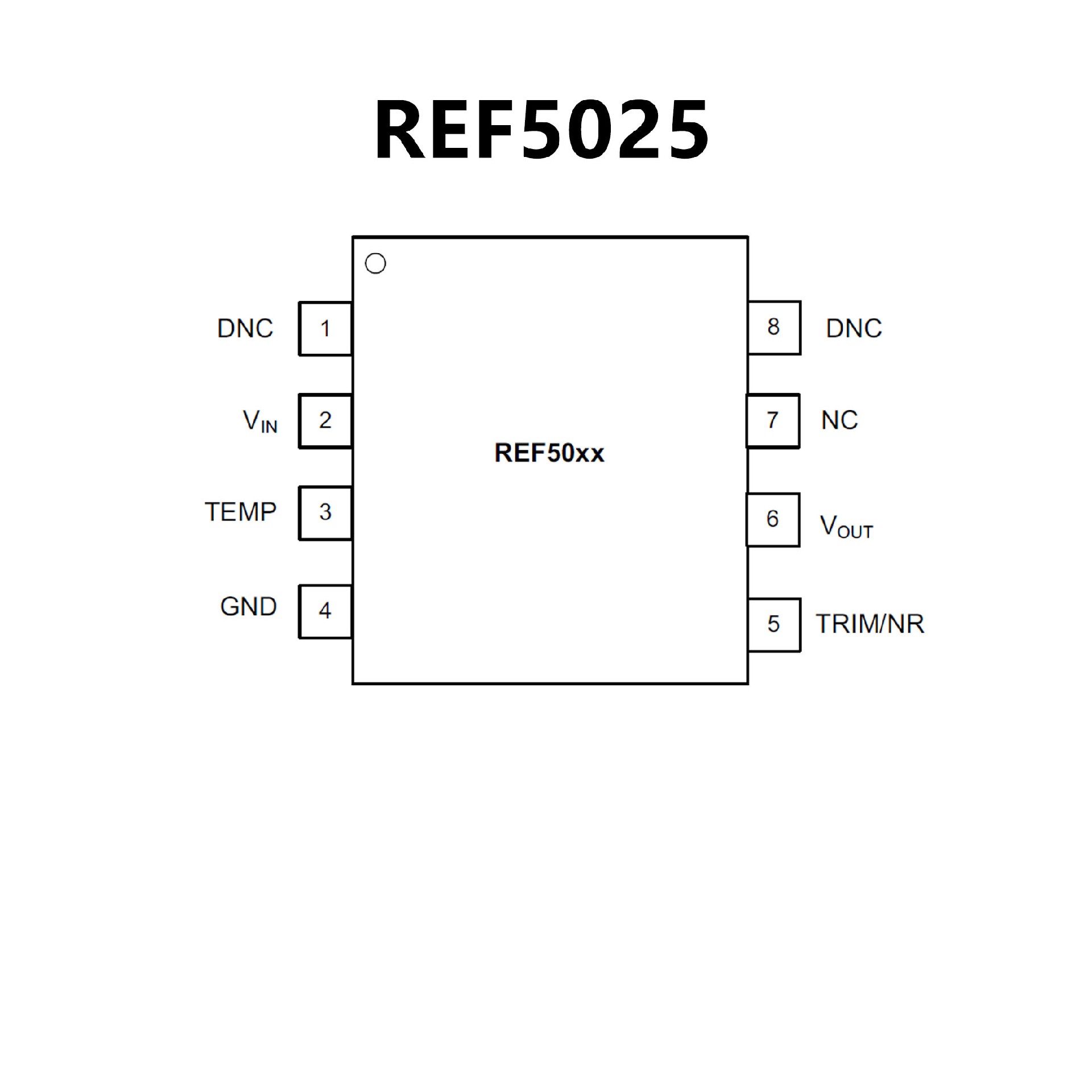

PIN CONFIGUTION
