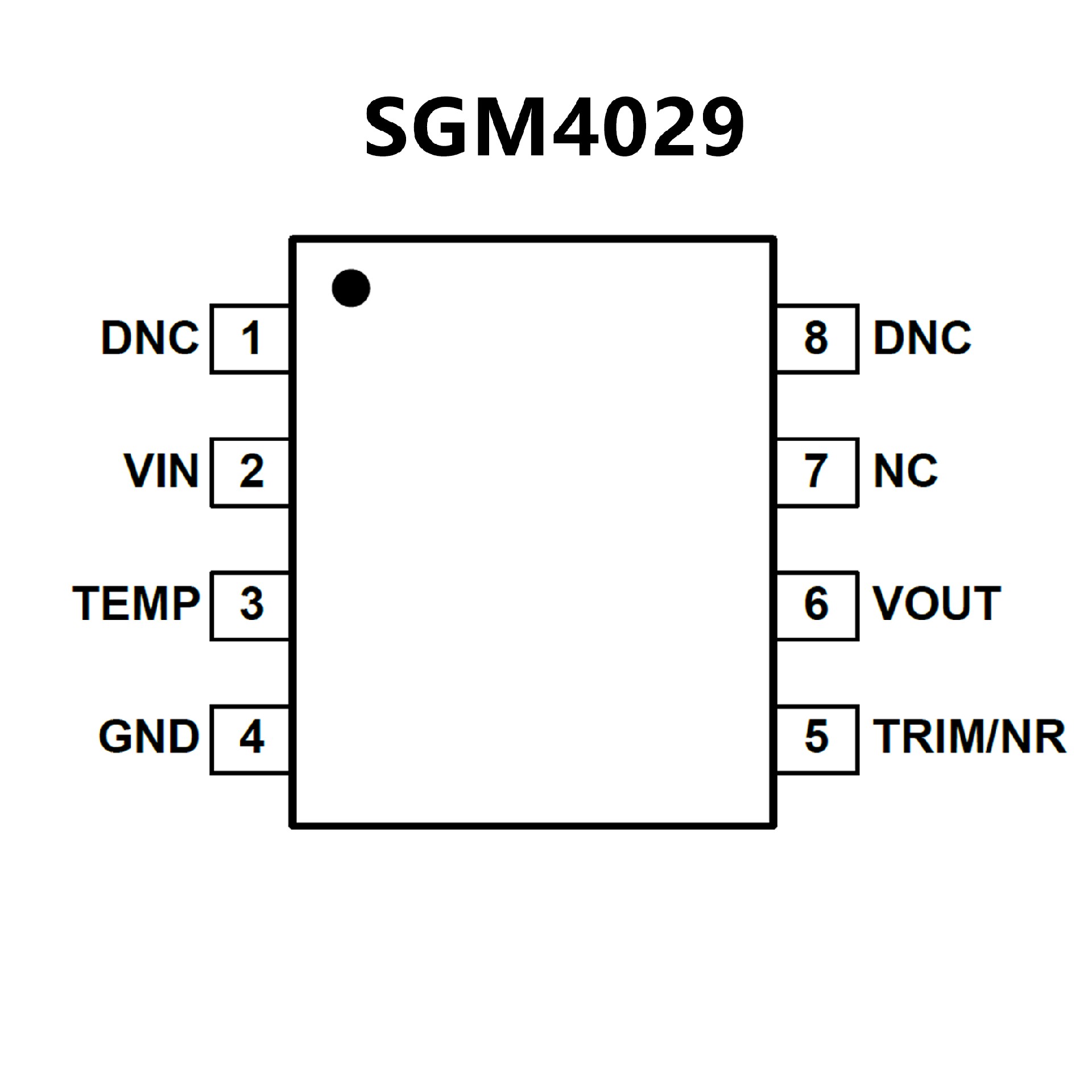

SGM4029-2.5.pdf? Low Temperature Drift:
-40℃ to +125℃: 5ppm/℃ (TYP), 10ppm/℃ (MAX)
0℃ to +85℃: 2ppm/℃ (TYP), 5ppm/℃ (MAX)
? High Accuracy: ±0.05% (TYP), ±0.1% (MAX)
? Low Noise: 5μVP-P/V
? High Output Current: ±10mA
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

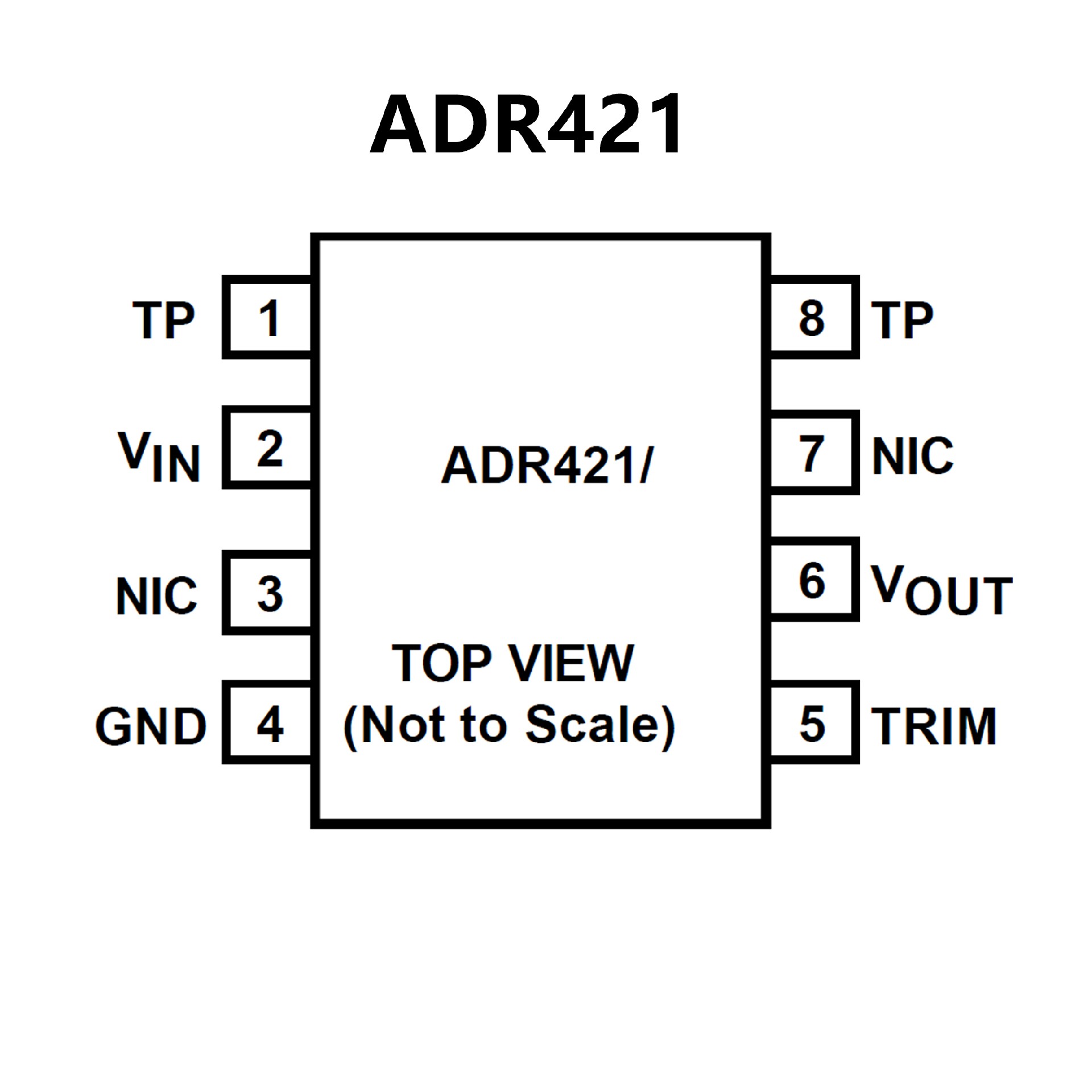

? Low noise (0.1 Hz to 10 Hz)
ADR420: 1.75 μV p-p
ADR421: 1.75 μV p-p
ADR423: 2.0 μV p-p
ADR425: 3.4 μV p-p
? Low temperature coefficient: 3 ppm/°C
? Long-term stability: 50 ppm/1000 hours
? Load regulation: 70 ppm/mA
? Line regulation: 35 ppm/V
? Low hysteresis: 40 ppm typical
? Wide operating range
ADR420: 4 V to 18 V
ADR421: 4.5 V to 18 V
ADR423: 5 V to 18 V
ADR425: 7 V to 18 V
? Quiescent current: 0.5 mA maximum
? High output current: 10 mA
? Wide temperature range: ?40°C to +125°C
