Quad, Wide-Bandwidth SPDT Video Analog Switch,SGM330A-YS Replace PI3B3257WEX.
SGM330A-YS
SGM330A-YS.pdf
SGM330A-YS.pdfFEATURES
? Wide Bandwidth: 500MHz
? Low On-Resistance: 12Ω (TYP)
? Low Crosstalk: -60dB at 10MHz (TYP)
? Power Supply Voltage Range: 2.7V to 5.5V
? Fast Switching Time
? Rail-to-Rail Operation
? Typical Power Consumption (ICC = 0.1μA)
? TTL/CMOS Compatible
? Micro Size Packages
SOIC-16
TSSOP-16
SSOP-16

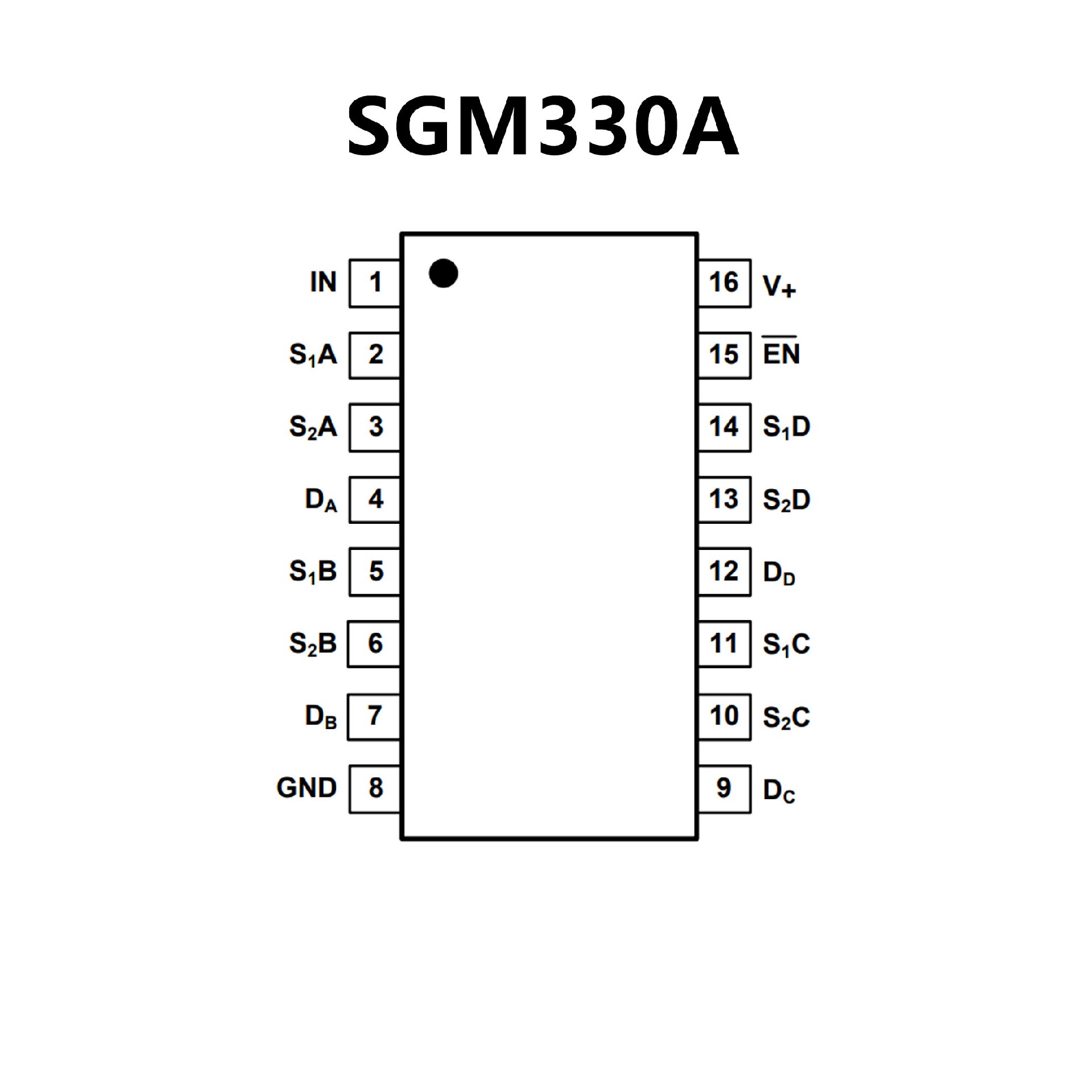

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Near-Zero propagation delay
? 5Ω switches connect inputs to outputs
? Fast Switching Speed: 4.8ns max.
? Ultra-Low Quiescent Power: 0.1μA typical
Ideally suited for notebook applications
? Pin compatible with 74 series 257 logic devices
? Packaging (Pb-free & Green avaliable):
16-pin, QSOP (Q)
16-pin, SOIC (W)
16-pin, TSSOP (L)
16-pin, UQFN (ZHD)

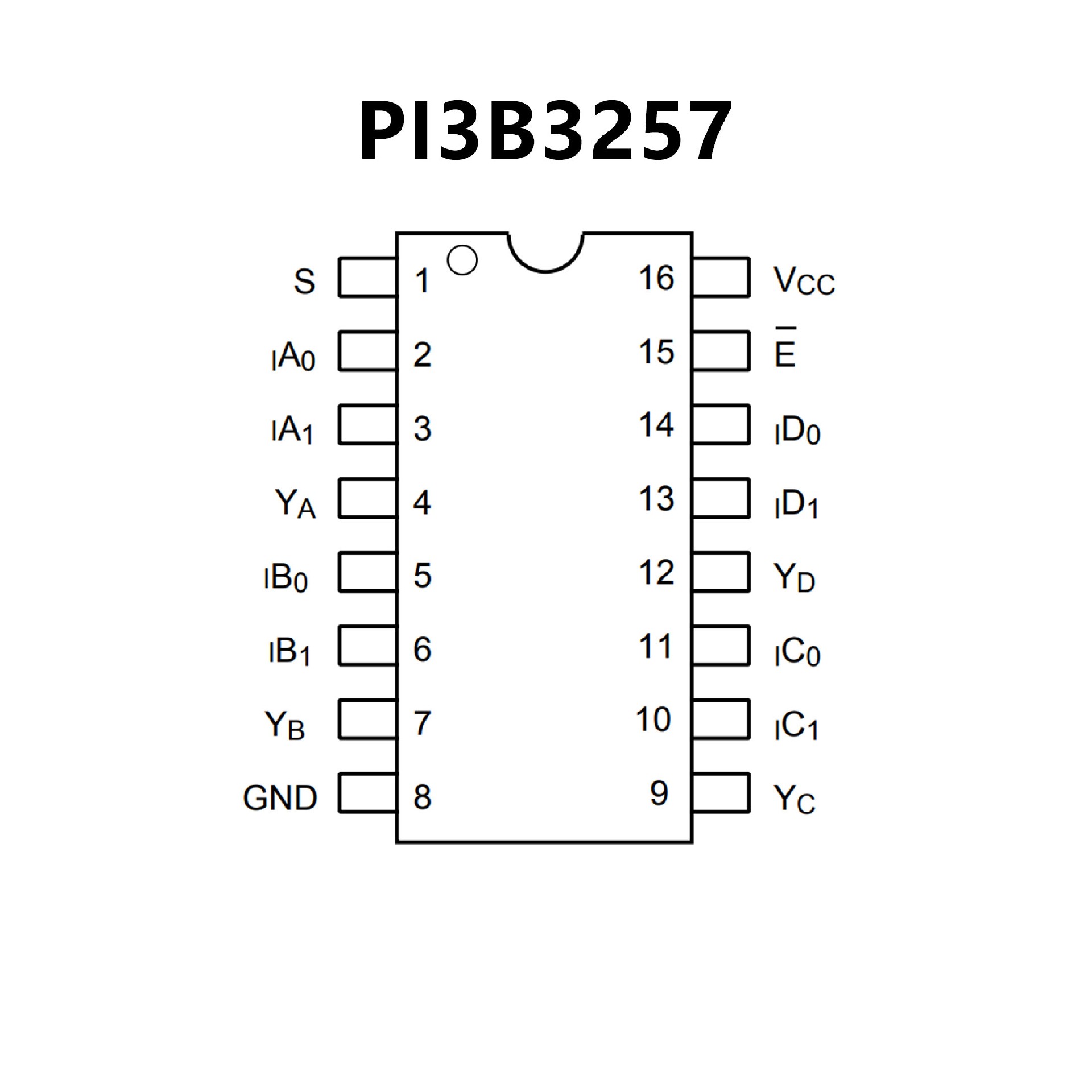

PIN CONFIGUTION
