4.5Ω, Low Voltage SPDT Analog Switch in 6-Pin SC70, SGM3157 Replace TS5A3157DBVR.
SGM3157
SGM3157.pdf
SGM3157.pdfFEATURES
? Supply Voltage Range: 1.8V to 5.5V
? On-Resistance: 4.5Ω (TYP) at 5.0V
? Fast Switching Times
tON 20ns
tOFF 15ns
? High Bandwidth: 300MHz
? High Off-Isolation: -51dB at 10MHz
? Rail-to-Rail Operation
? TTL/CMOS Compatible
? Break-Before-Make Switching
? Extended Industrial Temperature Range:
-40℃ to +85℃
? Available in Green SC70-6 Package

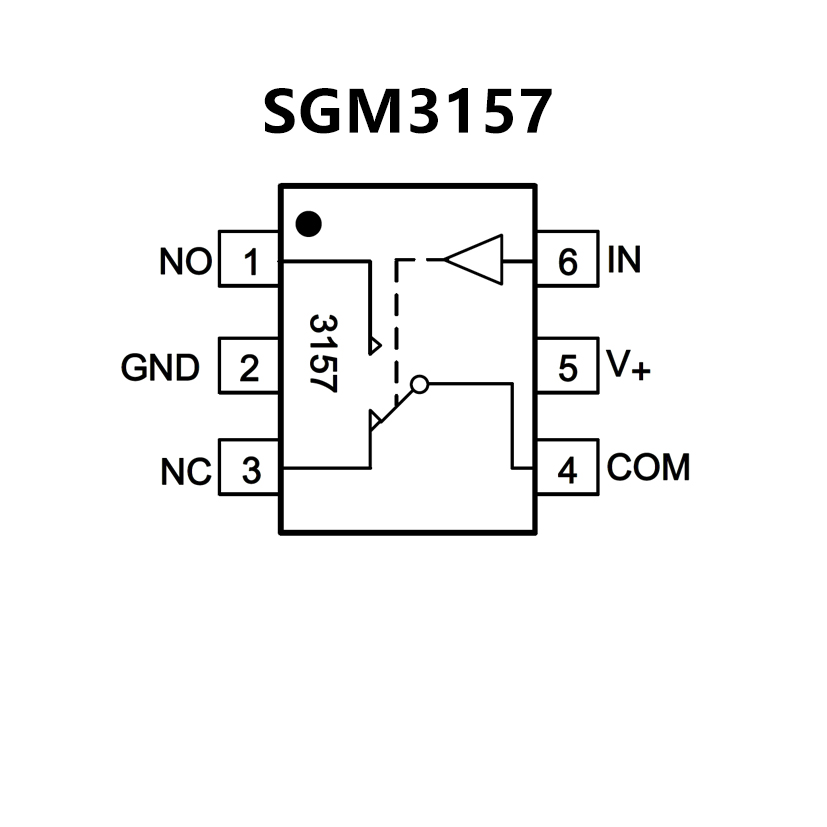

PIN CONFIGUTION
優勢替代
FEATURES
? Low ON-State Resistance (10 ?)
? Control Inputs Are 5-V Tolerant
? Low Charge Injection
? Excellent ON-State Resistance Matching
? Low Total Harmonic Distortion (THD)
? 1.65-V to 5.5-V Single-Supply Operation
? Latch-Up Performance Exceeds 100
mA Per JESD 78, Class II
? ESD Performance Tested Per JESD 22
2000-V Human-Body Model
(A114-B, Class II)
1000-V Charged-Device Model (C101)

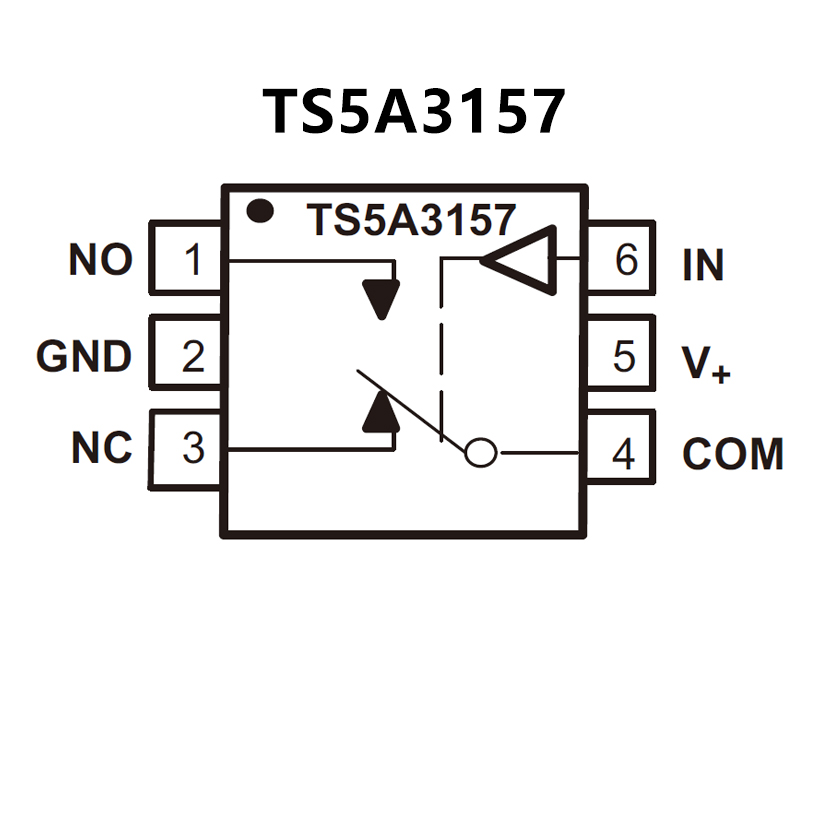

PIN CONFIGUTION
