Dual Operational Amplifier, SGM2904 Replace LMC6032.
SGM2904
SGM2904.pdf
SGM2904.pdfFEATURES
? Wide Input Common Mode and DifferentialVoltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? High Input Impedance
? Low Offset Voltage: 4mV (MAX)
? Low Noise: 40nV/ Hz at 1kHz
? Gain-Bandwidth Product: 2MHz
? Slew Rate: 0.6V/μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages
PIN CONFIGUTION
優勢替代
FEATURES
? Specified for 2 kΩ and 600 Ω Loads
? High Voltage Gain: 12 dB
? Low Offset Voltage Drift: 2.3 μV/°C
? Ultra Low Input Bias Current: 40 fA
? Input Common-mode Range Includes V?
? Operating Range From +5V to +15V Supply
? ISS = 400 μA/Amplifier; Independent of V+
? Low Distortion: 0.01% at 10 kHz
? Slew Rate: 1.1 V/μs
? Improved Performance Over TLC272

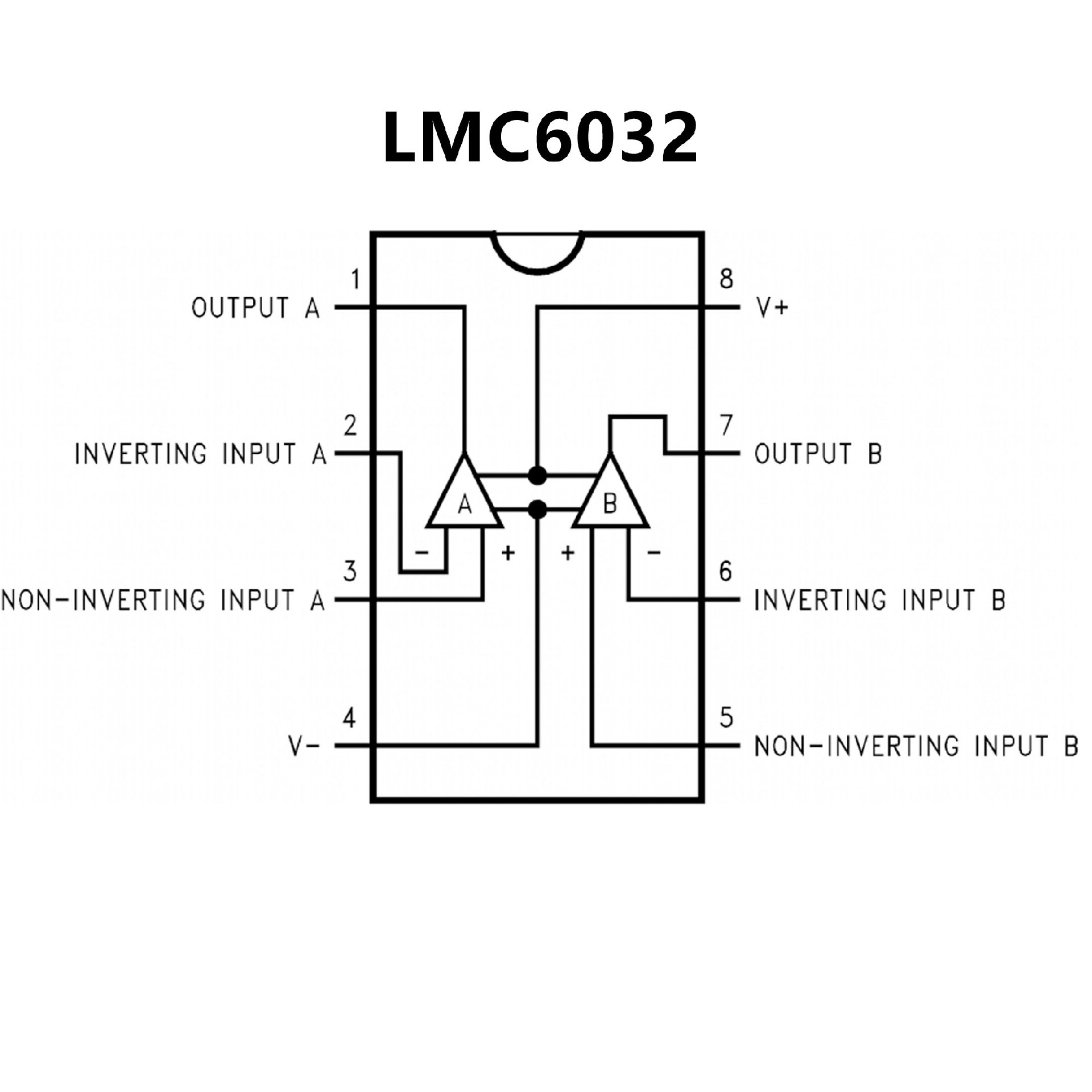

PIN CONFIGUTION
